Load the prepared ration
Place evenly mixed feed in the hopper without exceeding the ordered capacity.
ELECTRIC LIVESTOCK FEEDINGRequest a quote: AN-NYSLC-2 / AN-NYSLC-3 →Chat with Sales EngineerRead Operating Instructions ↓

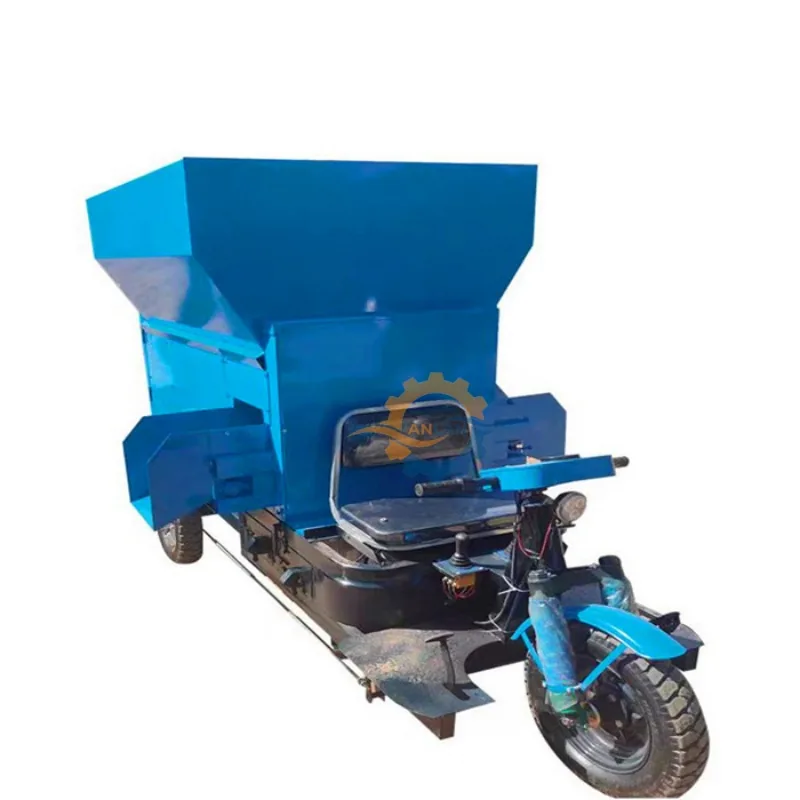

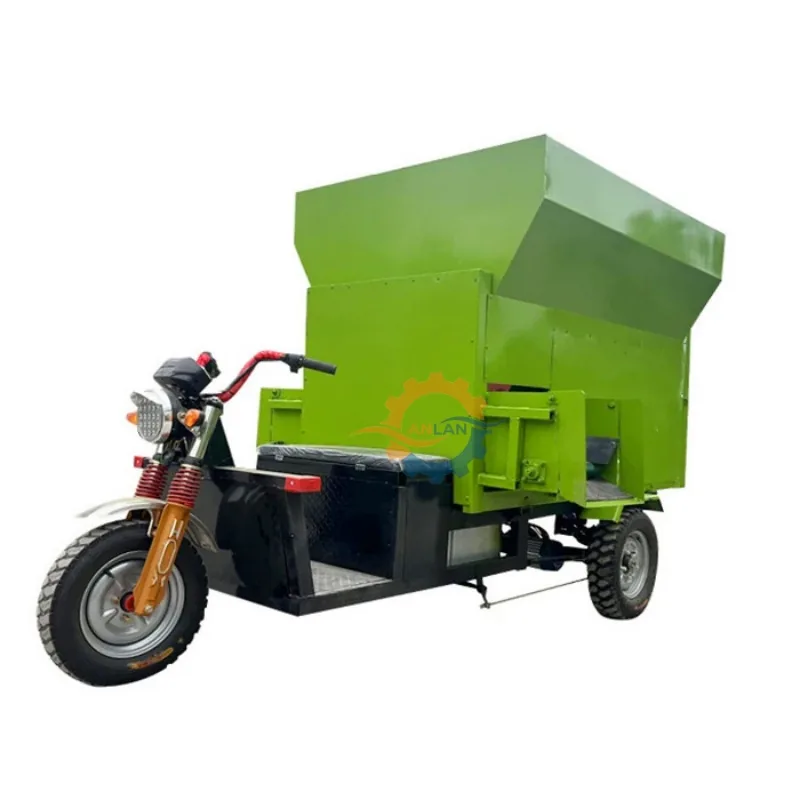

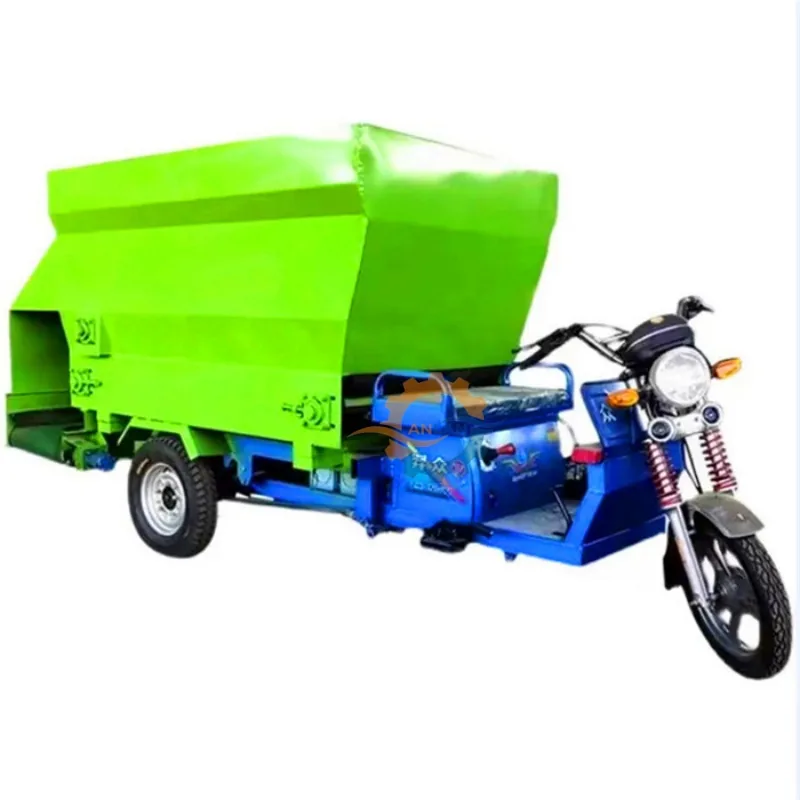

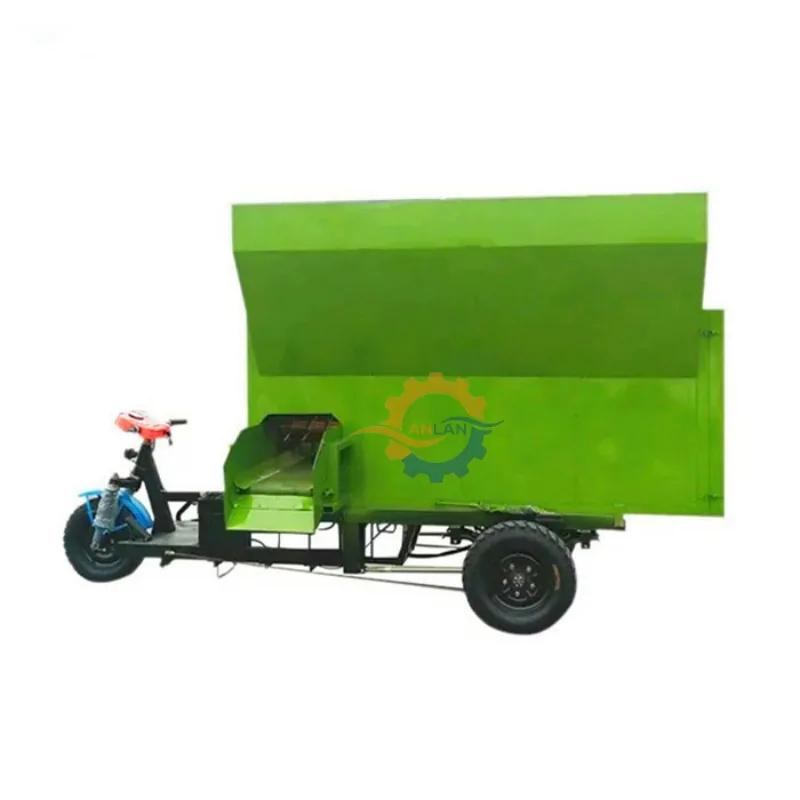

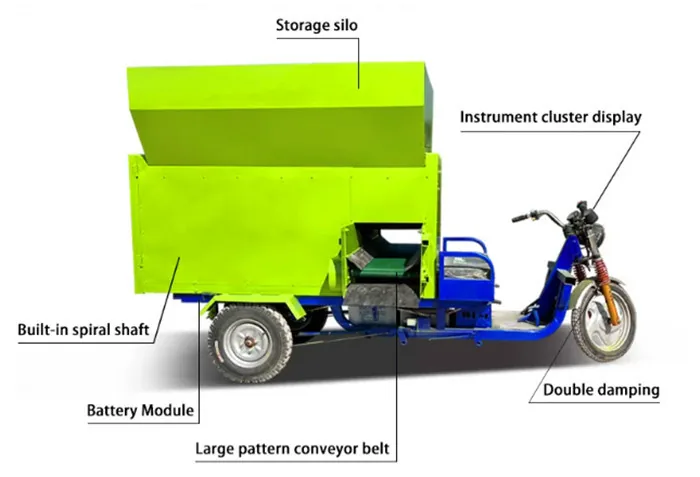

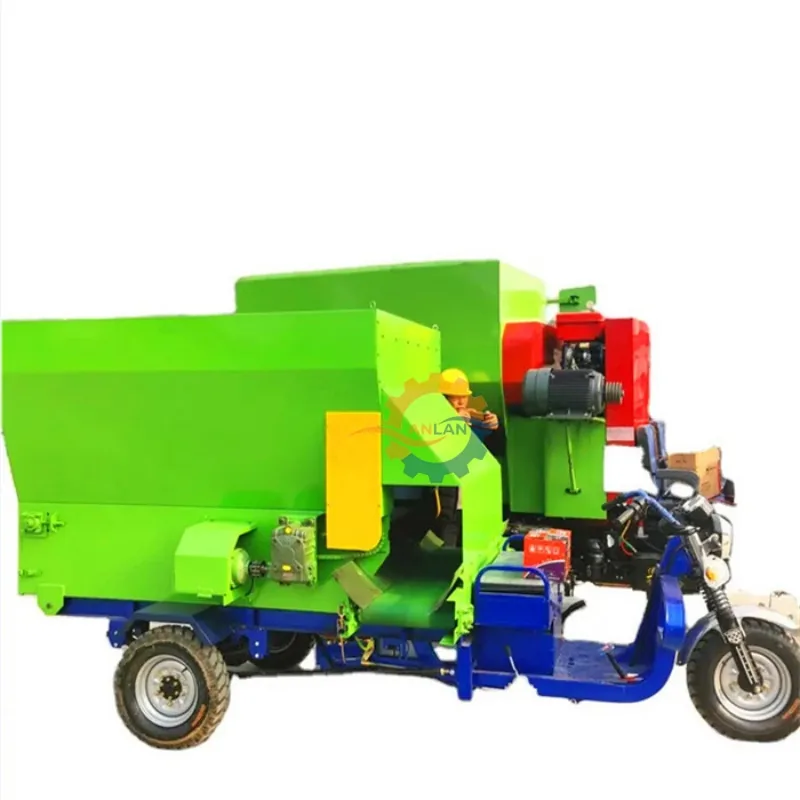

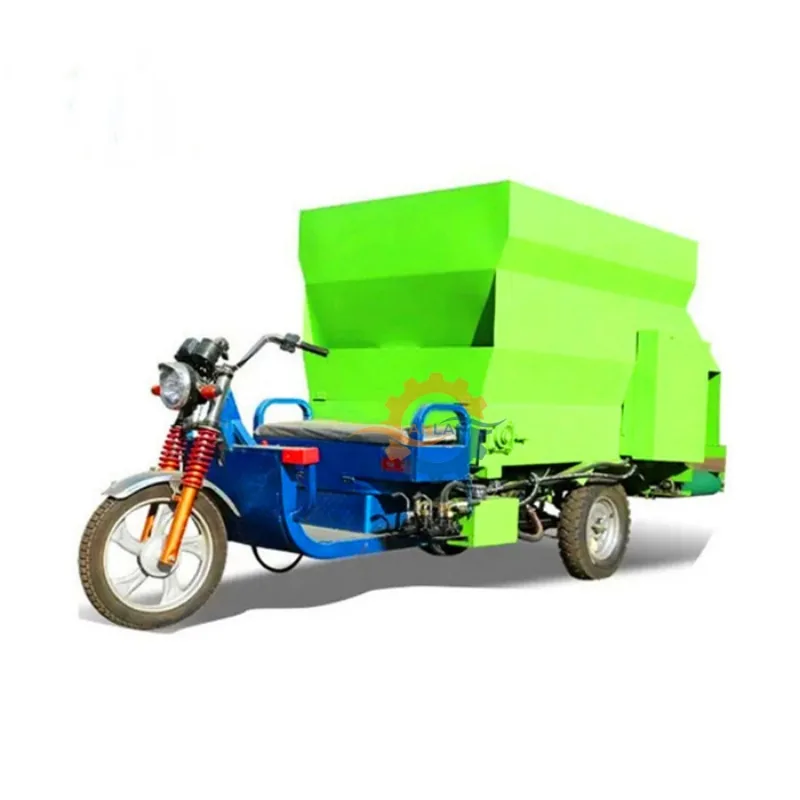

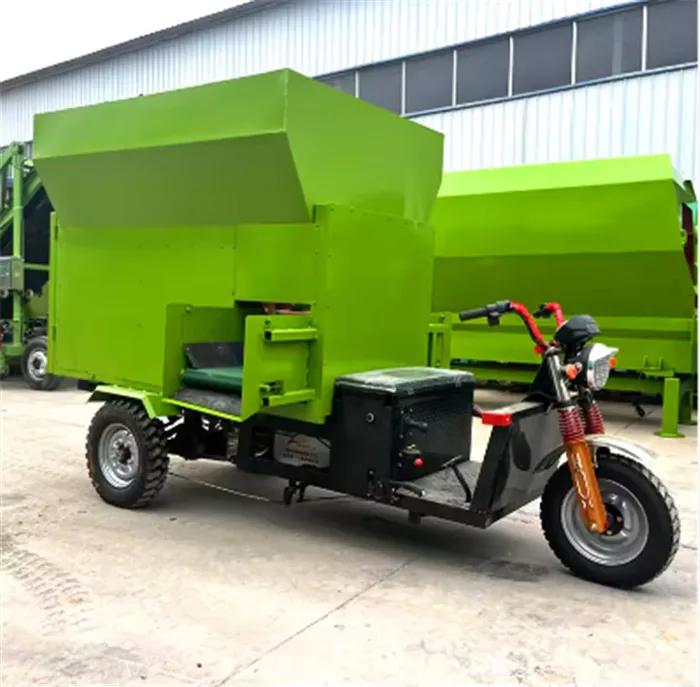

Electric Three-Wheel Feed Spreader
A compact battery-powered feed spreader for cattle and sheep farms. The three-wheel chassis carries prepared feed through narrow barn aisles and meters it from either side, reducing manual carting while keeping daily feeding quiet and emission-free at the point of use.
Technical overview
ModelAN-NYSLC-2 / AN-NYSLC-3
Rated capacity2 m³ / 3 m³
Overall dimensions3000 × 1100 × 1700 mm / 3500 × 1500 × 2200 mm
Machine weight900 kg / 1,000 kg

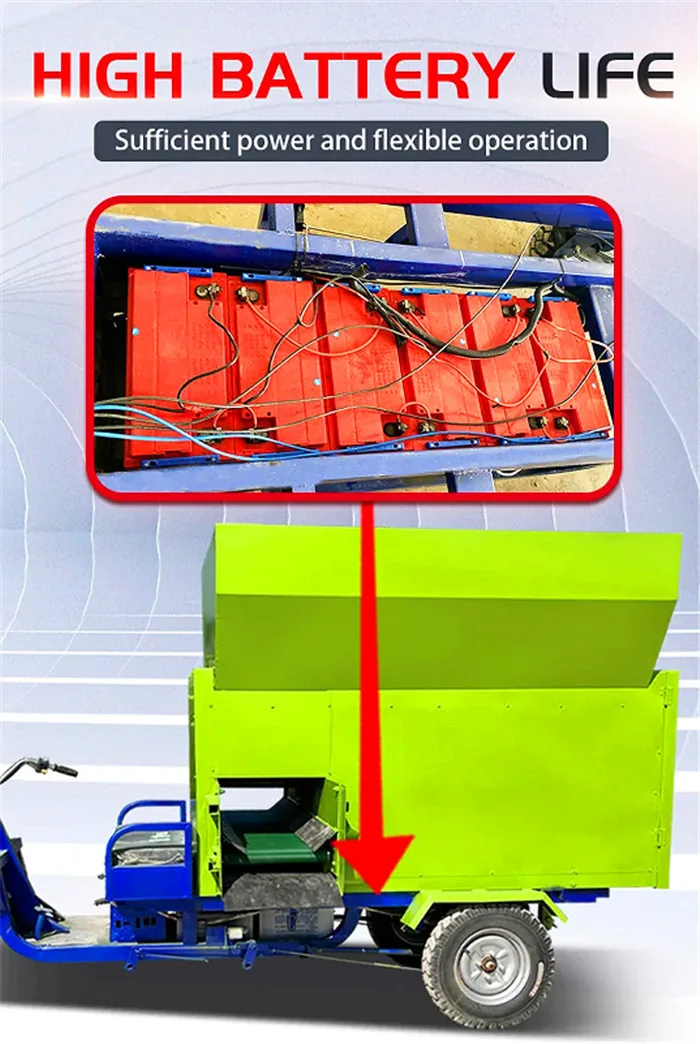

Battery60 V 220 Ah / 72 V 240 Ah
Travel motor3 kW / 4 kW
Mixing motor3 kW / 4 kW
Typical working timeApprox. 12 hours
Typical charging timeApprox. 7 hours
Discharge height550 mm; customisable
Engineering advantages
Practical machine advantages
Battery drive eliminates exhaust emissions in enclosed livestock aisles.
Left- or right-side discharge can be configured for the farm feeding route.

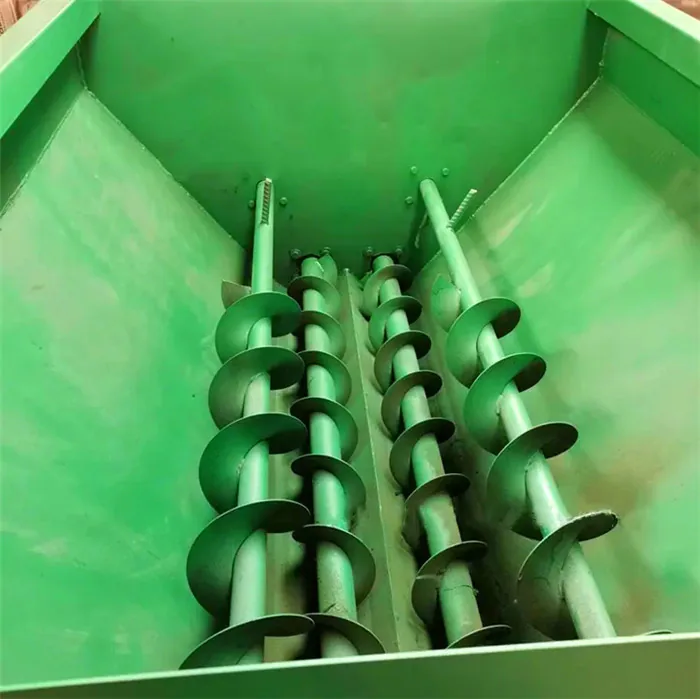

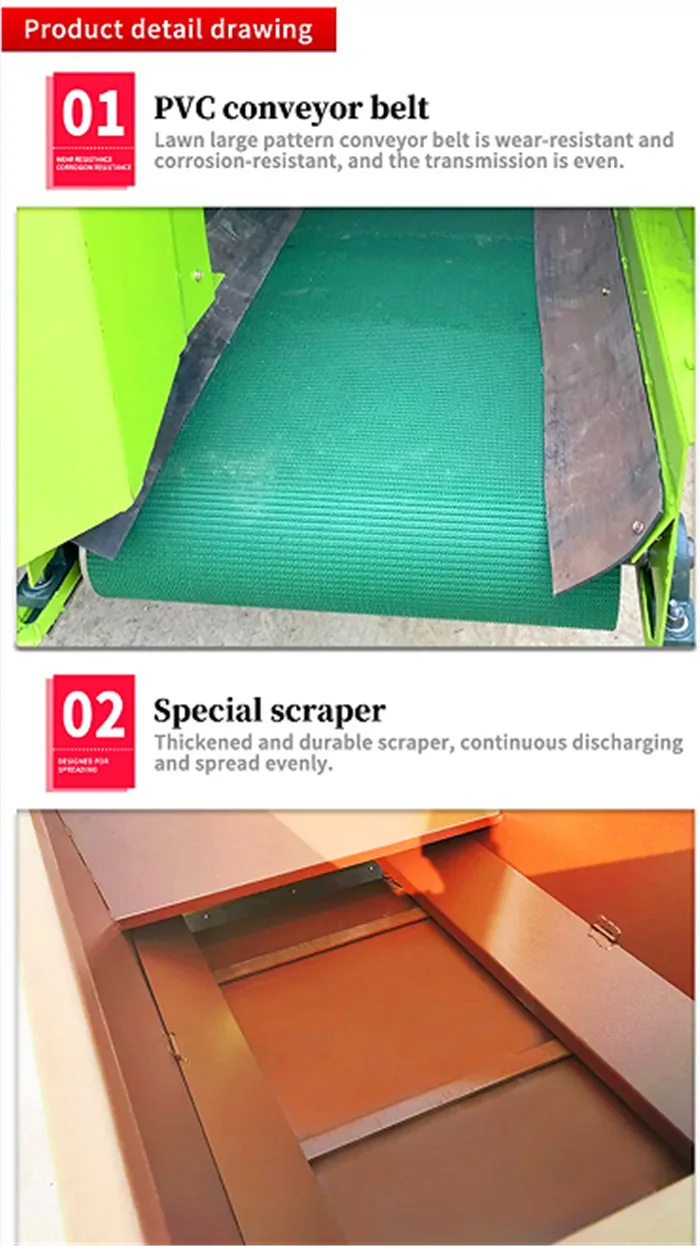

Adjustable conveyor speed helps match different ration volumes.

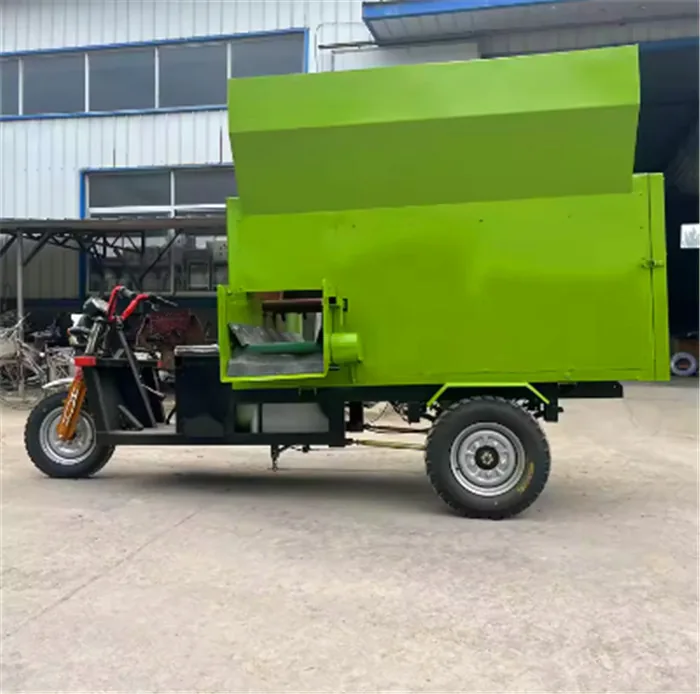

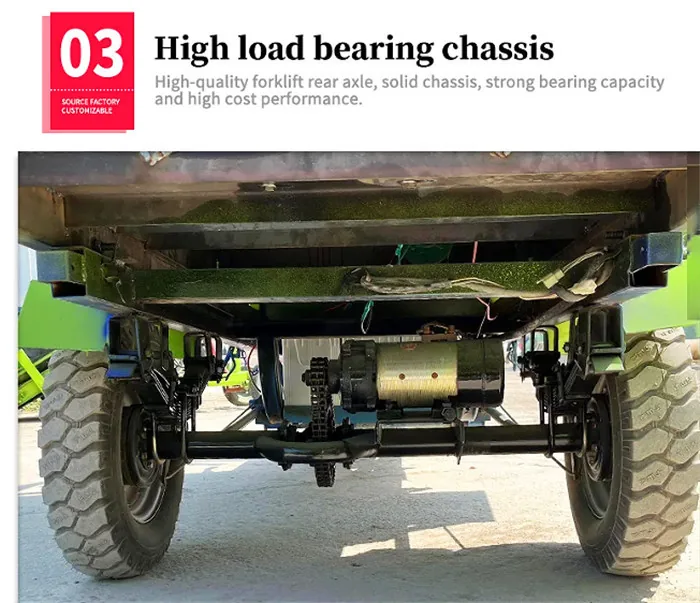

Compact three-wheel chassis is suited to narrow passages and frequent turns.
Low operating noise reduces disturbance during routine feeding.
Capacity and discharge height can be matched to the barn layout.
Operating instructions
Recommended operating flow
Follow the supplied machine manual and your farm safety rules. Confirm the ordered configuration before operation.
Enter the feeding aisle
Drive at a steady speed and keep people and animals clear of the travel path.
Start metered discharge
Select the required discharge side and adjust conveyor speed for an even feed line.
Clean and recharge
Remove residual feed, inspect the conveyor and connect the specified charger in a ventilated area.
Before starting
- Inspect guards, fasteners and working components.
- Confirm fuel, power or tractor connection as applicable.
- Clear people and obstacles from the work area.
Safety essentials
- Only trained personnel should operate the machine.
- Stop and isolate power before clearing a blockage.
- Keep bystanders away from moving and discharge parts.
Daily maintenance
- Remove residual material after each shift.
- Inspect wear parts, hoses and fasteners regularly.
- Lubricate and service the machine according to the manual.
Before ordering
Information needed to match your configuration
Rated capacity
Overall dimensions
Working requirement
Destination country
Specification
| Parameter | Value |
|---|---|
| Model | AN-NYSLC-2 / AN-NYSLC-3 |
| Rated capacity | 2 m³ / 3 m³ |
| Overall dimensions | 3000 × 1100 × 1700 mm / 3500 × 1500 × 2200 mm |
| Machine weight | 900 kg / 1,000 kg |
| Battery | 60 V 220 Ah / 72 V 240 Ah |
| Travel motor | 3 kW / 4 kW |
| Mixing motor | 3 kW / 4 kW |
| Typical working time | Approx. 12 hours |
| Typical charging time | Approx. 7 hours |
| Discharge height | 550 mm; customisable |
Full product gallery
Machine details, loading & working views
Select any image to open a larger view.
Factory to destination
Prepared for export, backed by our factory.
Packing, documentation and export preparation are coordinated before dispatch so your team receives the ordered machine ready for the job.

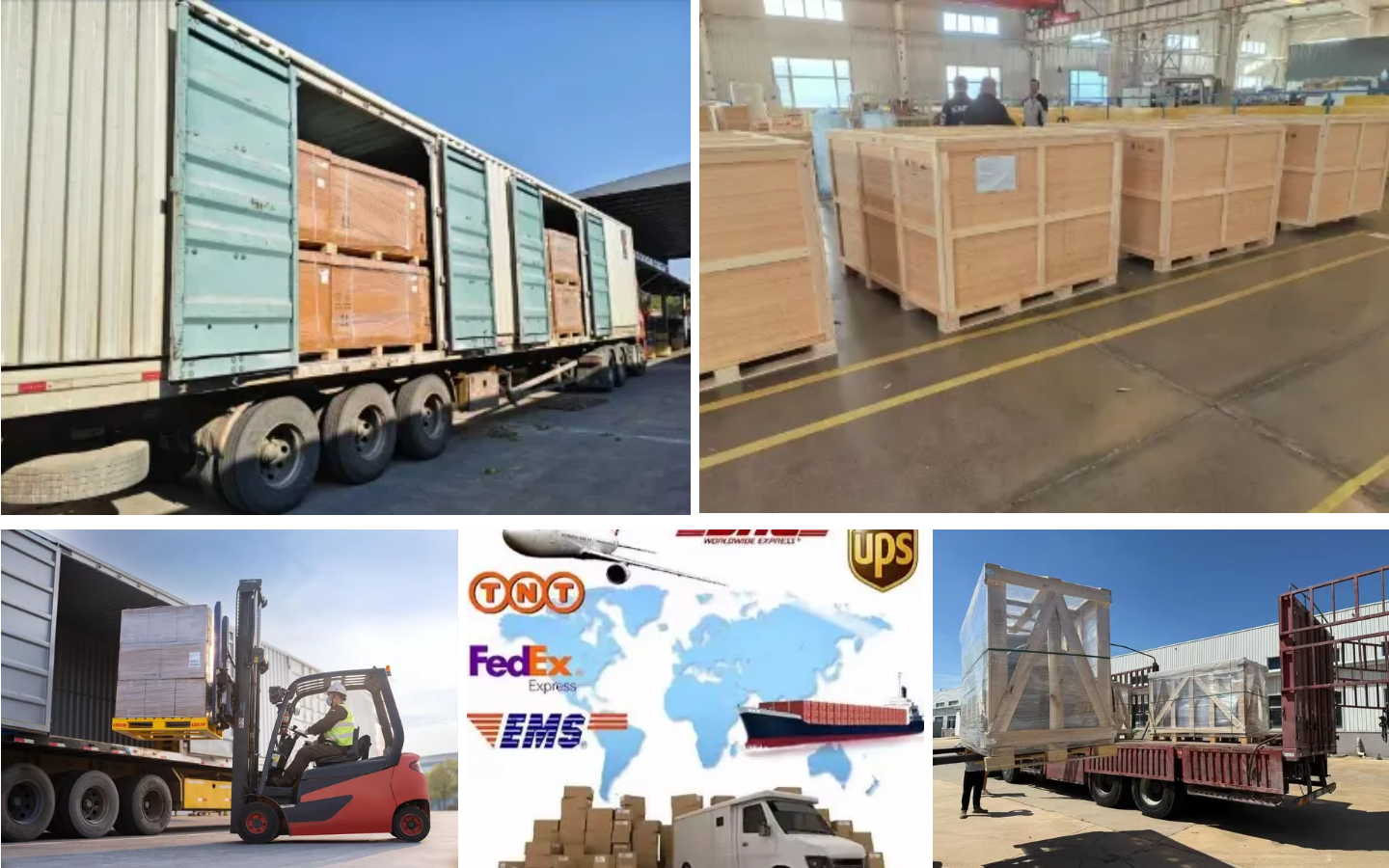

Export packing
Protective crating and organised loading for international shipment.

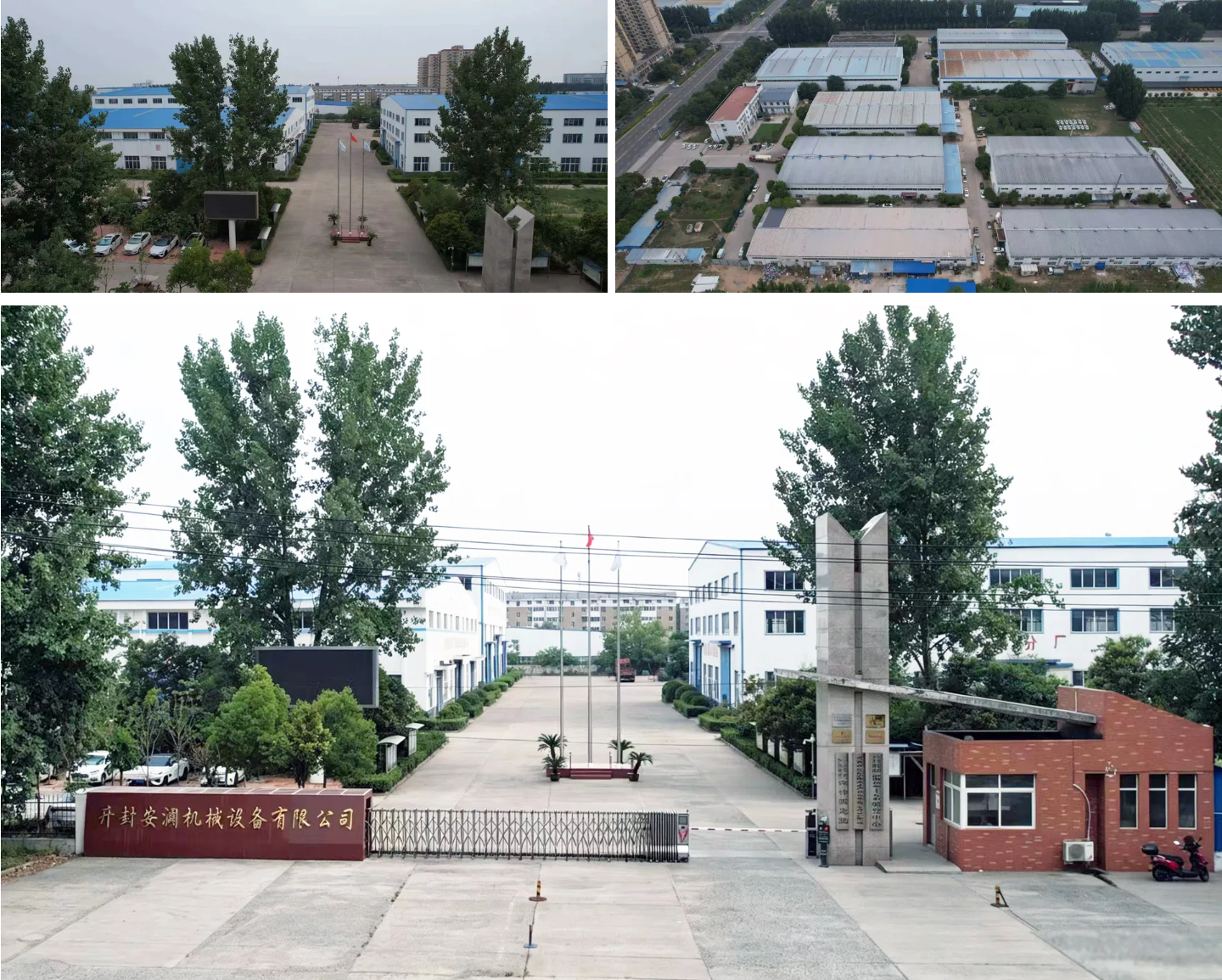

Factory production
Assembly and configuration support from the Anlan production base.
Product enquiry
Get a configuration and export quote.
Tell us where the machine will work, your target capacity and destination country. We will confirm the configuration and shipping details.
