Check the machine
Inspect fluids, auger, knives, weighing system and discharge components.
INTEGRATED LIVESTOCK FEEDINGRequest a quote: AN-LSJBSLC-5 →Chat with Sales EngineerRead Operating Instructions ↓

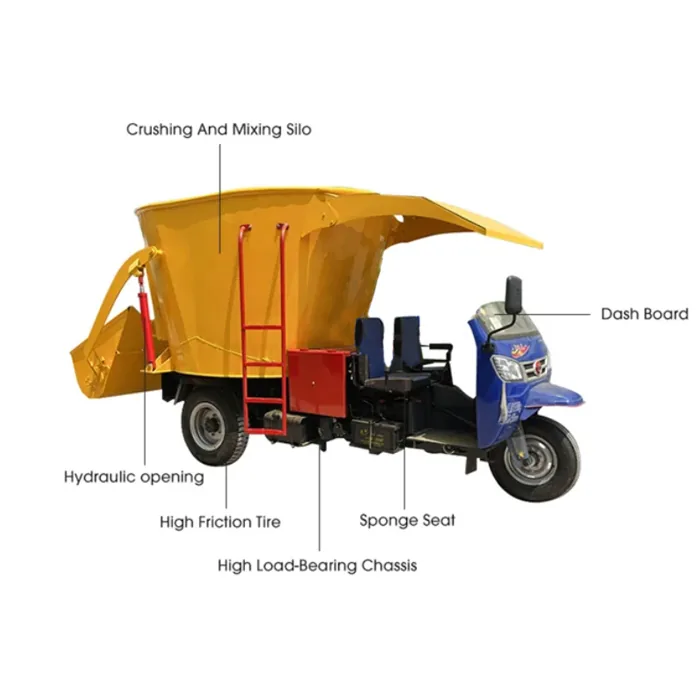

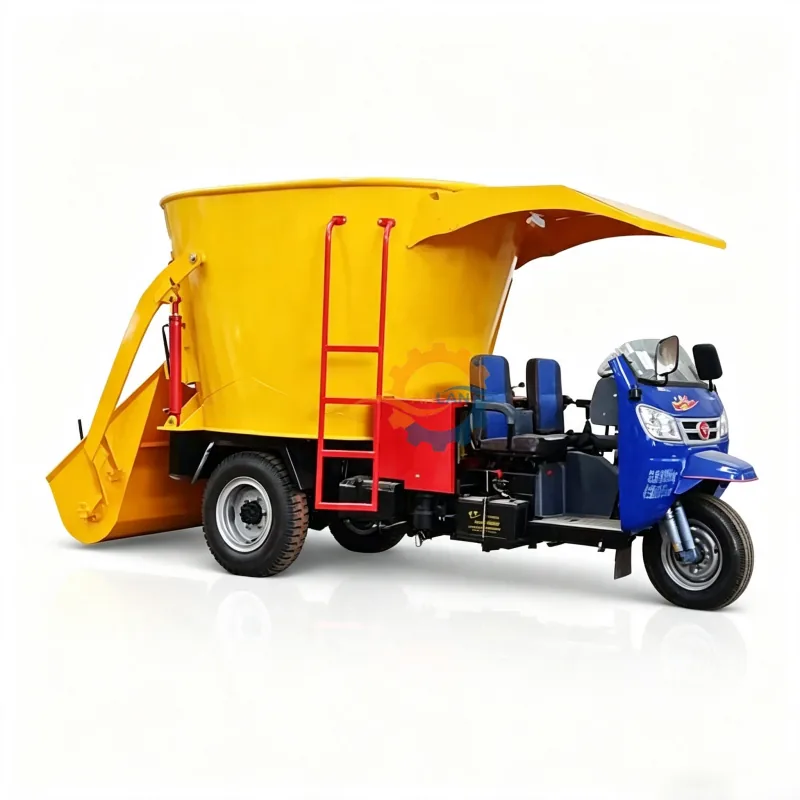

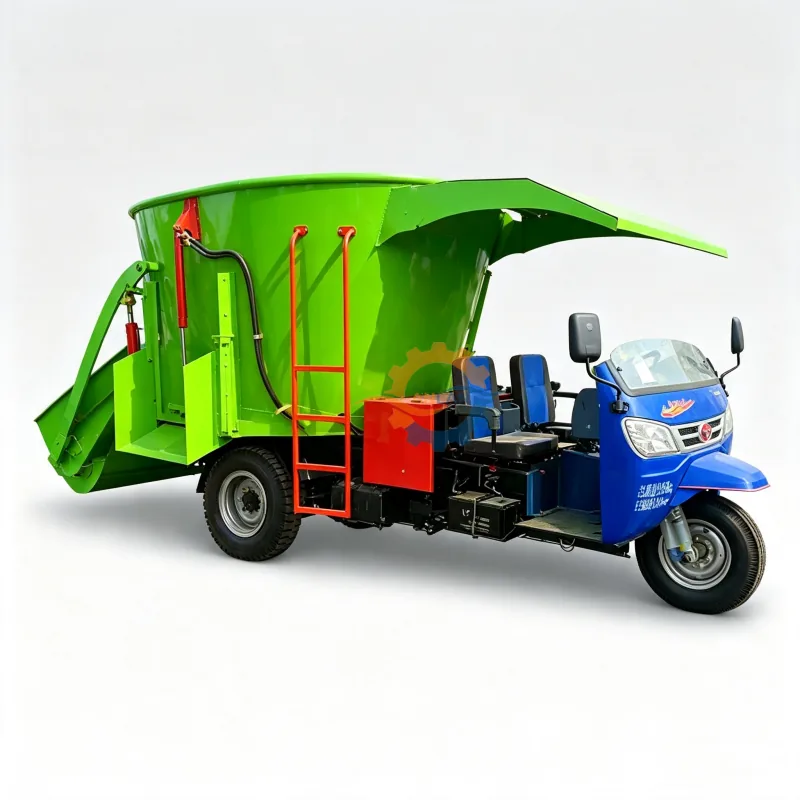

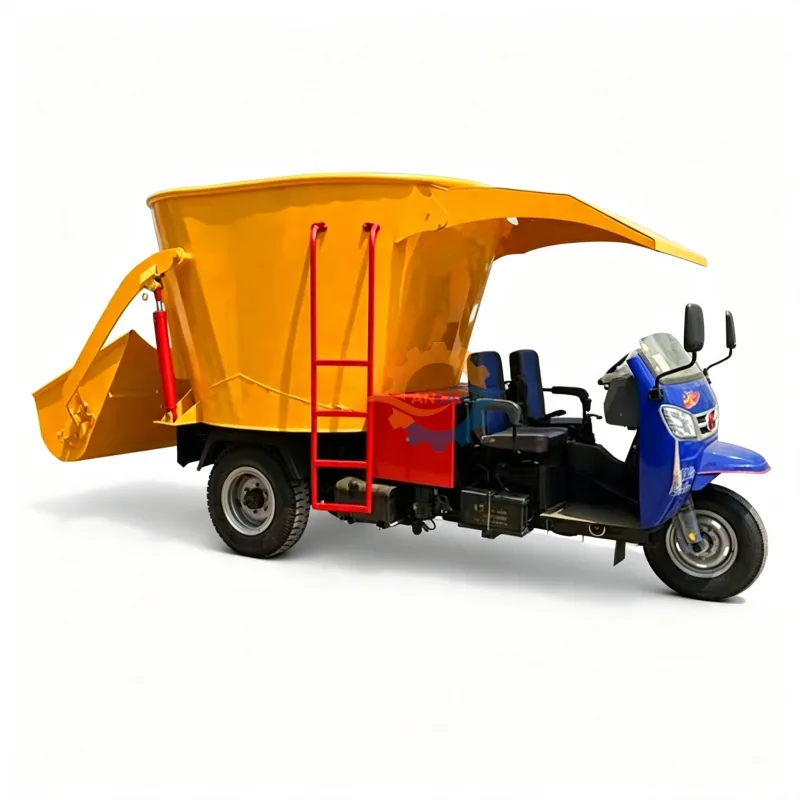

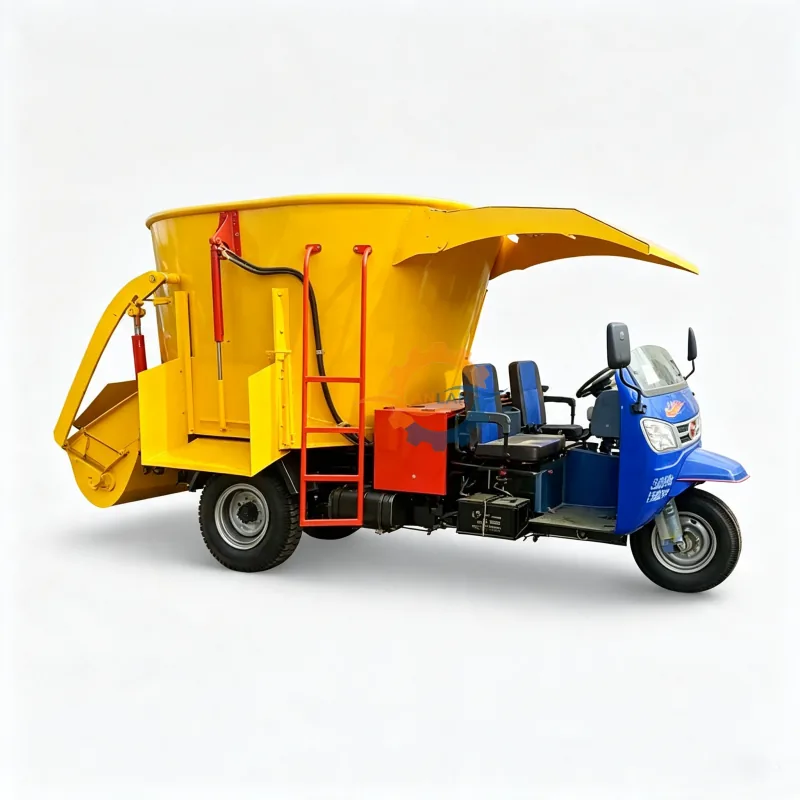

Self-Propelled Vertical TMR Mixer
A compact three-wheel vertical TMR mixer that combines loading support, mixing, weighing, transport and feed distribution on one self-propelled chassis. The 5 m³ configuration is intended for cattle and sheep farms that need one operator to prepare and deliver a consistent ration.
Technical overview
ModelAN-LSJBSLC-5
Rated capacity5 m³
Engine power25 HP
Mixer typeVertical auger
Auger speed12–16 r/min
Typical mixing timeApprox. 20 minutes
Rated mixing weight1,000 kg
Overall dimensions4.3 × 1.8 × 2.1 m
Machine weight2,000 kg
Electrical supply220 V auxiliary system
Engineering advantages
Practical machine advantages
Mixing and feeding functions are combined on one manoeuvrable chassis.

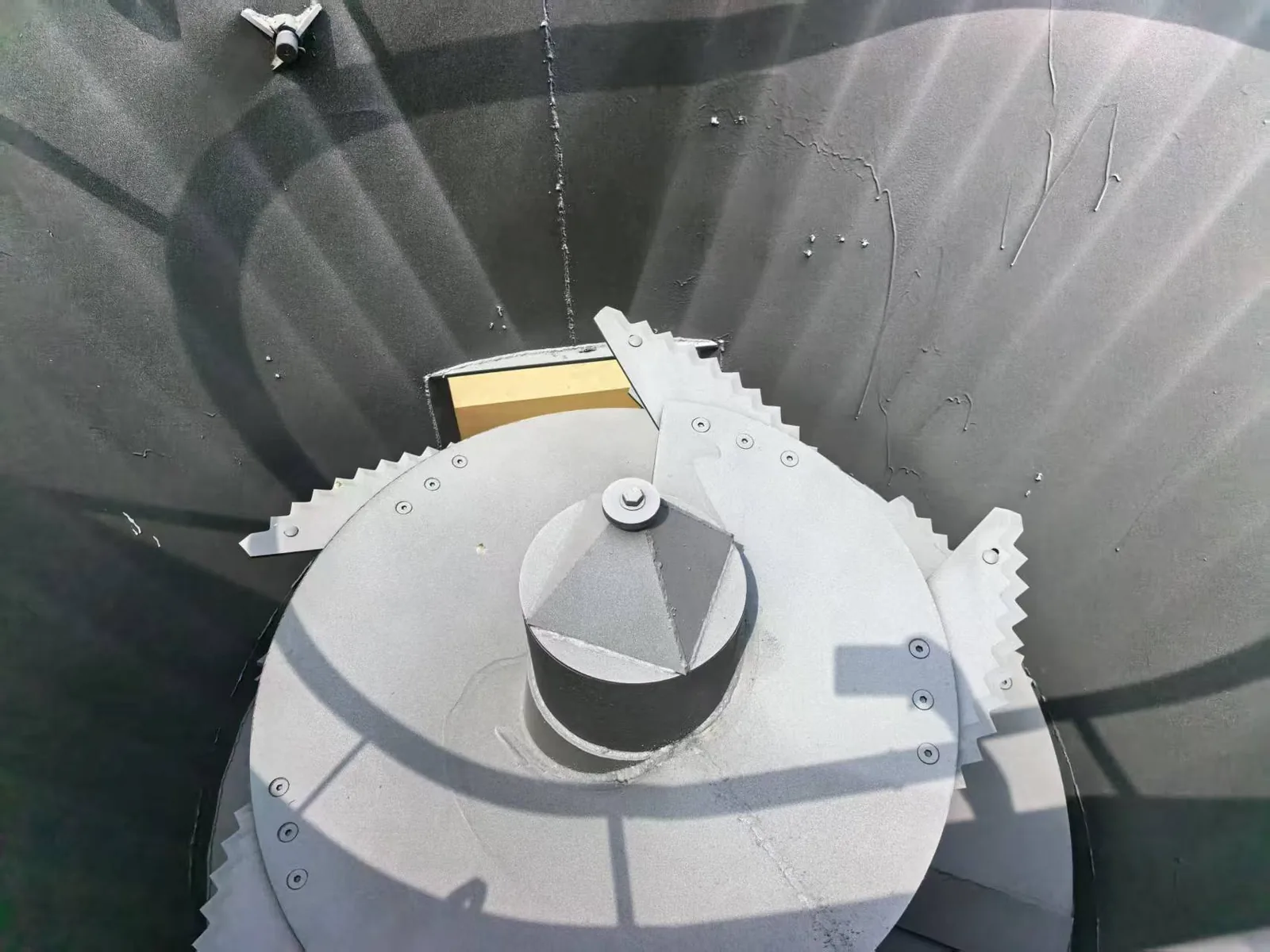

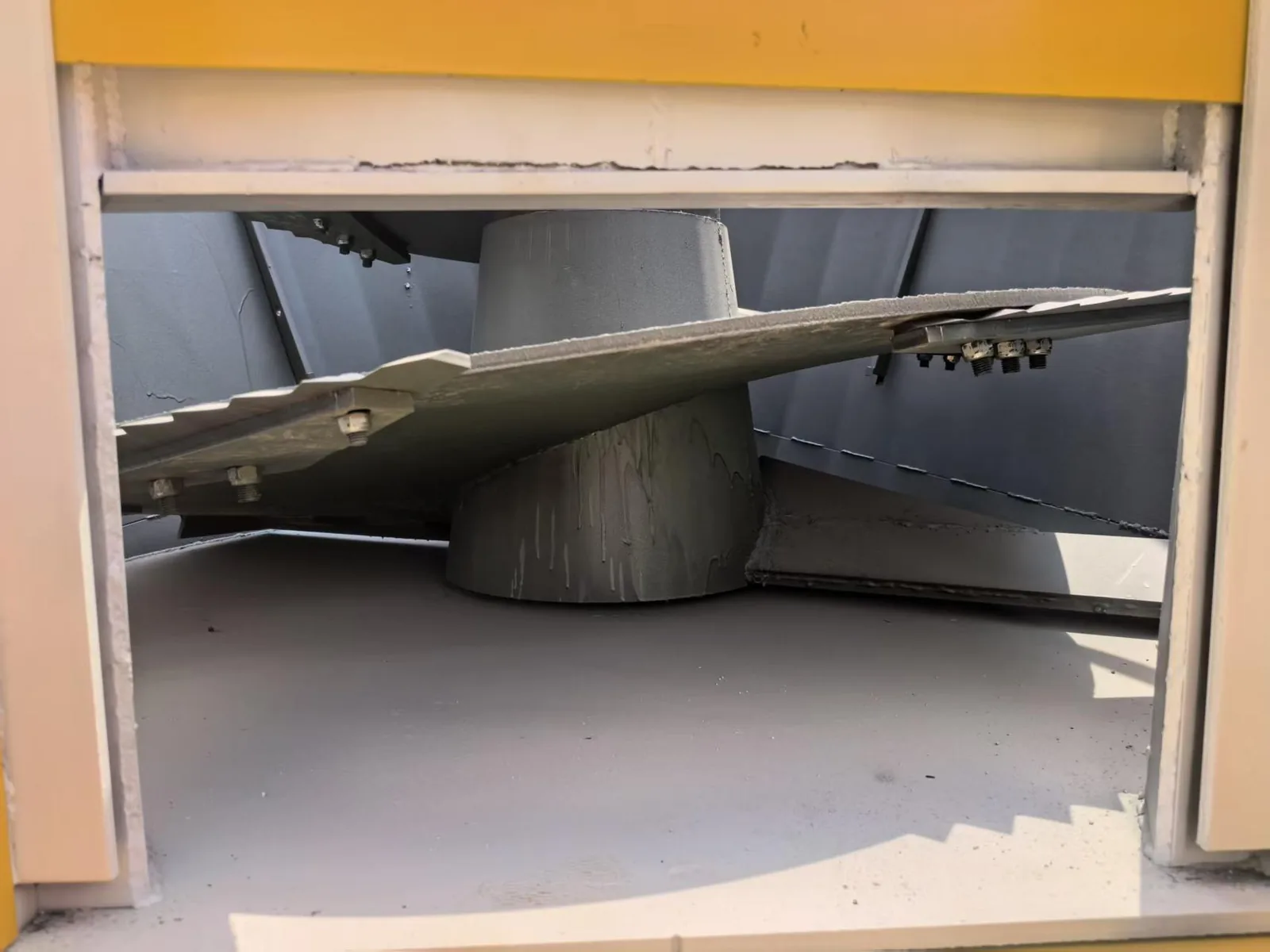

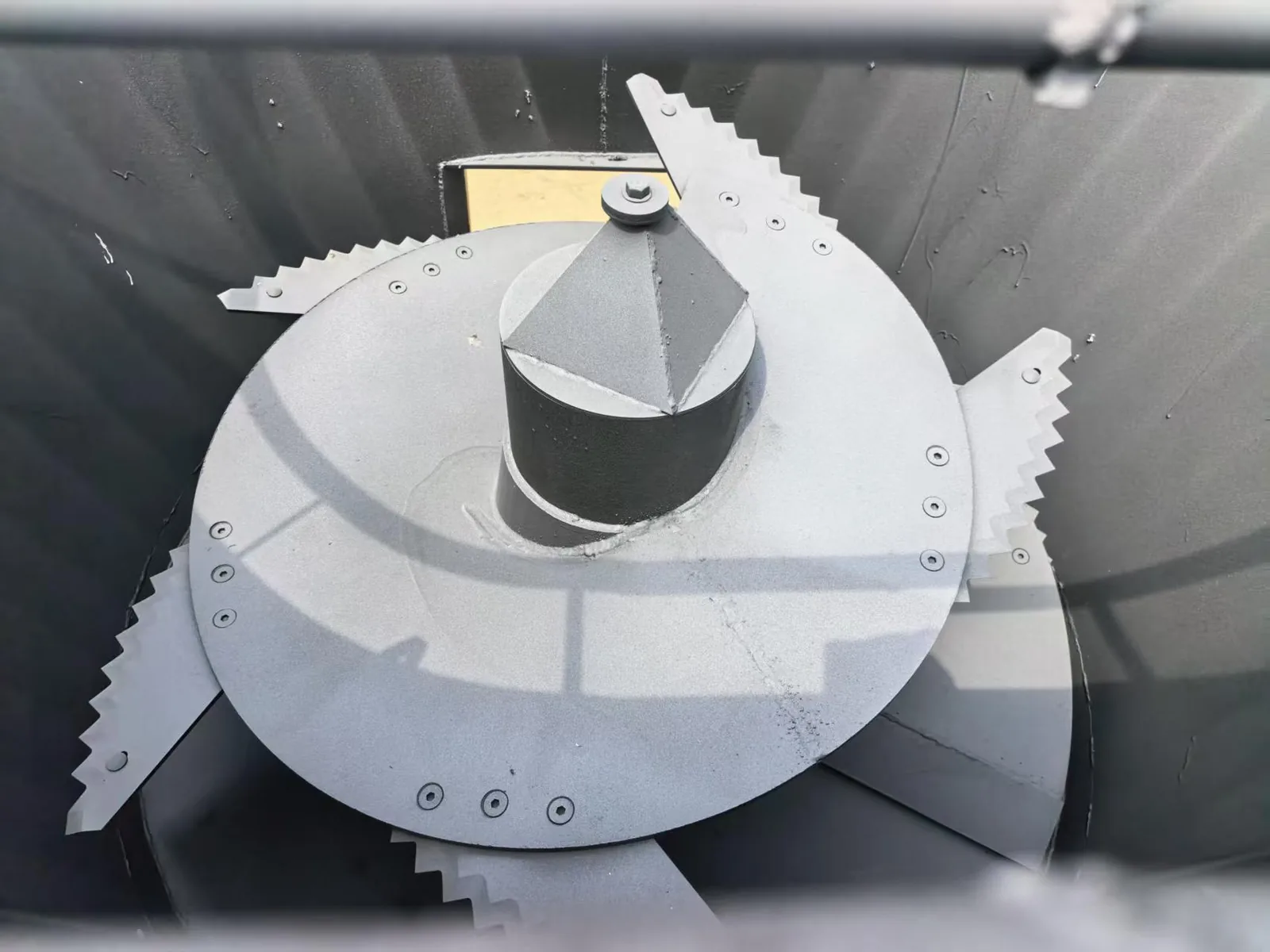

Vertical auger processes forage and concentrates into a consistent TMR batch.
5 m³ hopper suits routine feeding for small and medium herds.

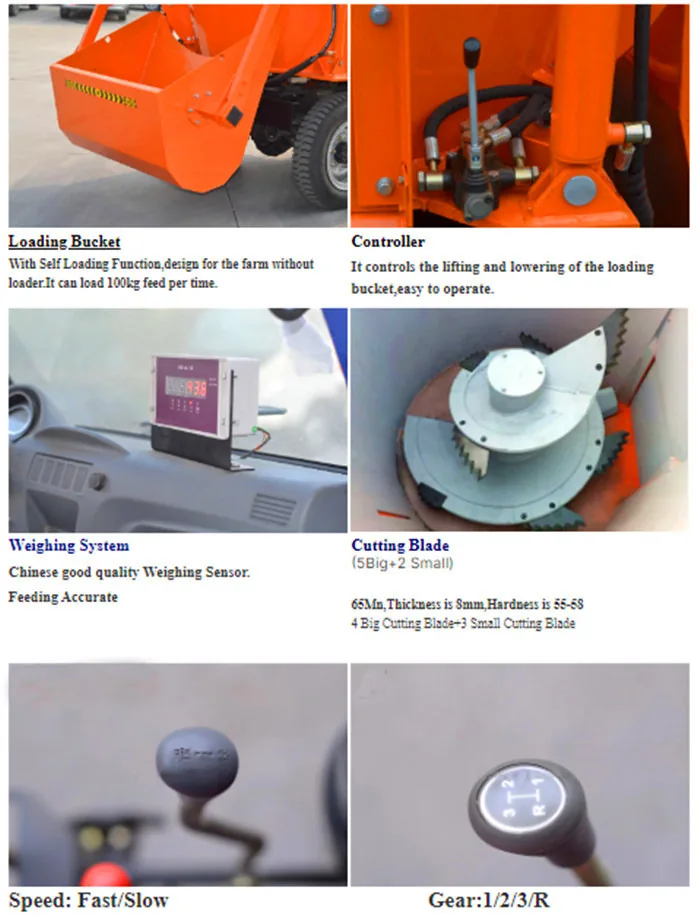

Integrated weighing supports more repeatable ingredient loading.
25 HP self-propelled drive removes the need for a tractor during distribution.
Compact dimensions help the machine work through farm lanes and barn approaches.
Operating instructions
Recommended operating flow
Follow the supplied machine manual and your farm safety rules. Confirm the ordered configuration before operation.
Load the ration
Add ingredients in the planned order without exceeding the rated batch weight.
Mix to uniformity
Operate the vertical auger for the required period while monitoring the ration condition.
Travel and feed
Drive slowly along the bunk and meter the finished ration evenly before cleaning the machine.
Before starting
- Inspect guards, fasteners and working components.
- Confirm fuel, power or tractor connection as applicable.
- Clear people and obstacles from the work area.
Safety essentials
- Only trained personnel should operate the machine.
- Stop and isolate power before clearing a blockage.
- Keep bystanders away from moving and discharge parts.
Daily maintenance
- Remove residual material after each shift.
- Inspect wear parts, hoses and fasteners regularly.
- Lubricate and service the machine according to the manual.
Before ordering
Information needed to match your configuration
Rated capacity
Engine power
Working requirement
Destination country
Specification
| Parameter | Value |
|---|---|
| Model | AN-LSJBSLC-5 |
| Rated capacity | 5 m³ |
| Engine power | 25 HP |
| Mixer type | Vertical auger |
| Auger speed | 12–16 r/min |
| Typical mixing time | Approx. 20 minutes |
| Rated mixing weight | 1,000 kg |
| Overall dimensions | 4.3 × 1.8 × 2.1 m |
| Machine weight | 2,000 kg |
| Electrical supply | 220 V auxiliary system |

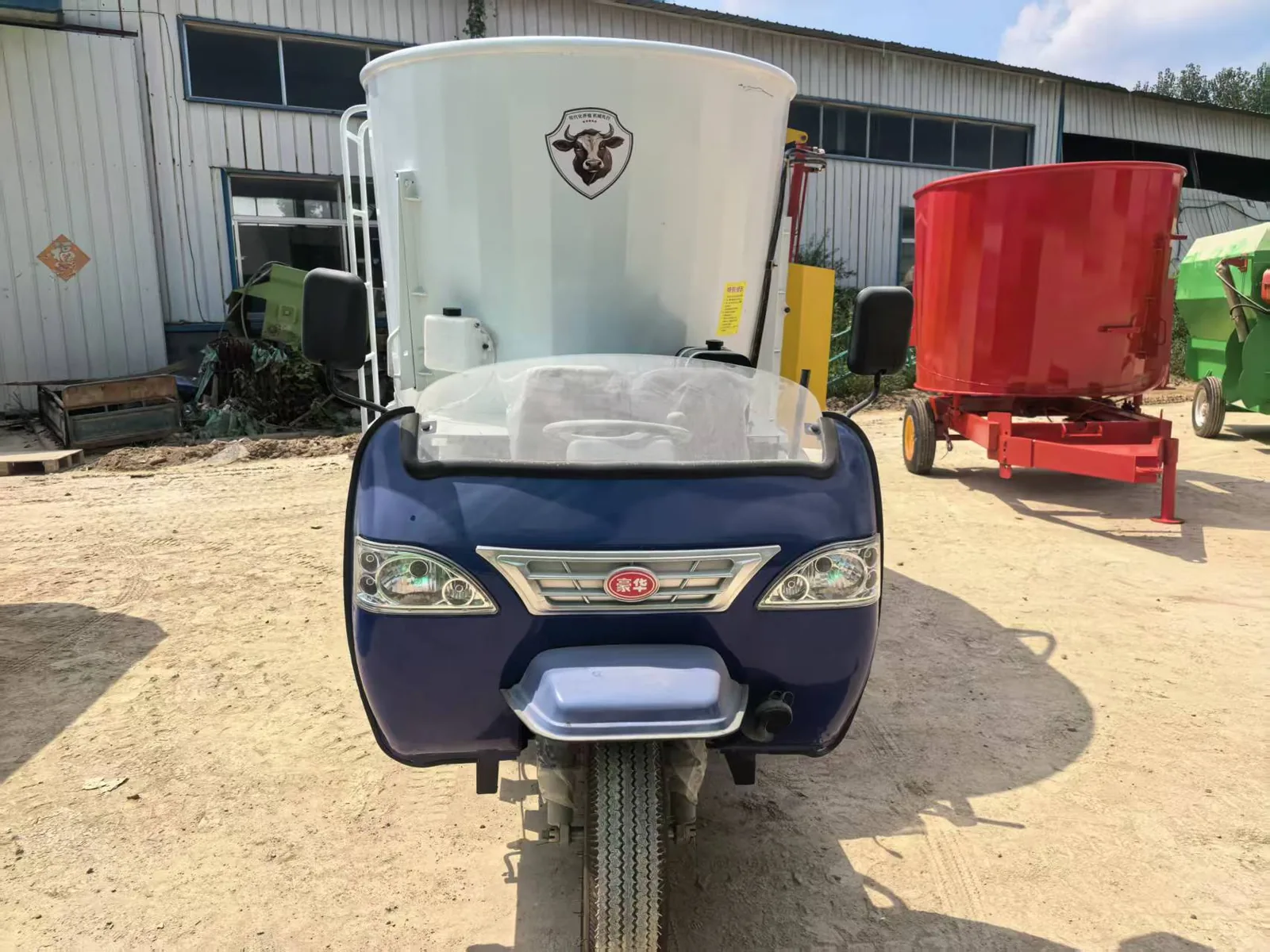

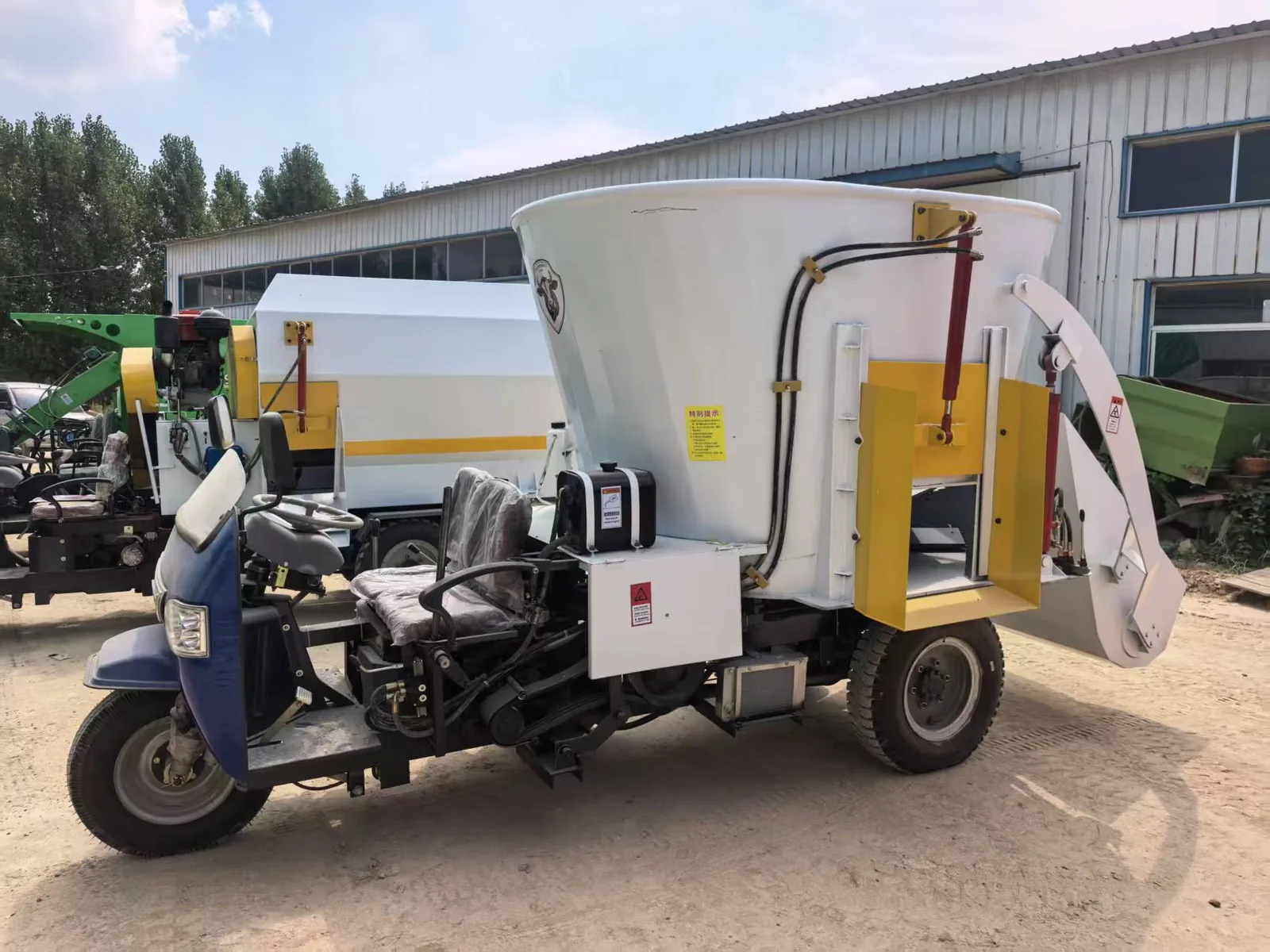

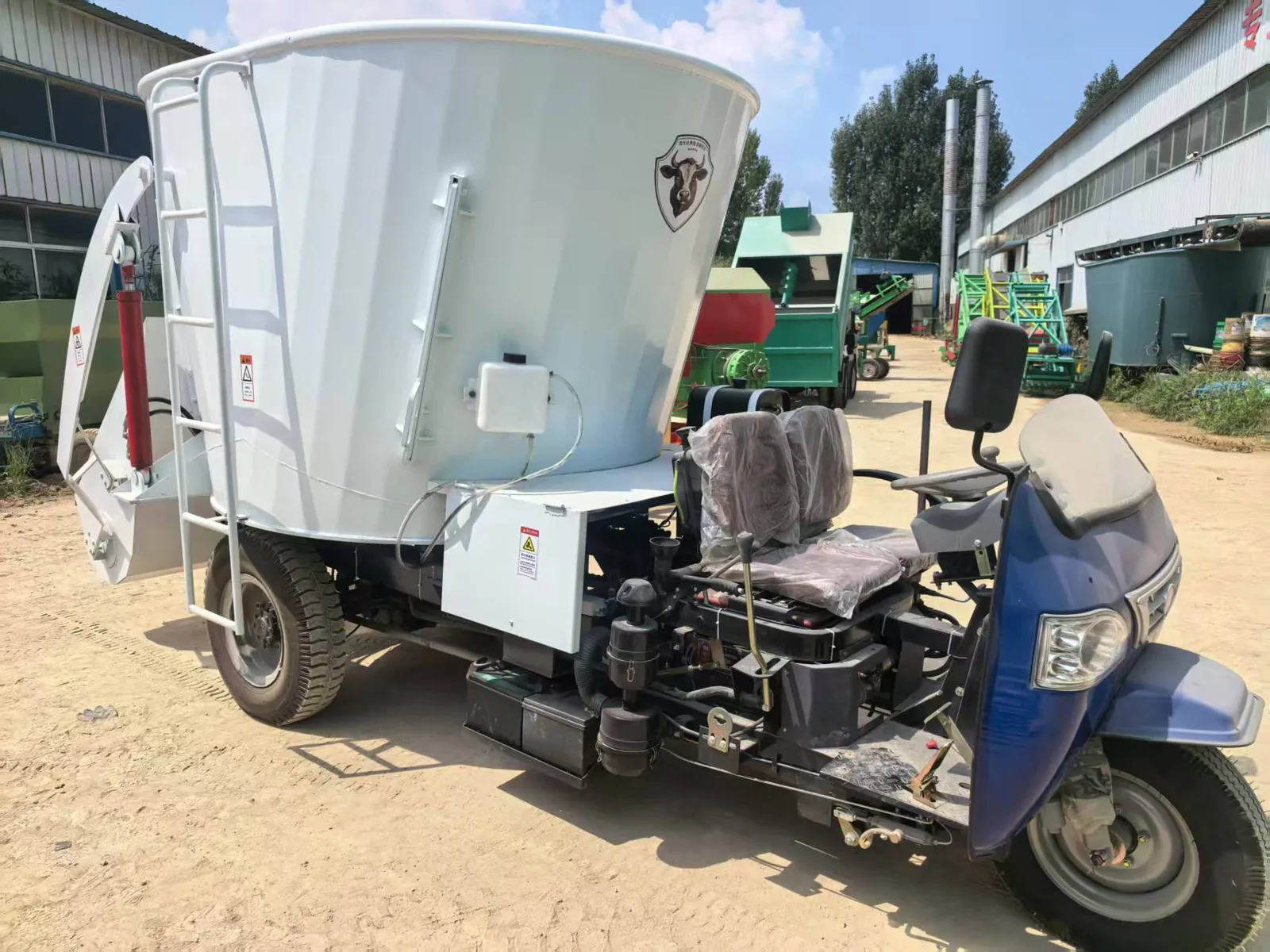

Full product gallery

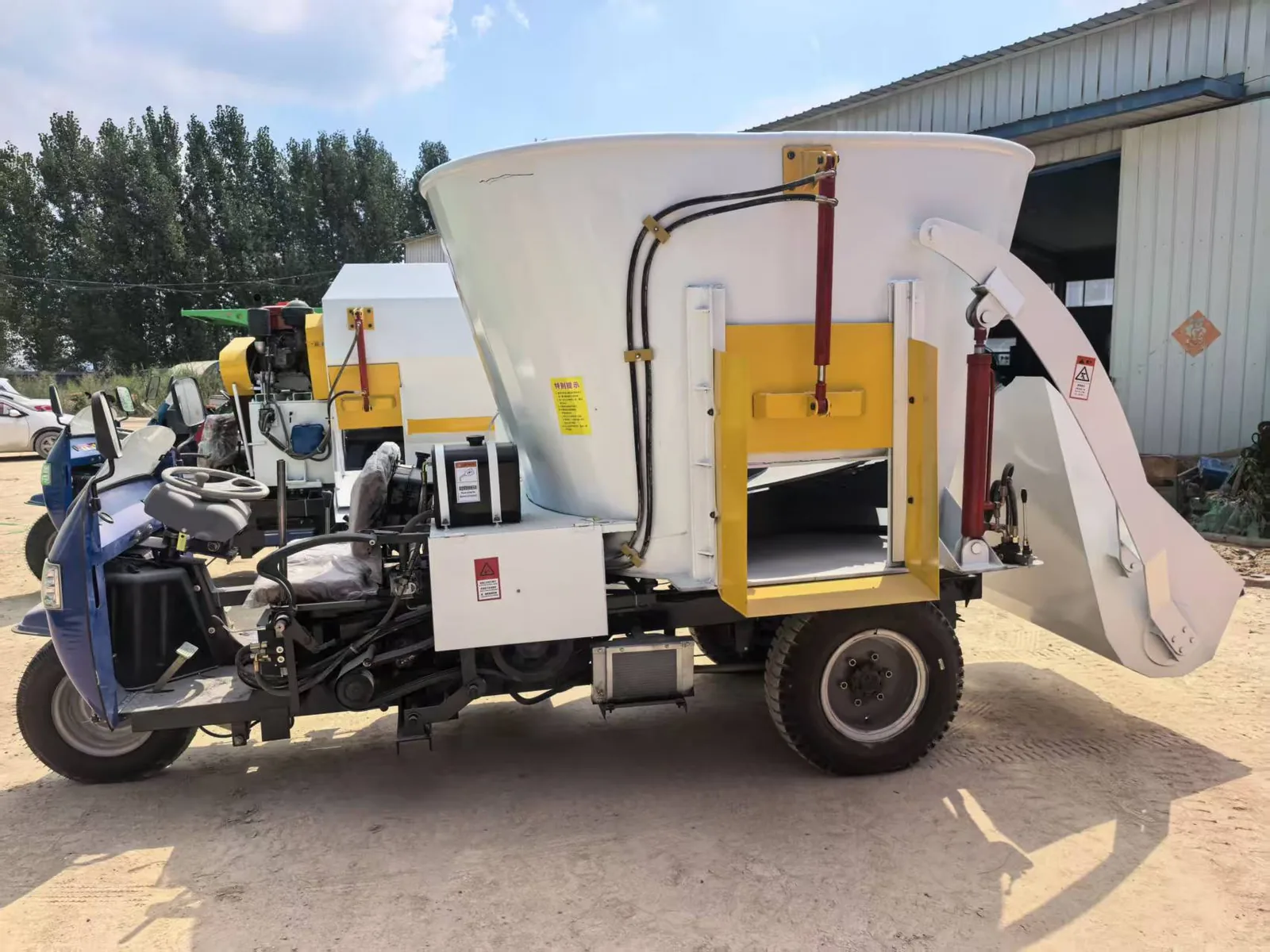

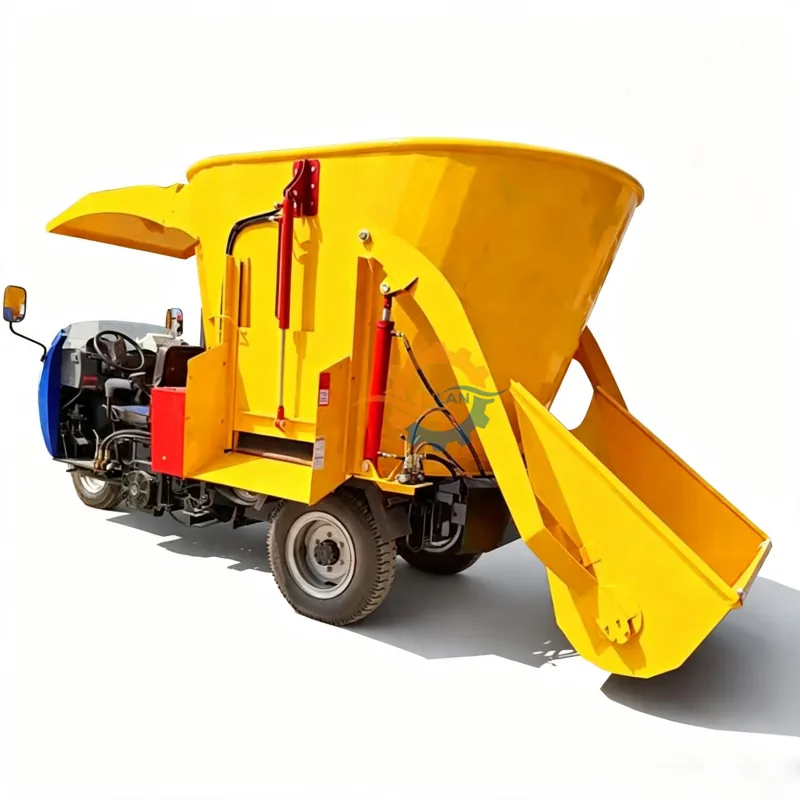

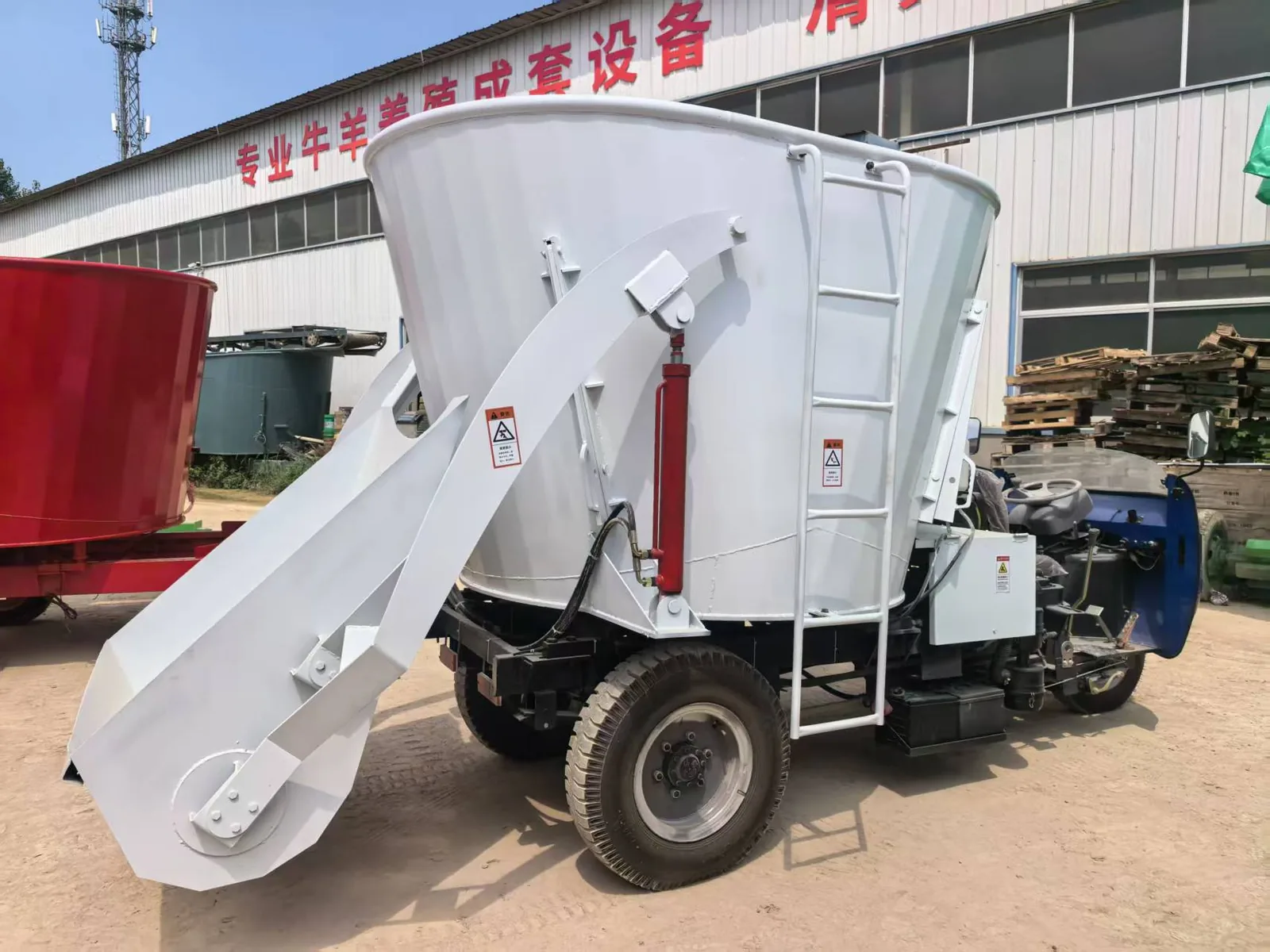

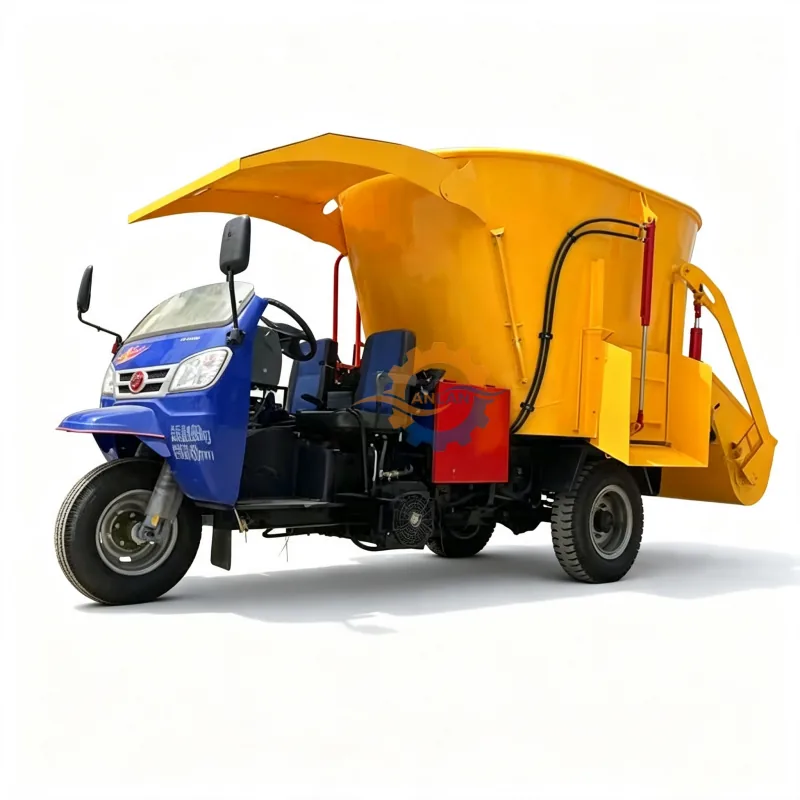

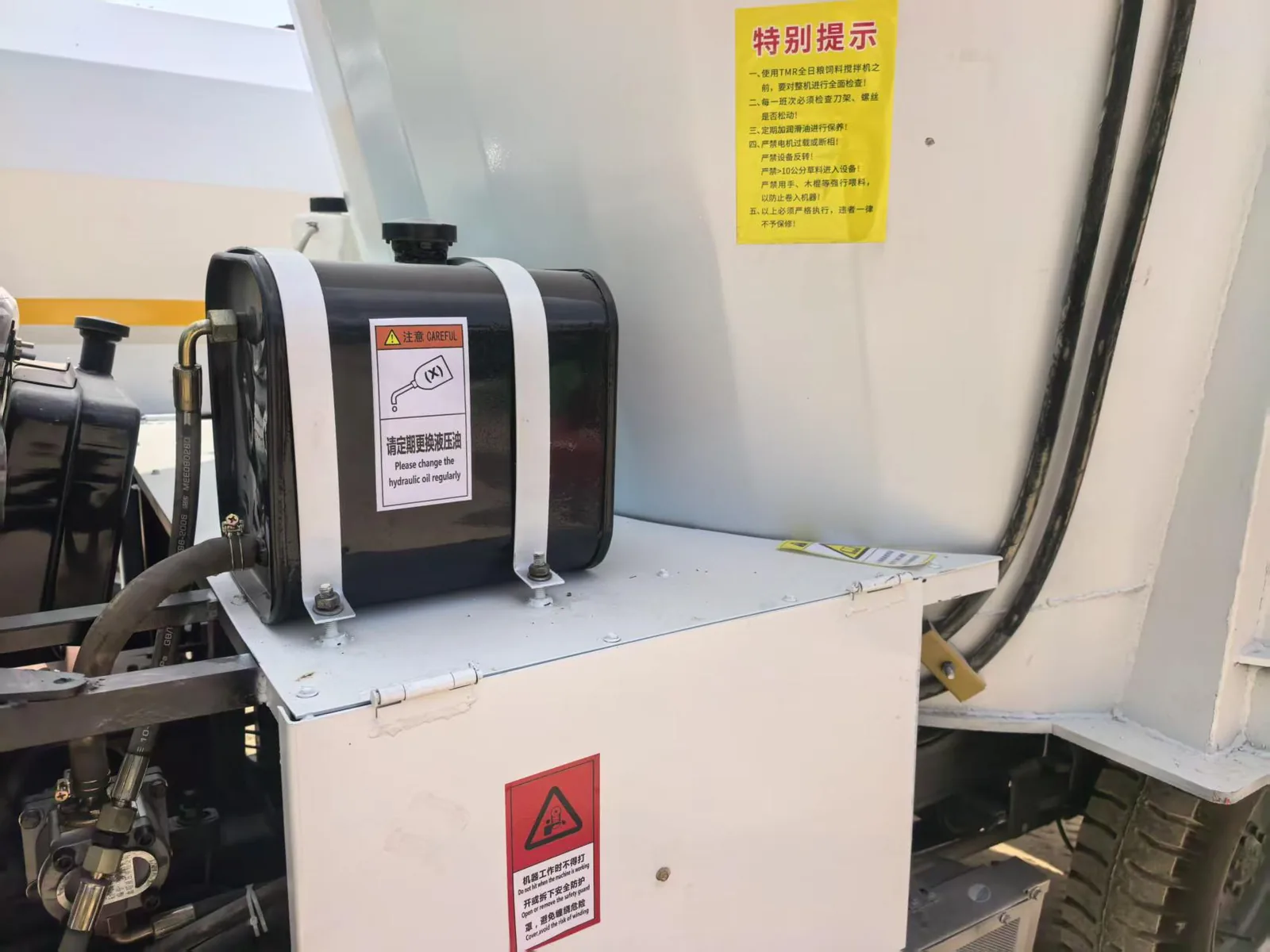

Machine details, loading & working views
Select any image to open a larger view.
Factory to destination
Prepared for export, backed by our factory.
Packing, documentation and export preparation are coordinated before dispatch so your team receives the ordered machine ready for the job.
Export packing
Protective crating and organised loading for international shipment.
Factory production
Assembly and configuration support from the Anlan production base.
Product enquiry
Get a configuration and export quote.
Tell us where the machine will work, your target capacity and destination country. We will confirm the configuration and shipping details.
