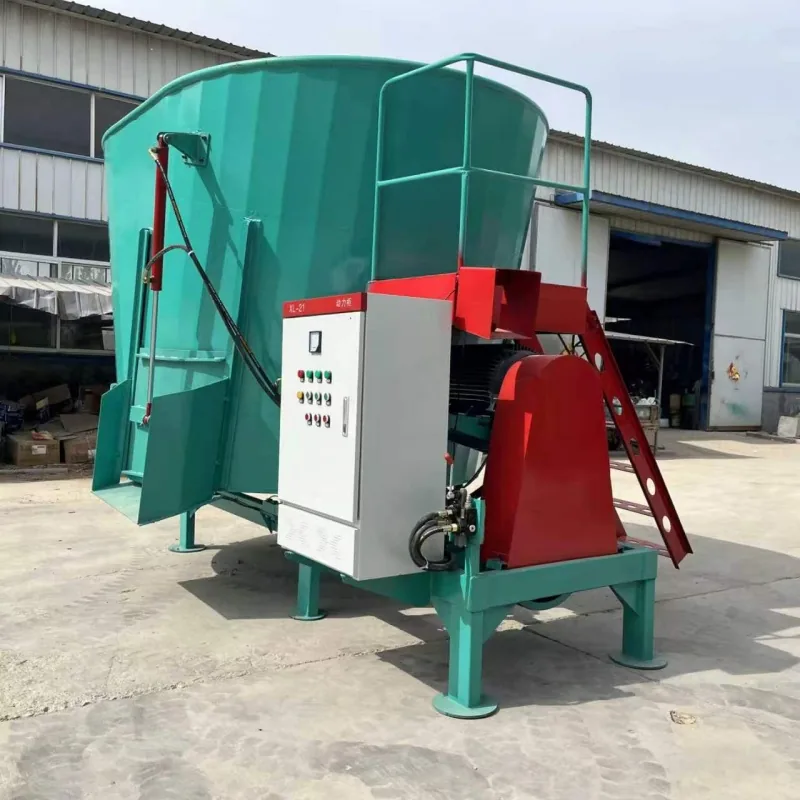

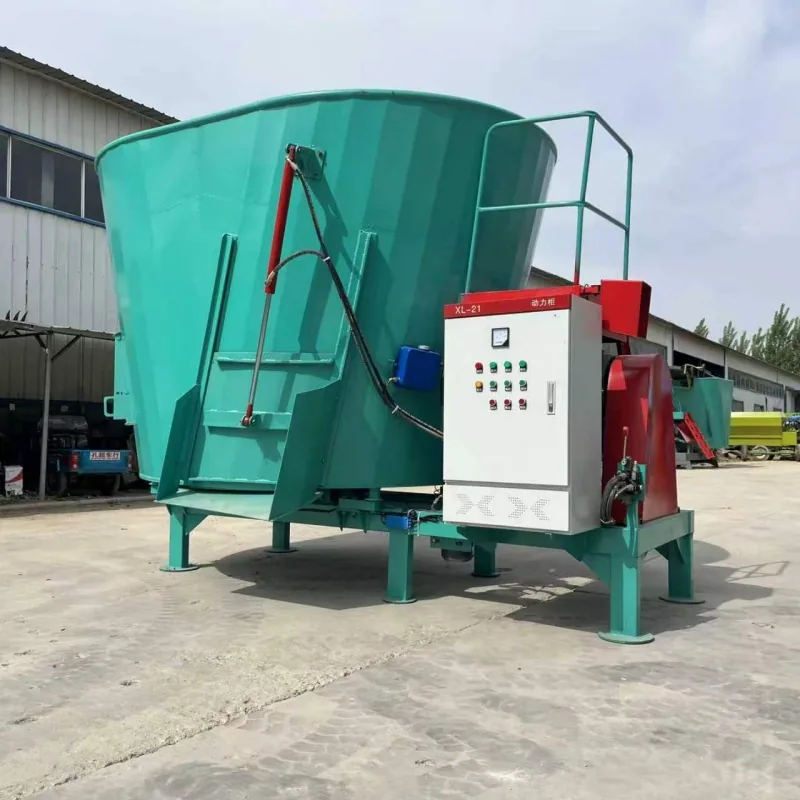

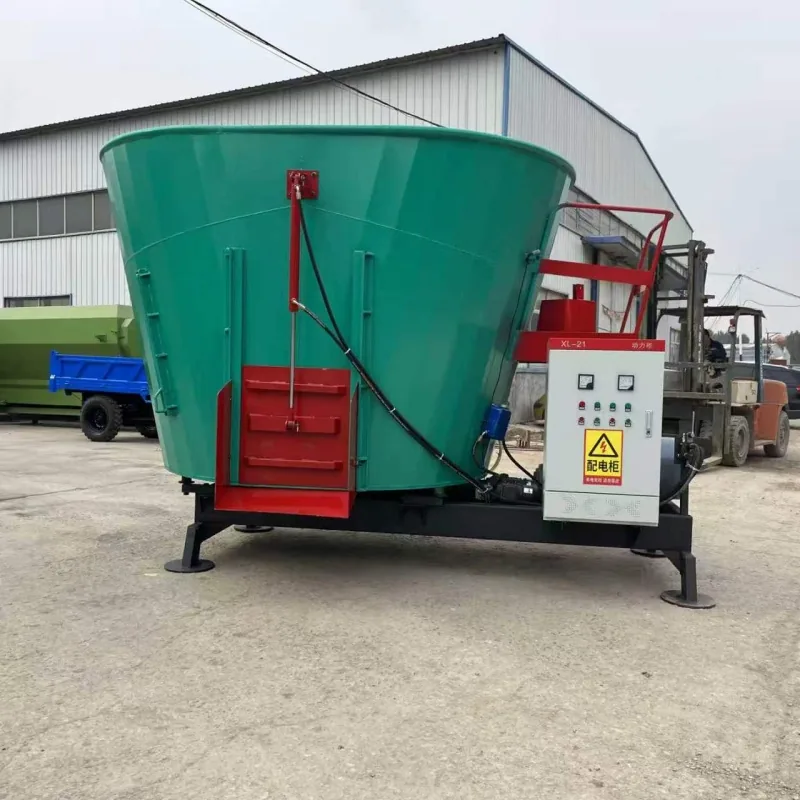

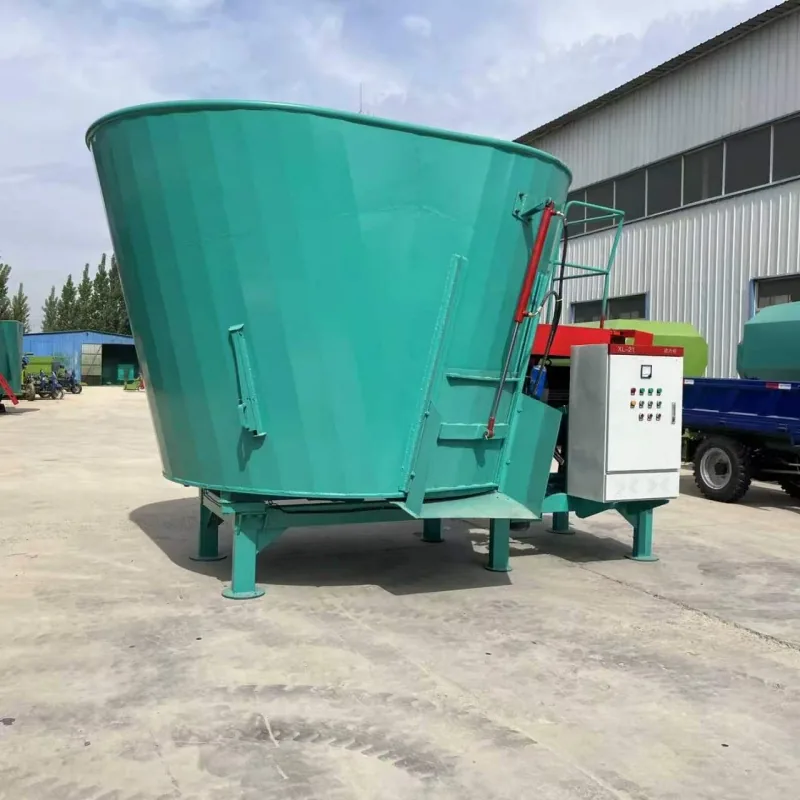

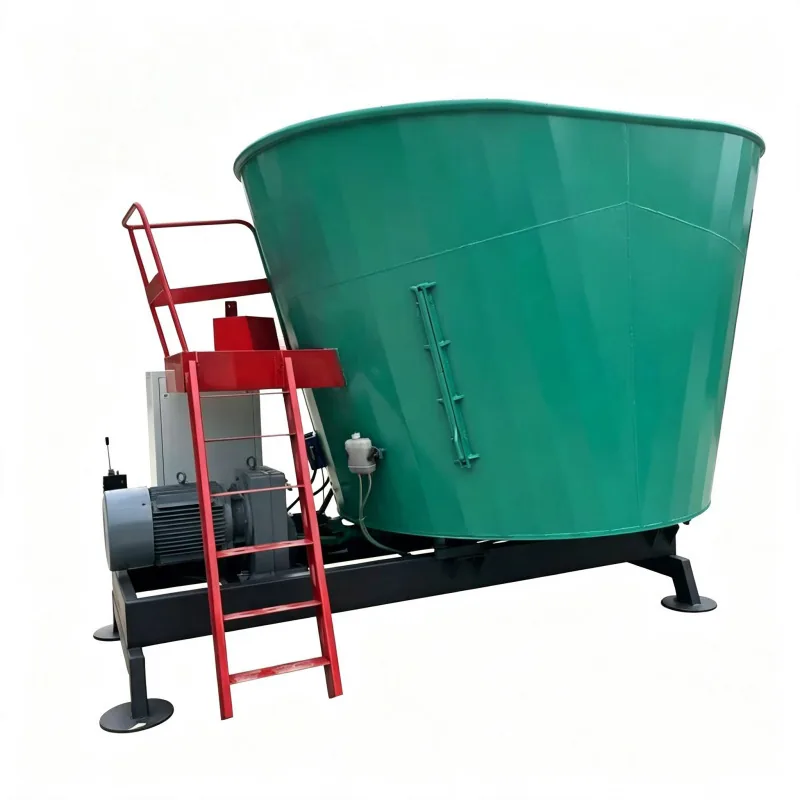

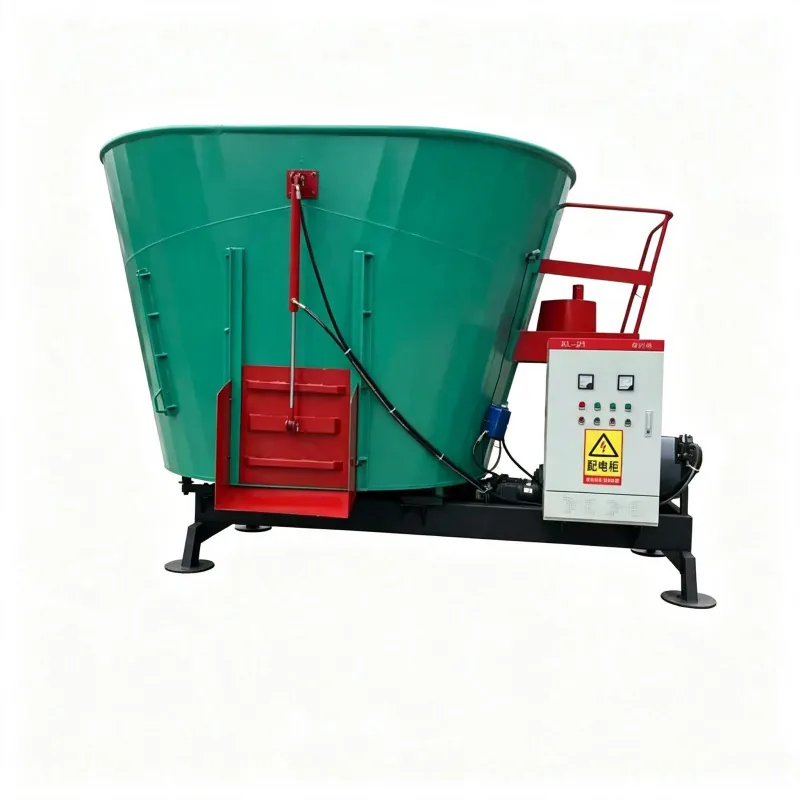

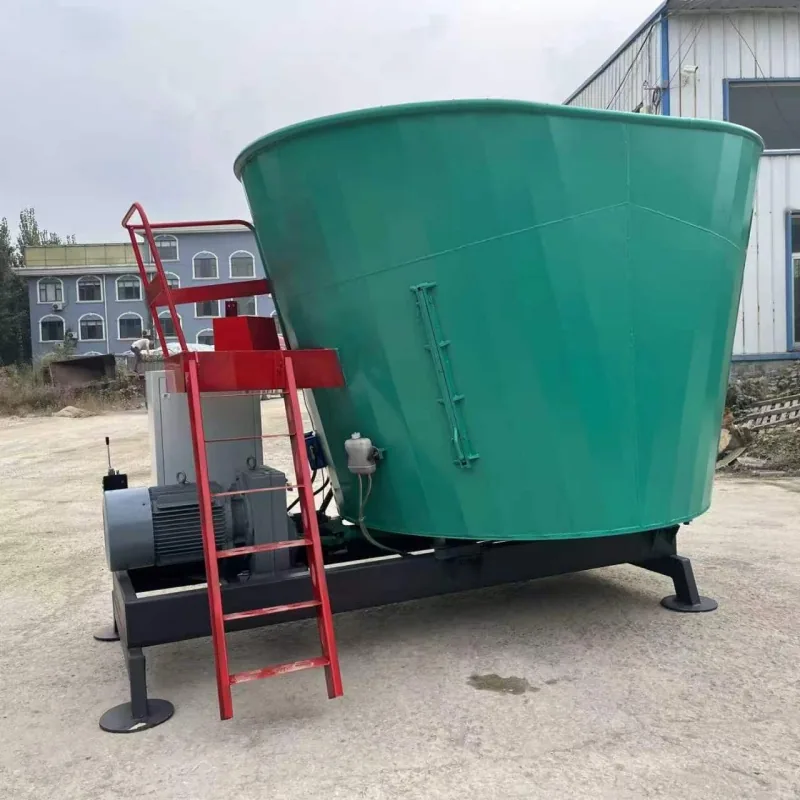

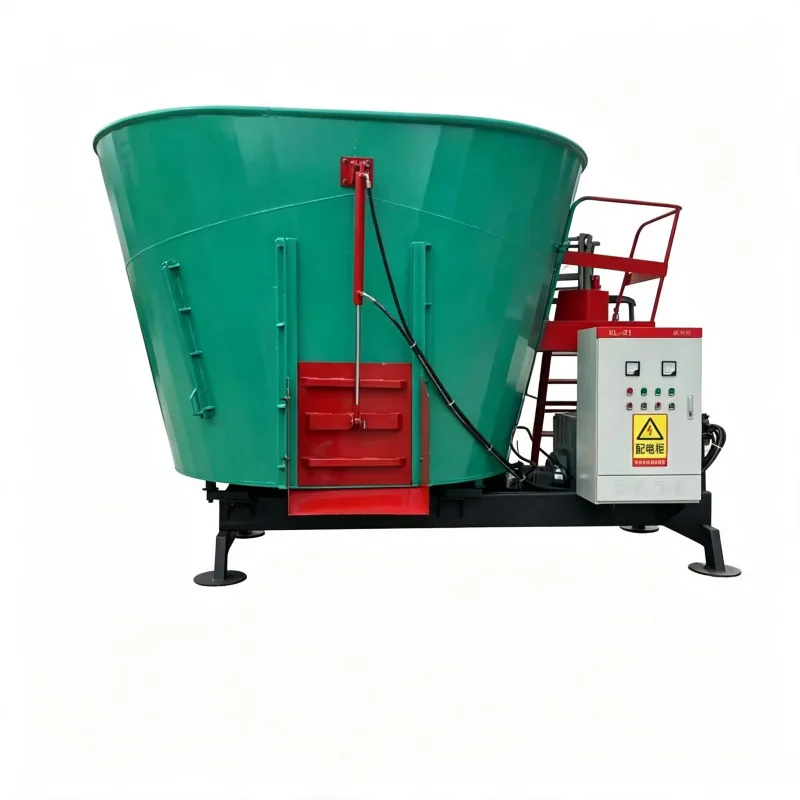

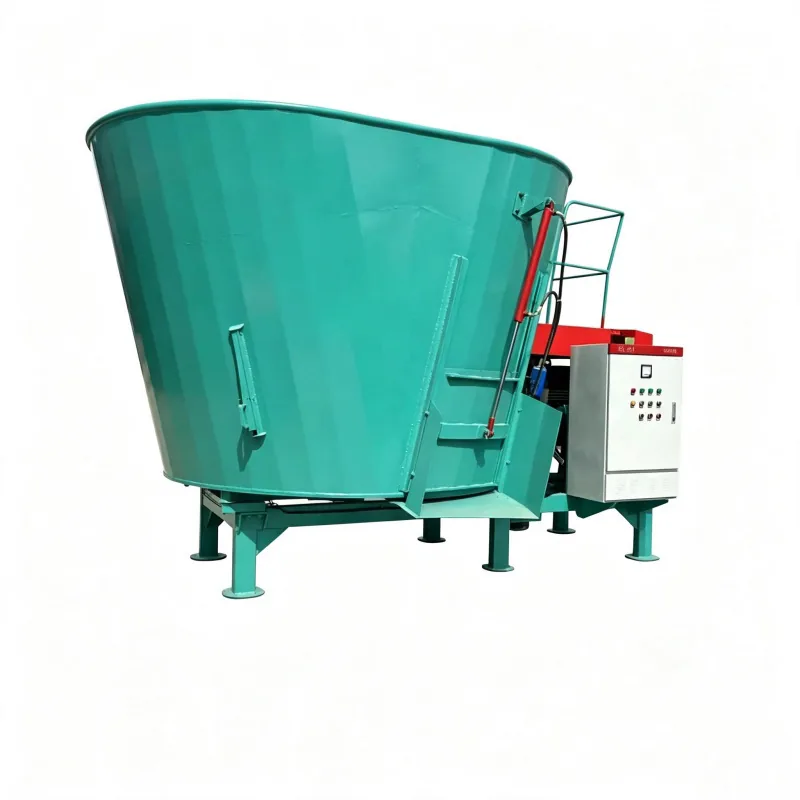

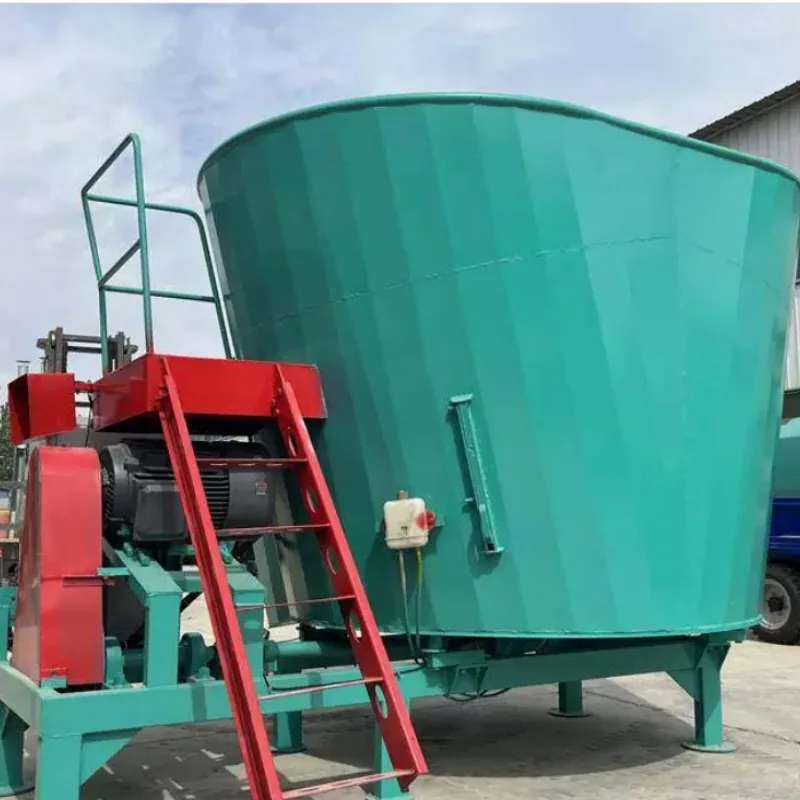

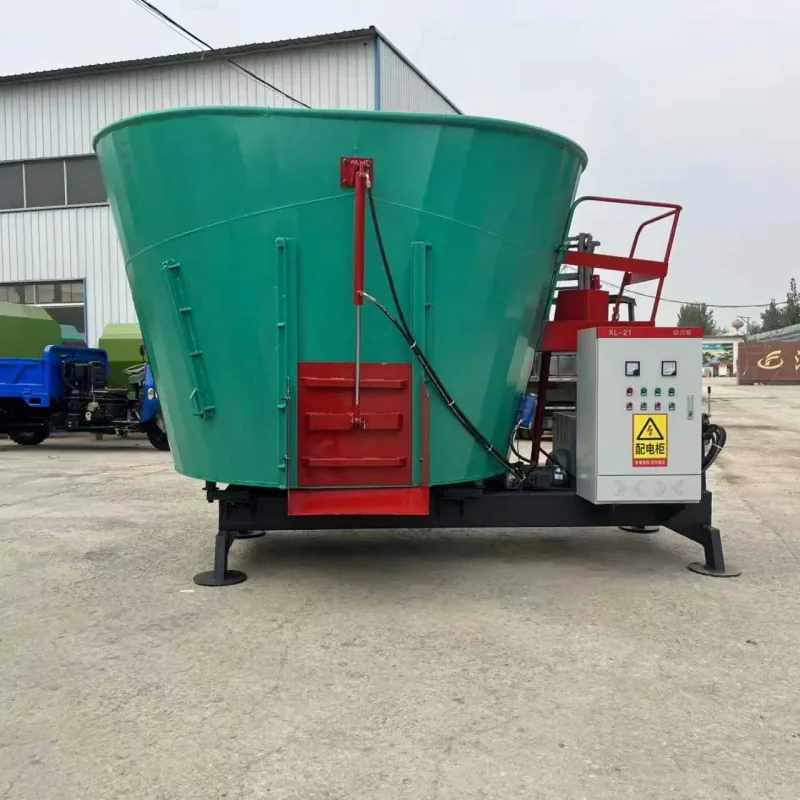

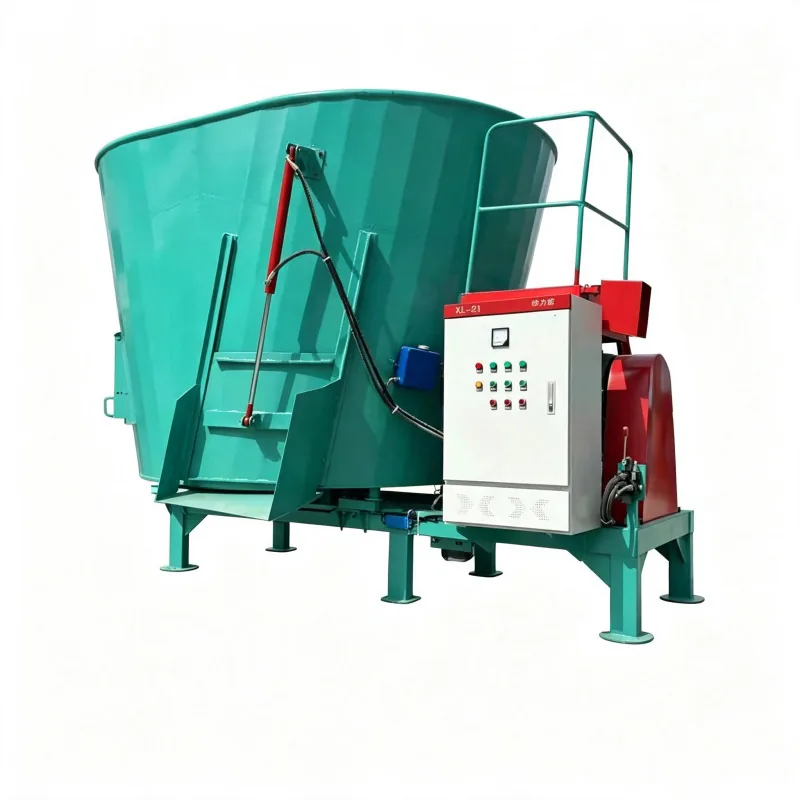

Stationary Vertical TMR Mixer
A fixed vertical TMR mixing station for farms and feed preparation lines that transfer the finished ration to a separate distribution vehicle. Available in 5 m³ and 9 m³ configurations, it combines heavy plate construction, manganese-steel knives and electronic weighing for repeatable batches.
Technical overview
ModelAN-9JCL-5 / AN-9JCL-9
Rated capacity5 m³ / 9 m³
Rated power18.5 kW / 30 kW
Productivity3 t/h / 5–6 t/h
Overall dimensions3100 × 2030 × 2150 mm / 4000 × 2300 × 2500 mm
Machine weight2.1 t / 3.2 t
Main shaft speed23 r/min
Weighing4 load cells with XK3190-A6 indicator
Knife arrangement7 large / 8 large + 12 small manganese knives
Electrical control9 m³ model includes soft-start cabinet
Engineering advantages
Practical machine advantages
5 m³ and 9 m³ versions cover different batch and herd requirements.

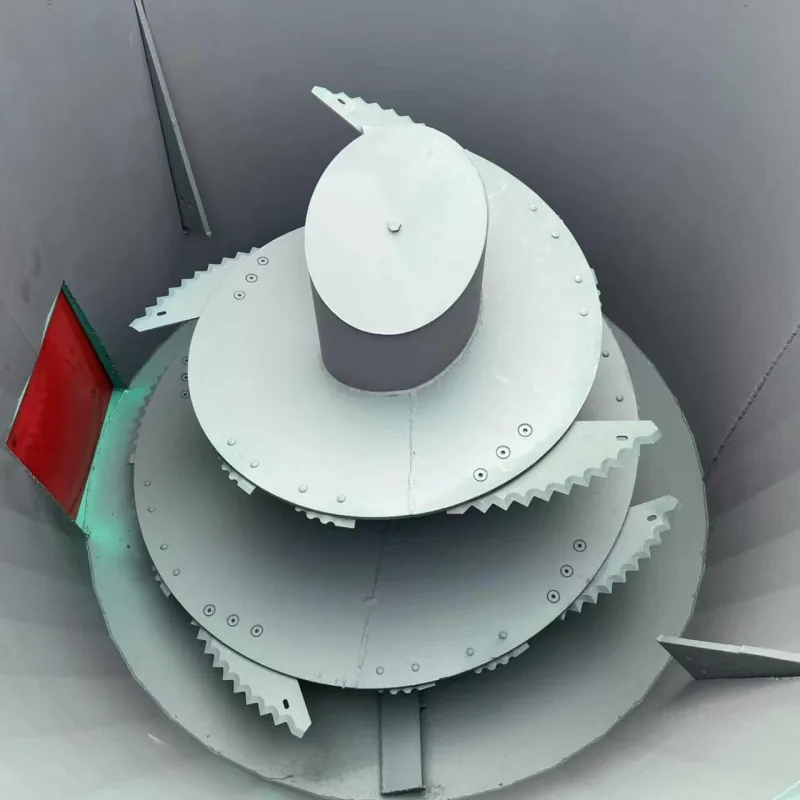

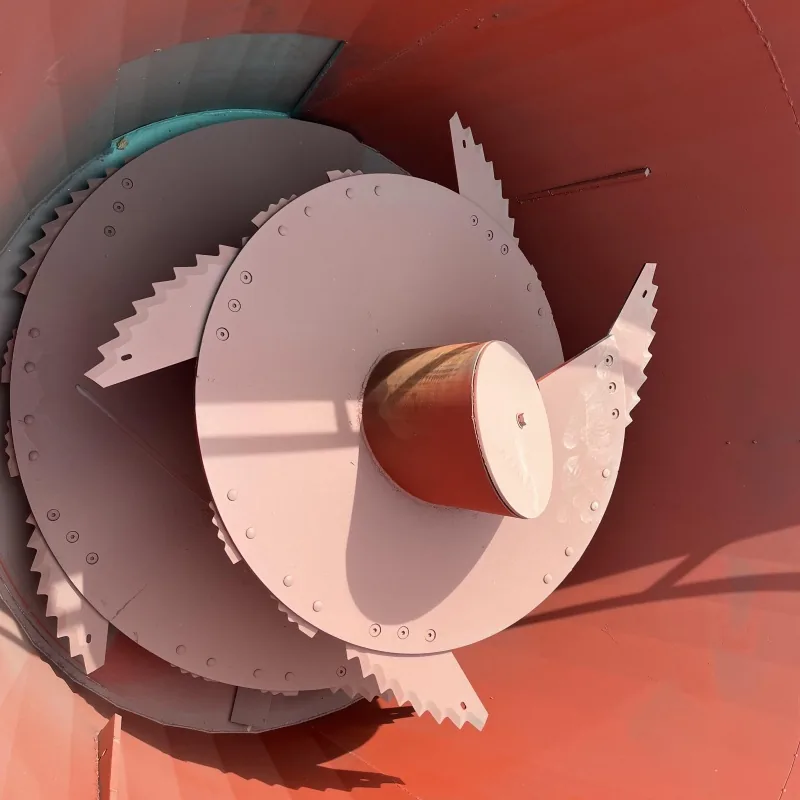

Vertical auger and manganese-steel knives process forage into a uniform ration.
Four load cells support recipe control and repeatable loading.
Heavy bottom and side plates are specified for sustained stationary use.

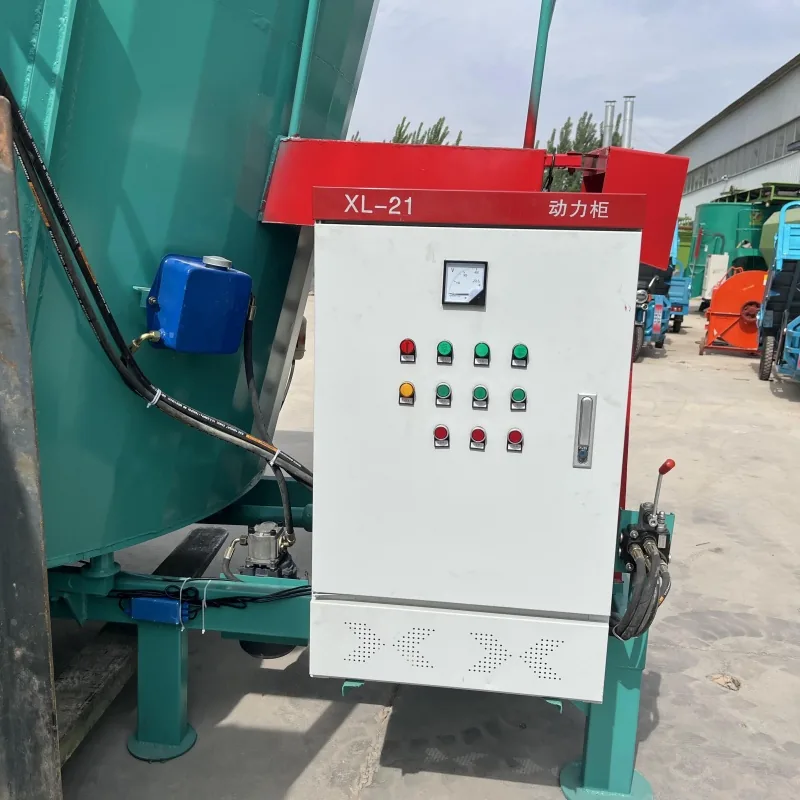

9 m³ model includes a soft-start control cabinet.
Fixed installation integrates with conveyors or separate feed-distribution vehicles.
Operating instructions
Recommended operating flow
Follow the supplied machine manual and your farm safety rules. Confirm the ordered configuration before operation.
Tare and load
Zero the weighing system and add ingredients in the planned sequence.
Mix to specification
Run the auger for the required time and monitor load and ration condition.
Transfer the ration

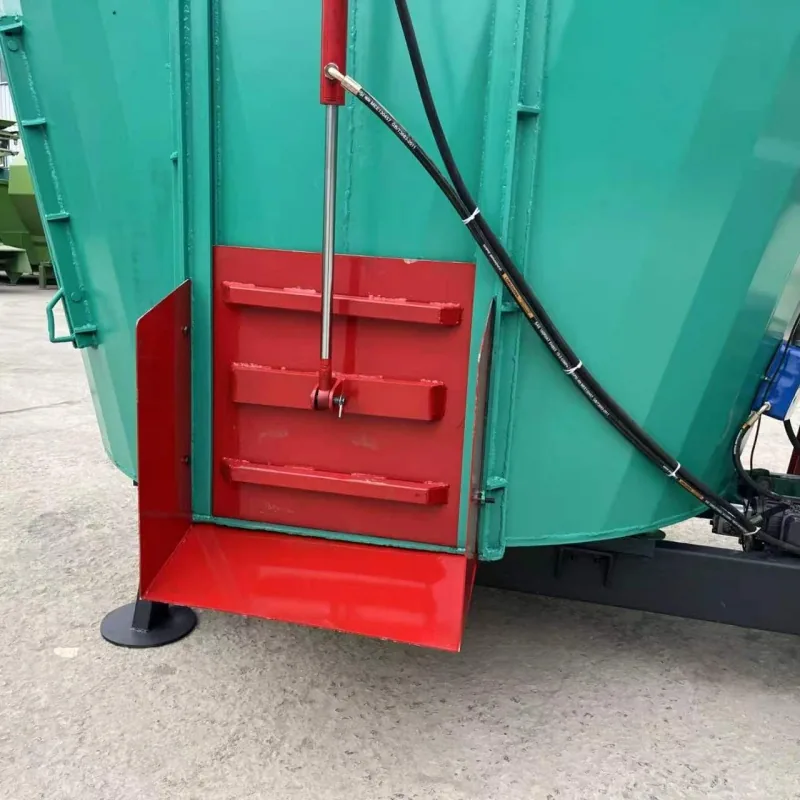

Discharge to the receiving conveyor or feed vehicle, then isolate power for cleaning.
Before starting
- Inspect guards, fasteners and working components.
- Confirm fuel, power or tractor connection as applicable.
- Clear people and obstacles from the work area.
Safety essentials
- Only trained personnel should operate the machine.
- Stop and isolate power before clearing a blockage.
- Keep bystanders away from moving and discharge parts.
Daily maintenance
- Remove residual material after each shift.
- Inspect wear parts, hoses and fasteners regularly.
- Lubricate and service the machine according to the manual.
Before ordering
Information needed to match your configuration
Rated capacity
Rated power
Working requirement
Destination country
Specification
| Parameter | Value |
|---|---|
| Model | AN-9JCL-5 / AN-9JCL-9 |
| Rated capacity | 5 m³ / 9 m³ |
| Rated power | 18.5 kW / 30 kW |
| Productivity | 3 t/h / 5–6 t/h |
| Overall dimensions | 3100 × 2030 × 2150 mm / 4000 × 2300 × 2500 mm |
| Machine weight | 2.1 t / 3.2 t |
| Main shaft speed | 23 r/min |
| Weighing | 4 load cells with XK3190-A6 indicator |
| Knife arrangement | 7 large / 8 large + 12 small manganese knives |
| Electrical control | 9 m³ model includes soft-start cabinet |
