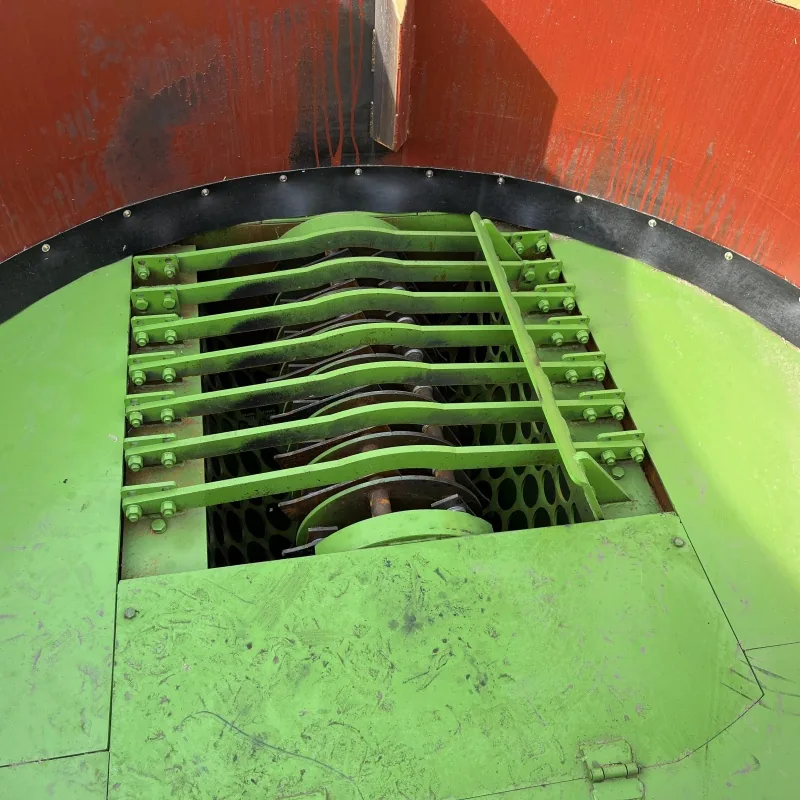

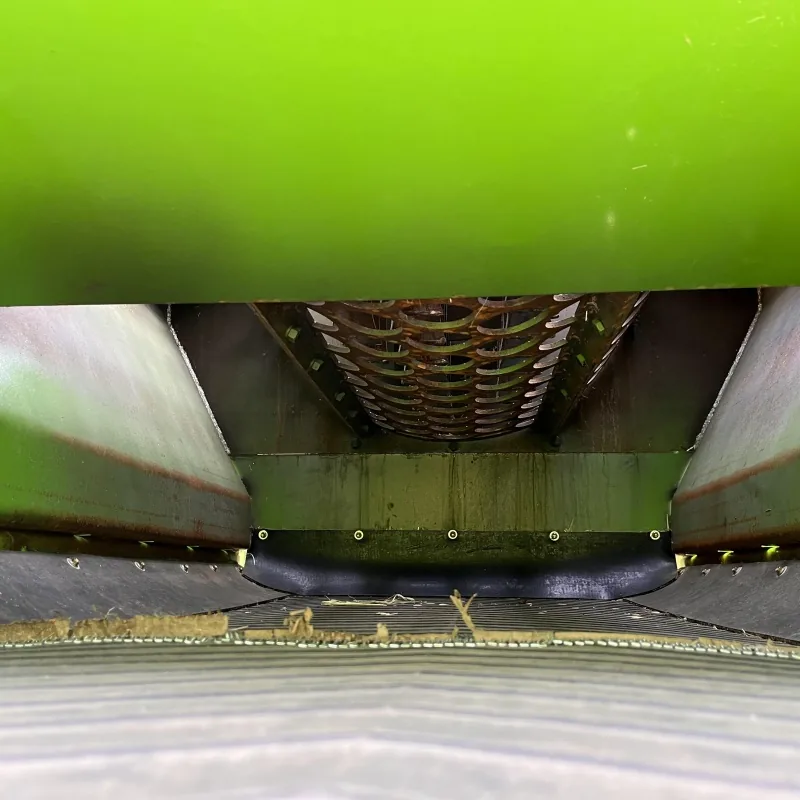

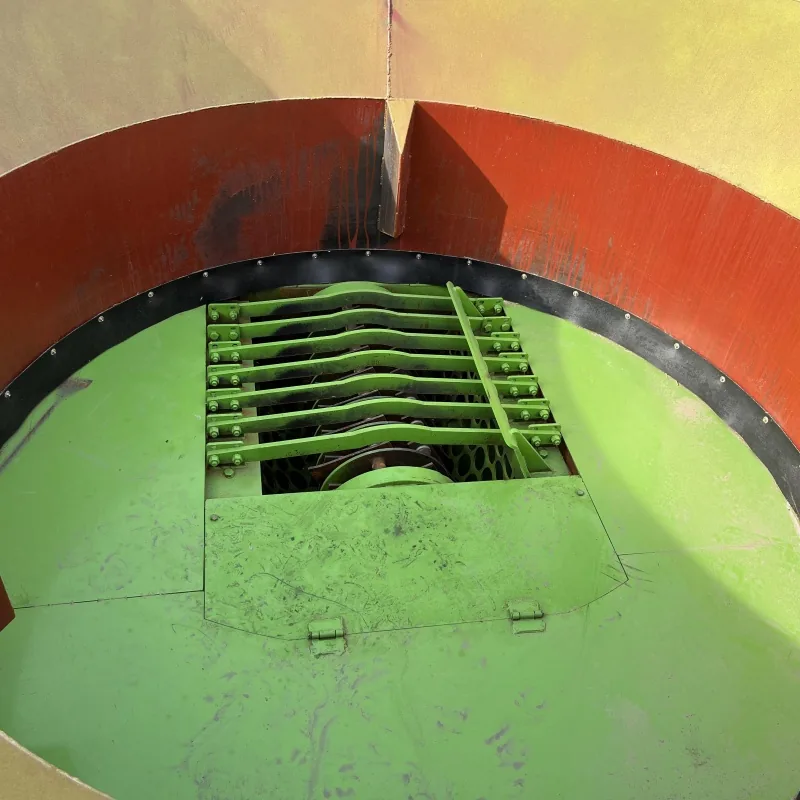

Inspect the cutting chamber
Confirm blades, fasteners, guards and discharge path are secure and clear.
STRAW PROCESSINGRequest a quote: AN-KL-80 →Chat with Sales EngineerRead Operating Instructions ↓

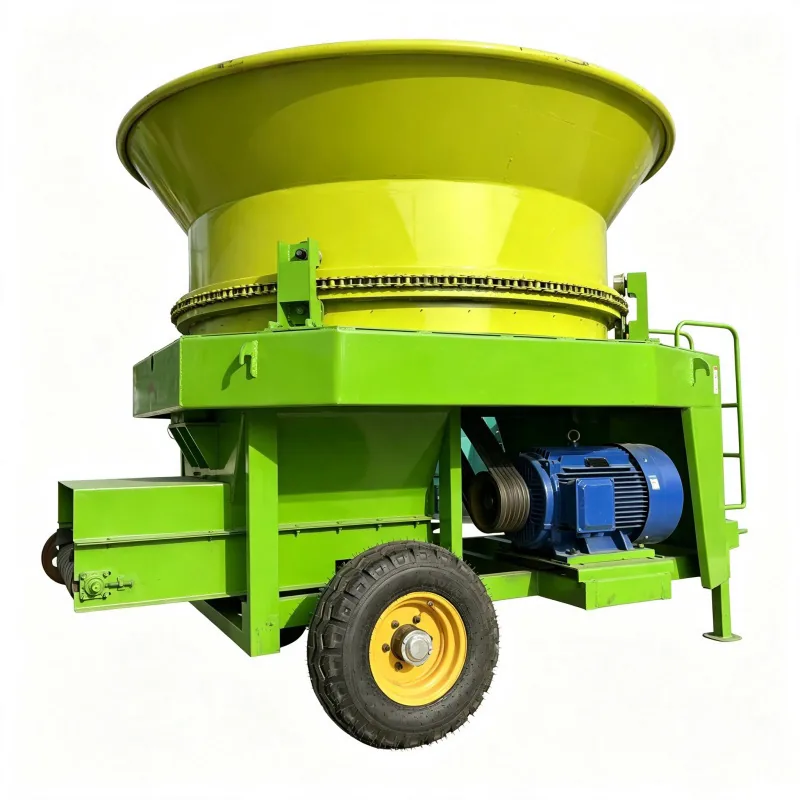

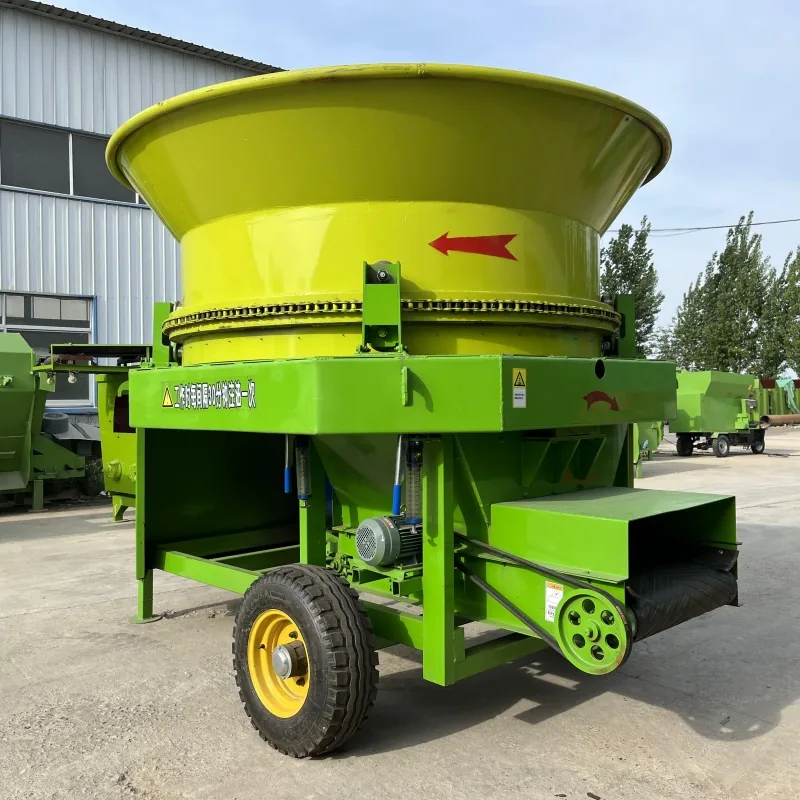

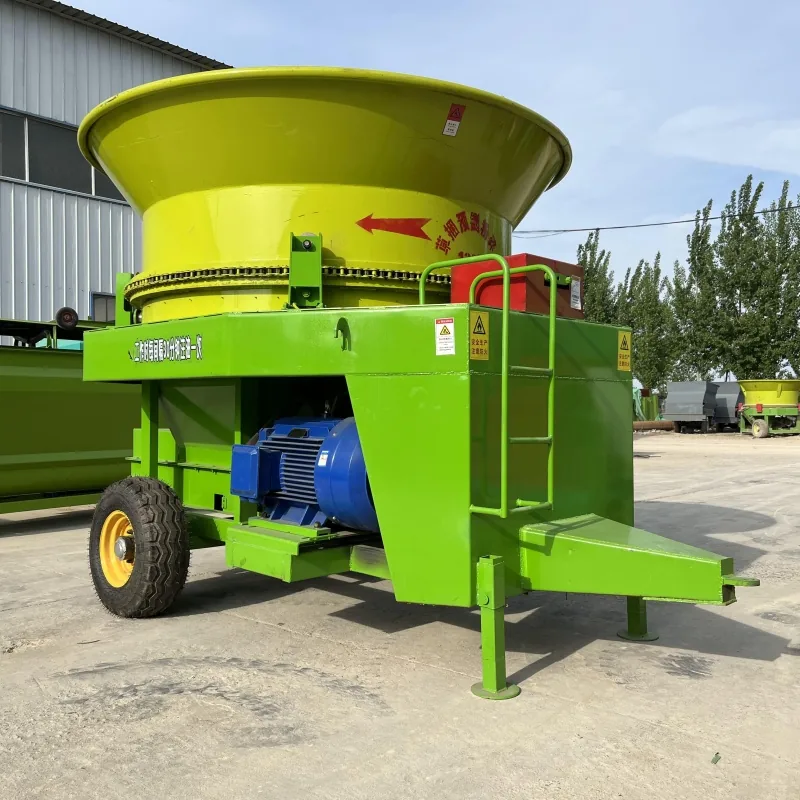

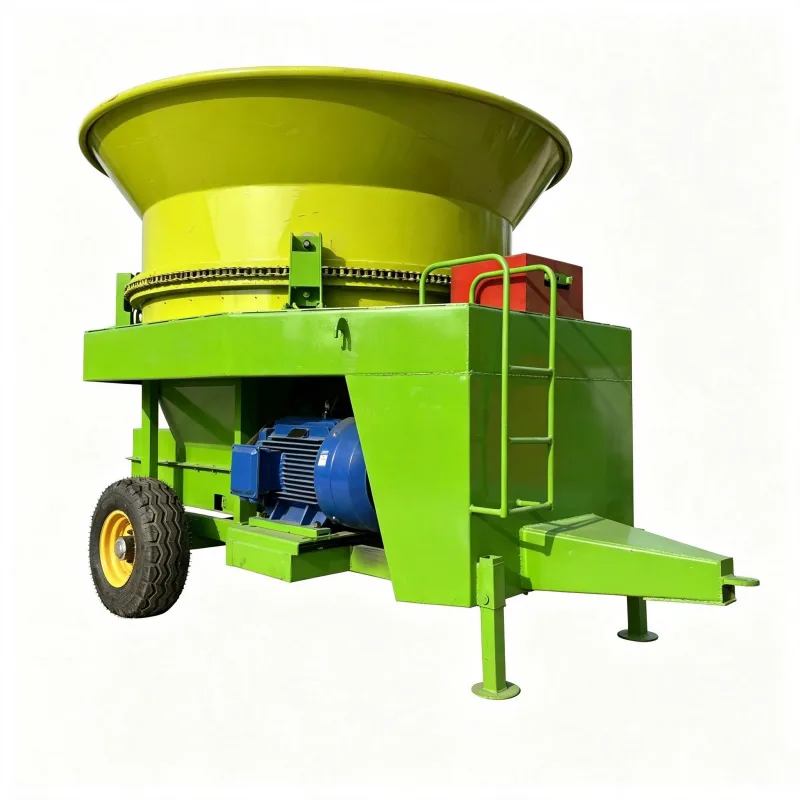

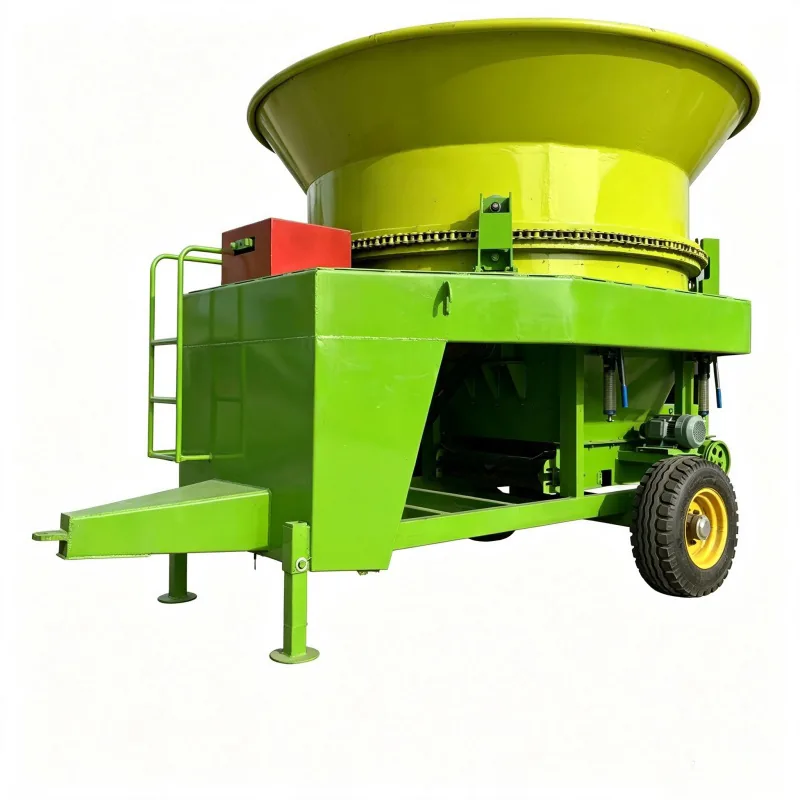

Straw Disc Pulverizer
A high-capacity disc pulverizer for cutting crop straw into shorter material for livestock feed preparation or downstream processing. The AN-KL-80 uses a 24-blade disc and can be supplied with an optional discharge conveyor to suit the plant layout.
Technical overview
ModelAN-KL-80
Rated capacity2–3 t/h
Rated power22 kW*
Finished length30–80 mm
Blade quantity24
Upper disc diameter2,100 mm
Lower disc diameter1,700 mm
Overall dimensions3.75 × 2.1 × 2.2 m
Machine weight1,100 kg
Discharge conveyorOptional
Engineering advantages
Practical machine advantages
24-blade cutting disc processes straw into 30–80 mm material.
Rated throughput of 2–3 t/h supports continuous farm or feed-yard work.
Wide upper opening simplifies loading of bulky straw.

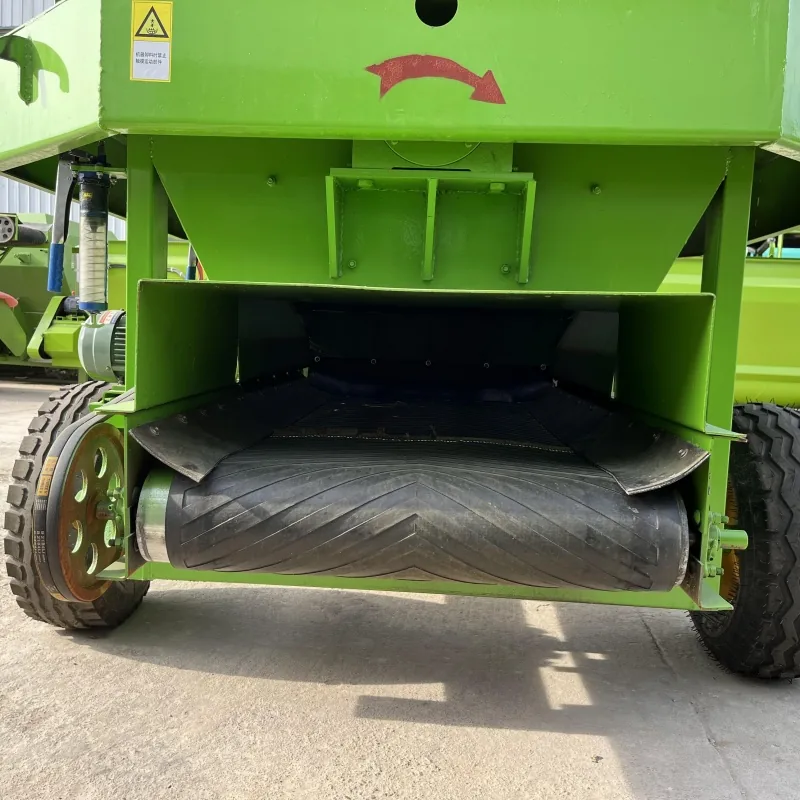

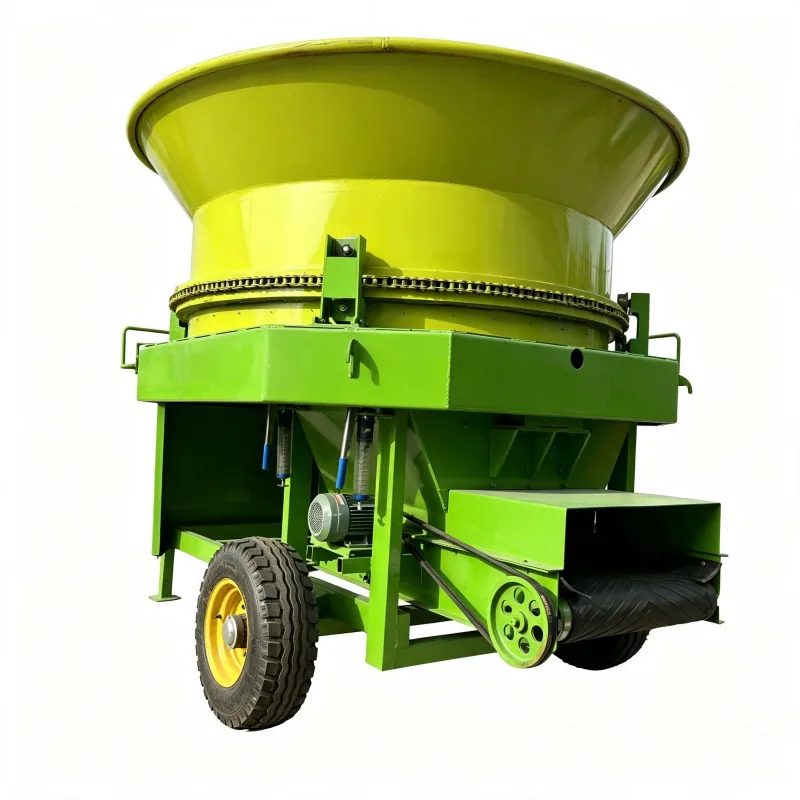

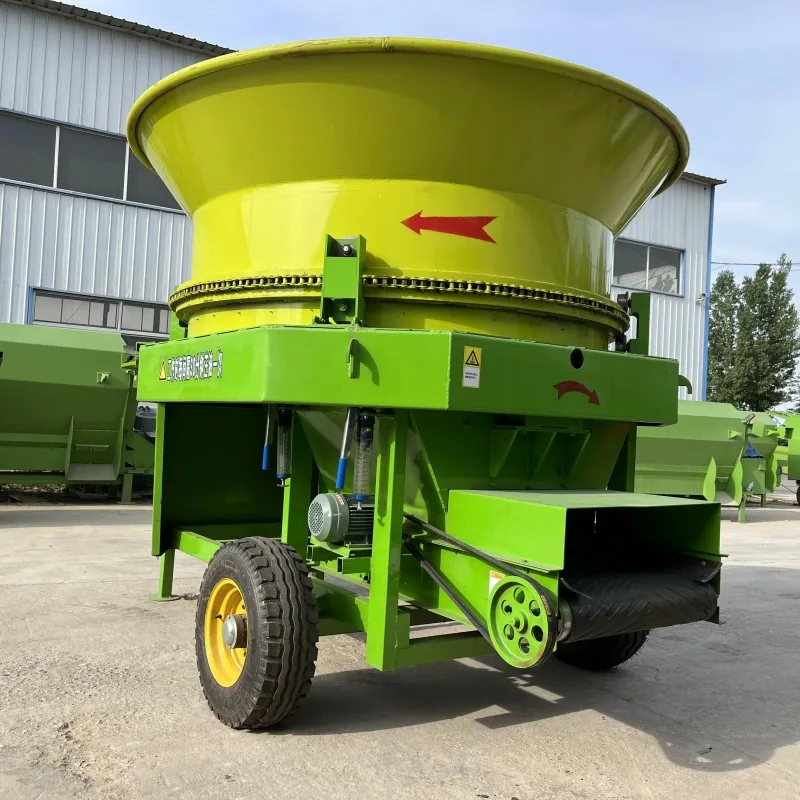

Optional discharge conveyor can feed the next process or collection point.

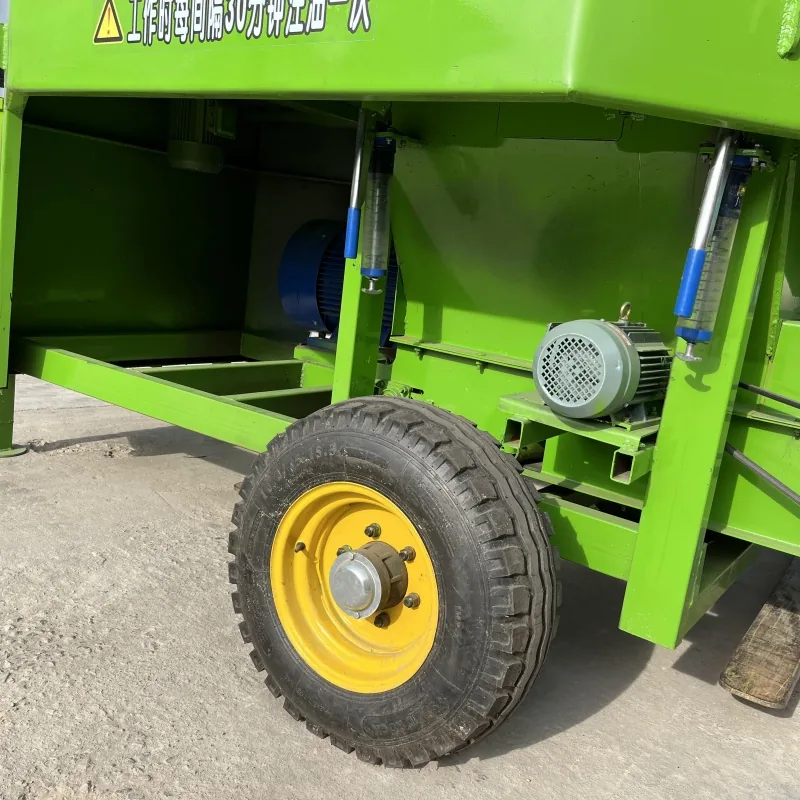

Mobile frame makes layout changes easier than a fixed installation.
Simple mechanical arrangement supports practical servicing.
Operating instructions
Recommended operating flow
Follow the supplied machine manual and your farm safety rules. Confirm the ordered configuration before operation.
Start without load
Run the machine briefly and check for abnormal vibration or noise.
Feed straw steadily
Introduce material at a controlled rate without exceeding the rated capacity.
Stop and clean
Allow the chamber to empty, isolate power and remove residual material safely.
Before starting
- Inspect guards, fasteners and working components.
- Confirm fuel, power or tractor connection as applicable.
- Clear people and obstacles from the work area.
Safety essentials
- Only trained personnel should operate the machine.
- Stop and isolate power before clearing a blockage.
- Keep bystanders away from moving and discharge parts.
Daily maintenance
- Remove residual material after each shift.
- Inspect wear parts, hoses and fasteners regularly.
- Lubricate and service the machine according to the manual.
Before ordering
Information needed to match your configuration
Rated capacity
Rated power
Working requirement
Destination country
Specification
| Parameter | Value |
|---|---|
| Model | AN-KL-80 |
| Rated capacity | 2–3 t/h |
| Rated power | 22 kW* |
| Finished length | 30–80 mm |
| Blade quantity | 24 |
| Upper disc diameter | 2,100 mm |
| Lower disc diameter | 1,700 mm |
| Overall dimensions | 3.75 × 2.1 × 2.2 m |
| Machine weight | 1,100 kg |
| Discharge conveyor | Optional |
Full product gallery

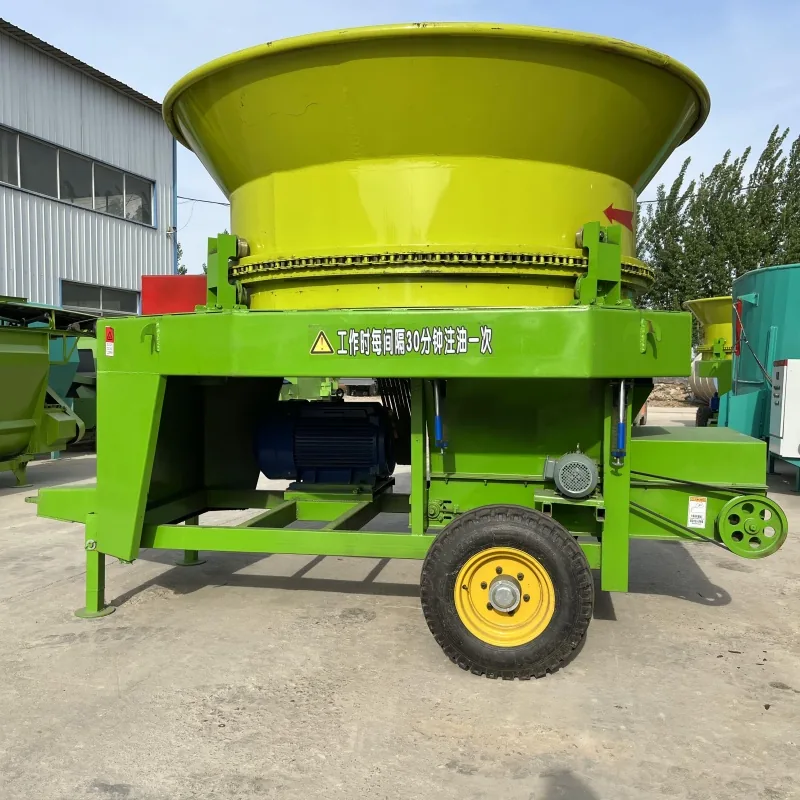

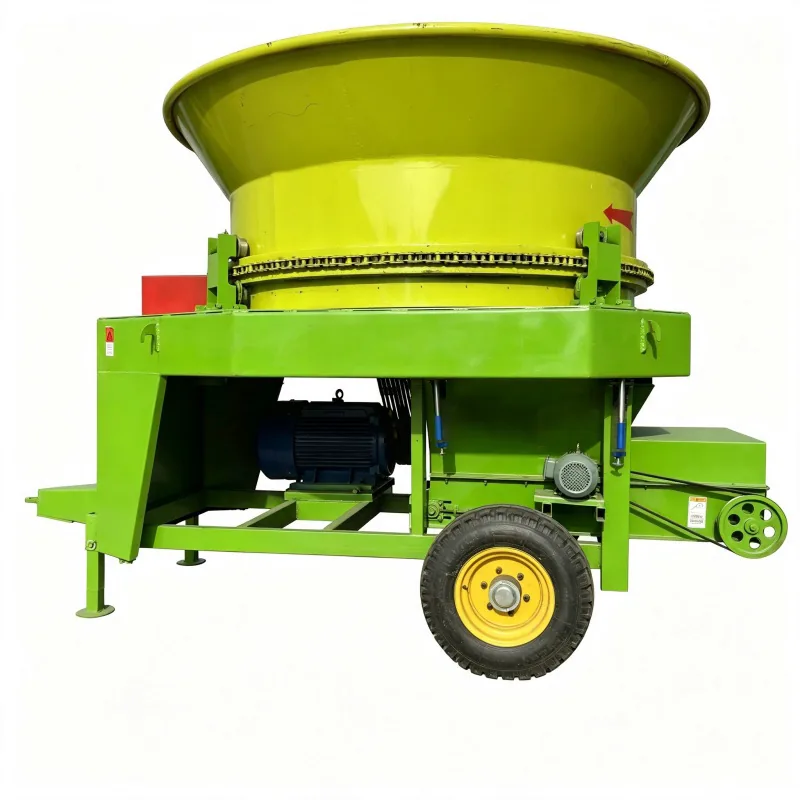

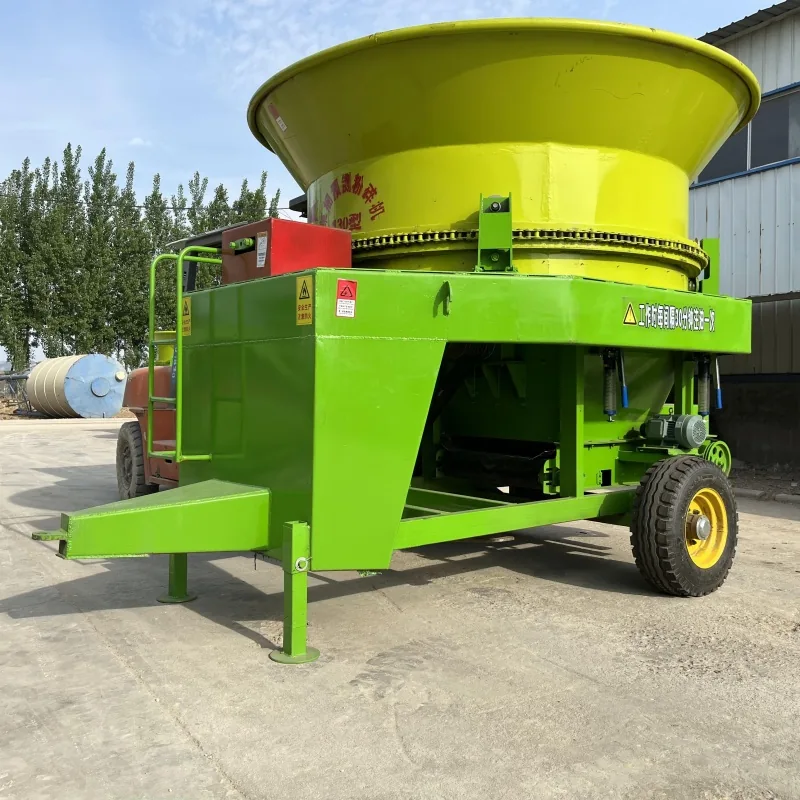

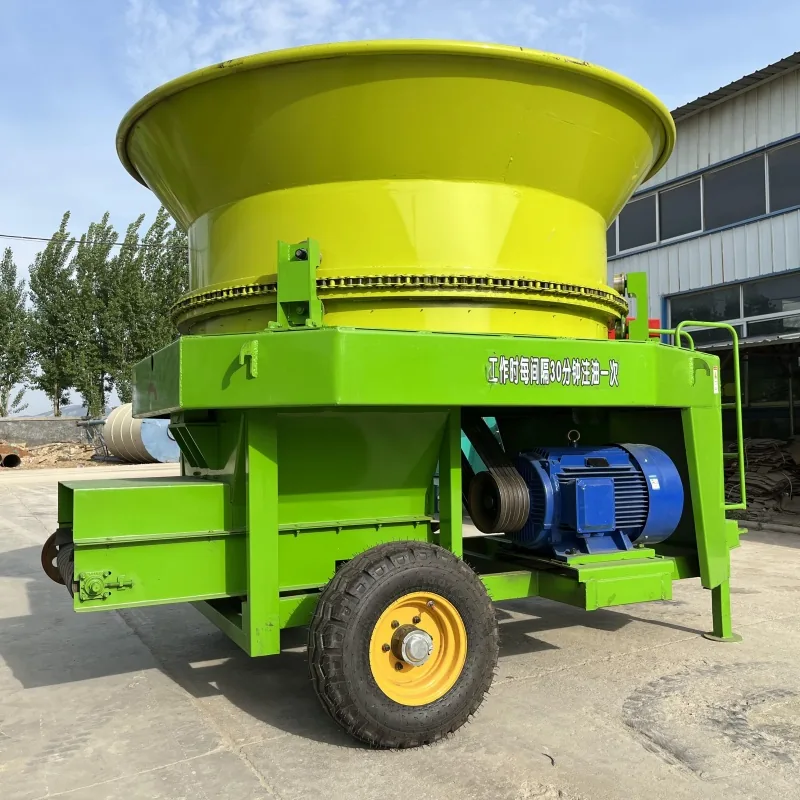

Machine details, loading & working views
Select any image to open a larger view.
Factory to destination
Prepared for export, backed by our factory.
Packing, documentation and export preparation are coordinated before dispatch so your team receives the ordered machine ready for the job.
Export packing
Protective crating and organised loading for international shipment.
Factory production
Assembly and configuration support from the Anlan production base.
Product enquiry
Get a configuration and export quote.
Tell us where the machine will work, your target capacity and destination country. We will confirm the configuration and shipping details.
