Inspect before loading

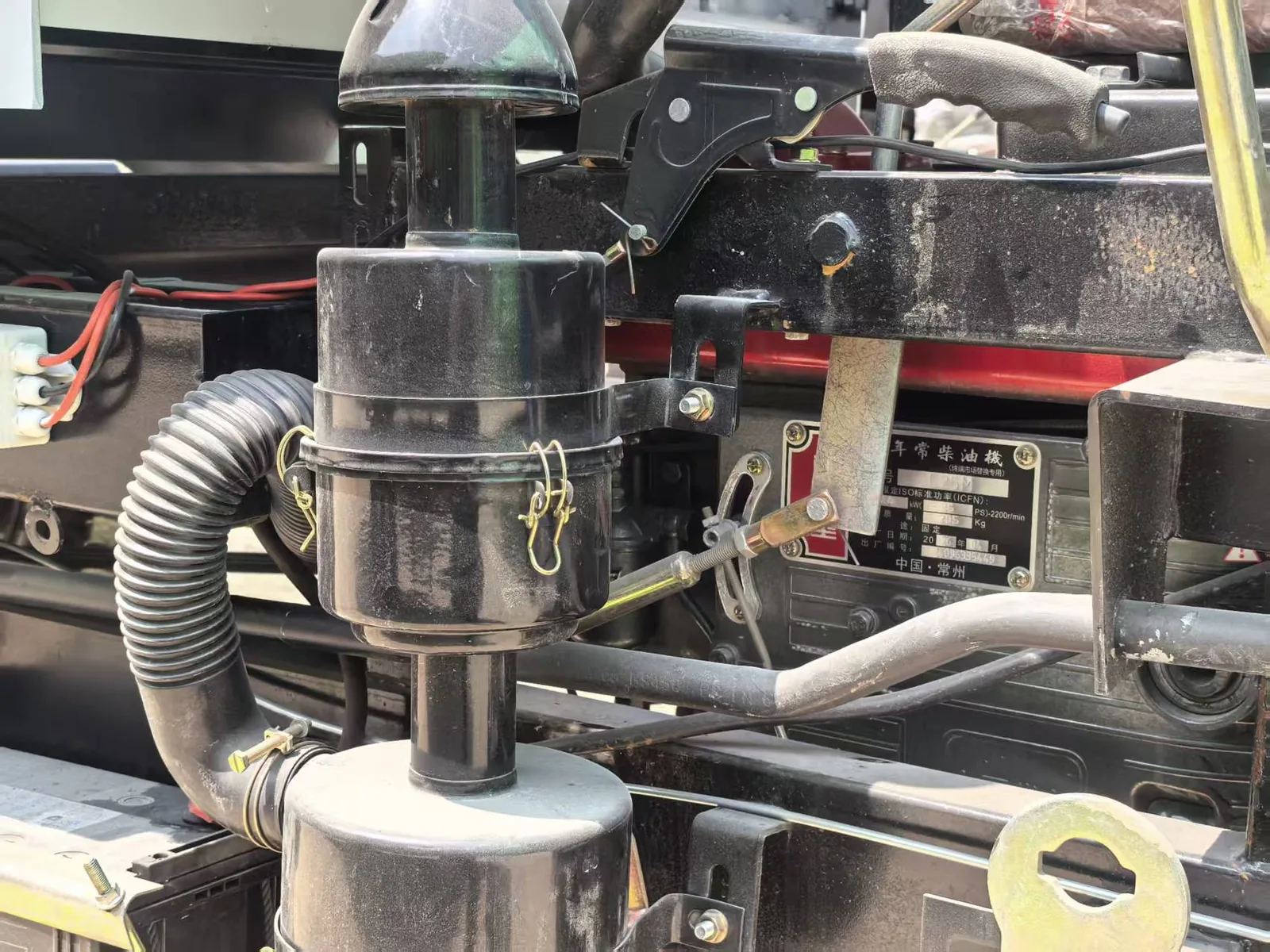

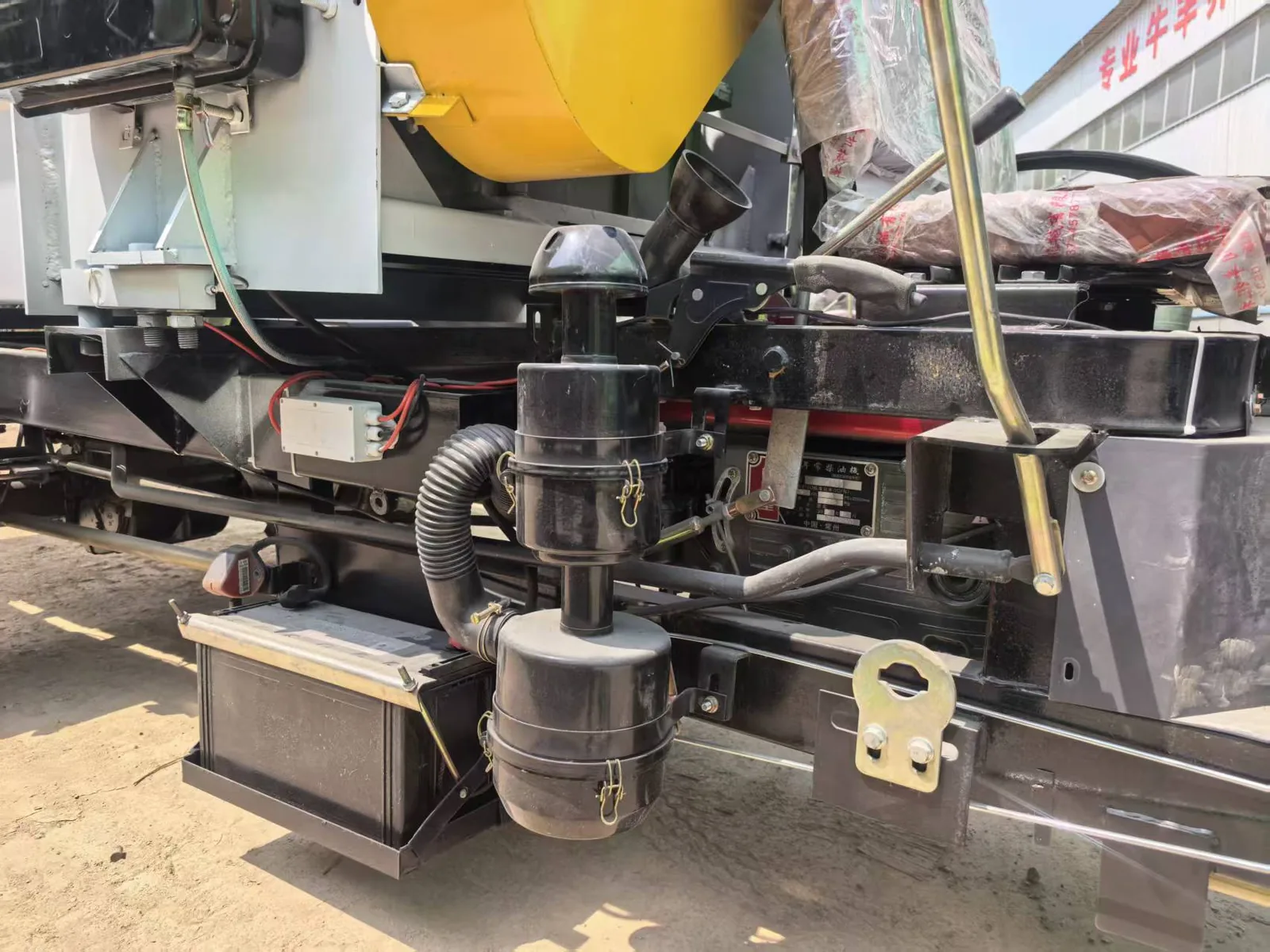

Check both engines, tires, mixer components and hydraulic connections.
SELF-PROPELLED TMR FEEDINGRequest a quote: AN-5M3 →Chat with Sales EngineerRead Operating Instructions ↓

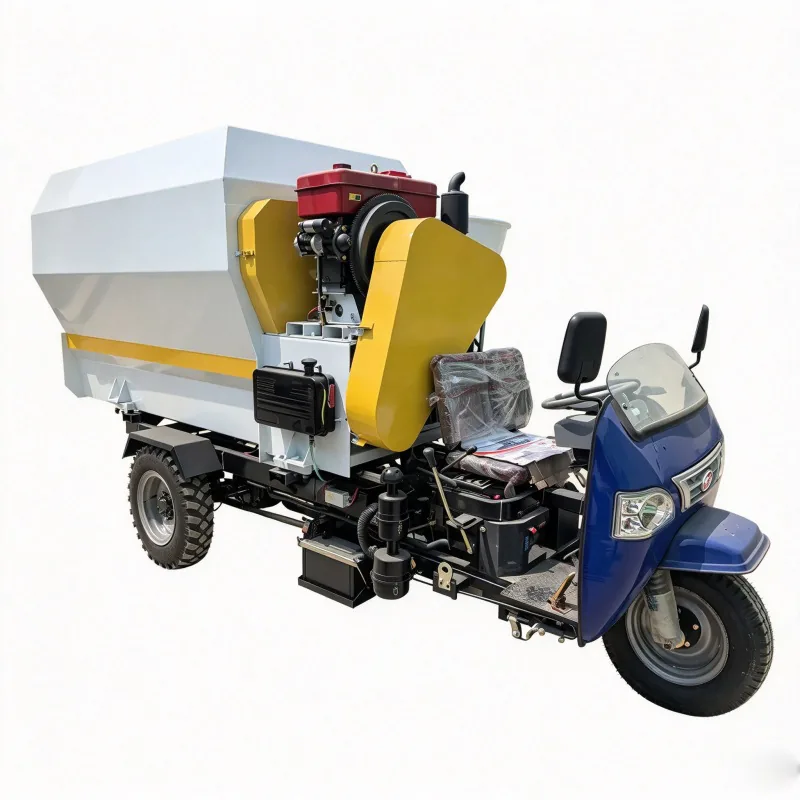

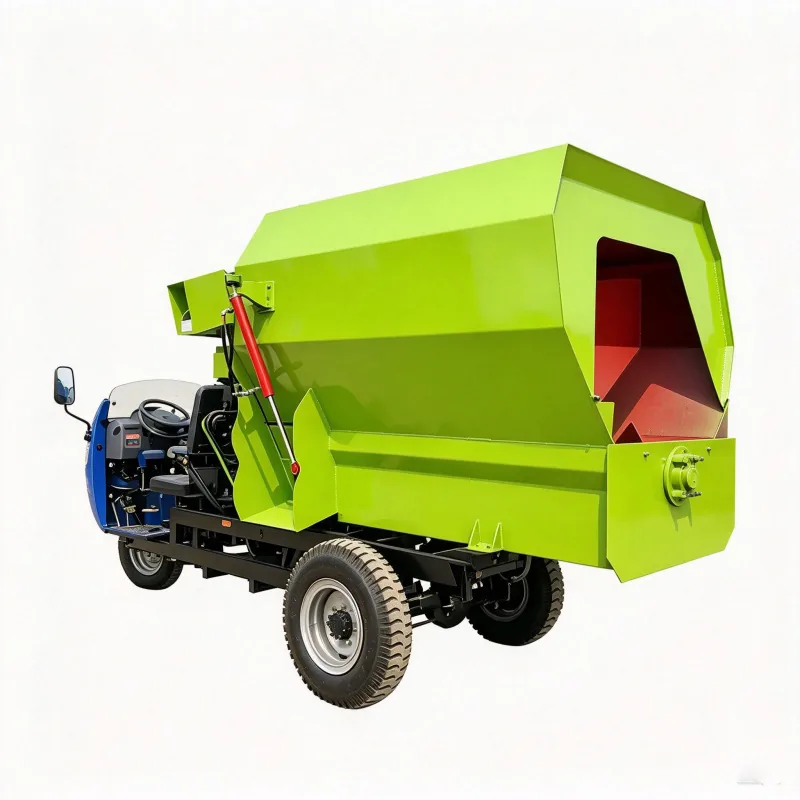

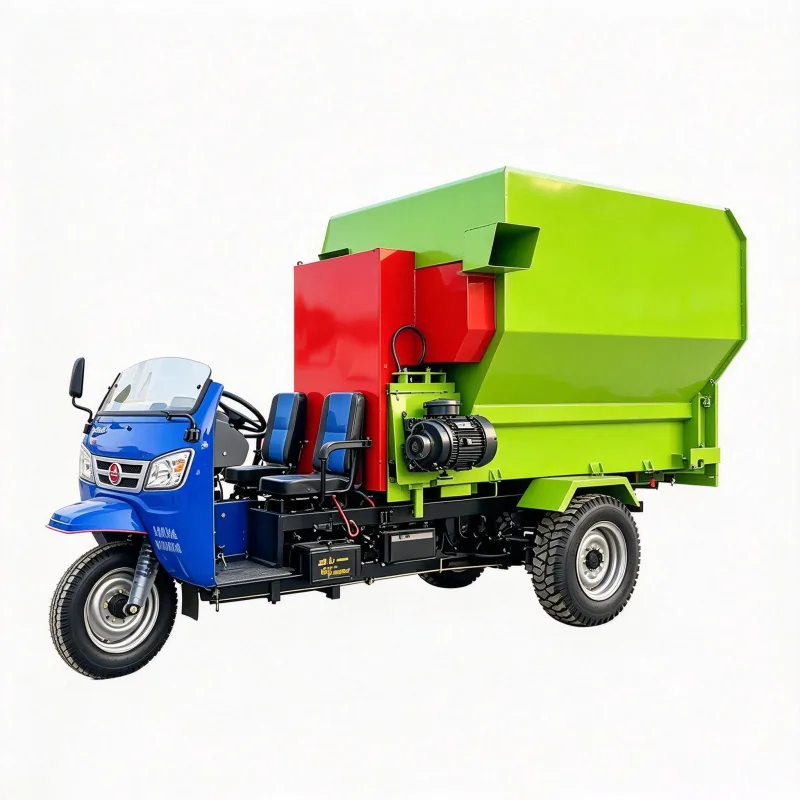

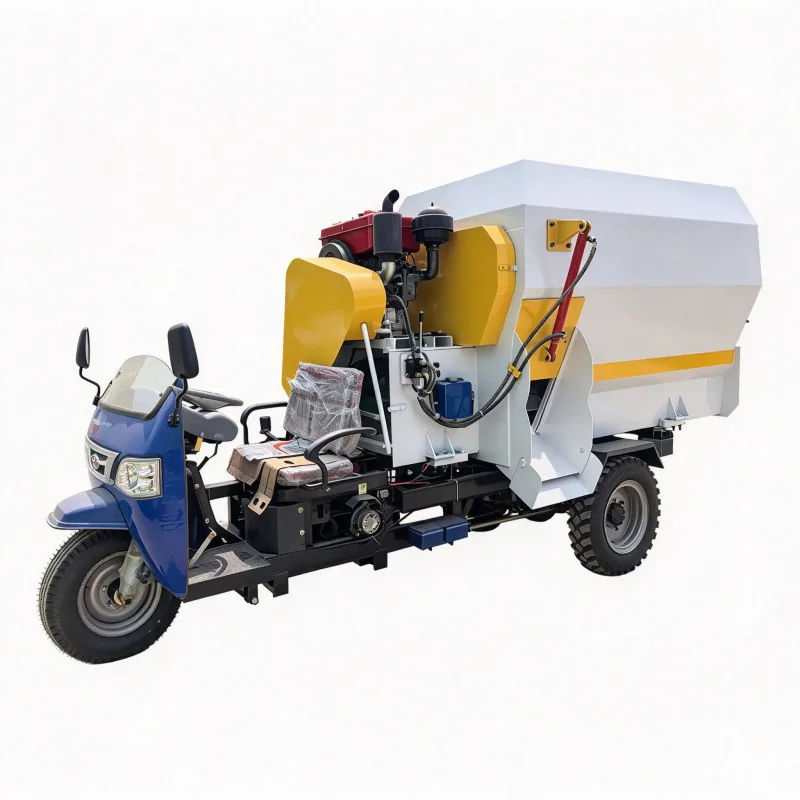

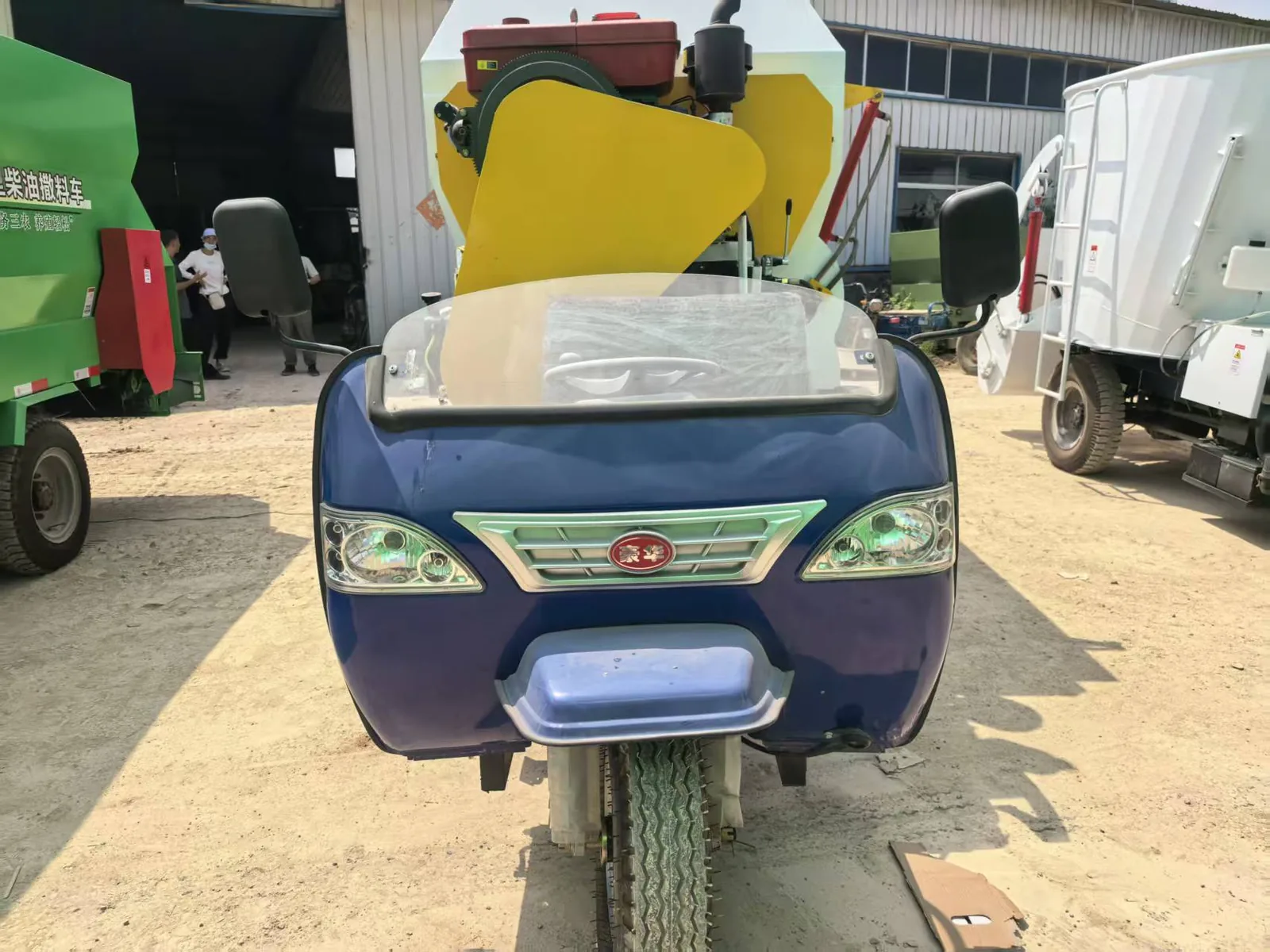

Three-Wheel Horizontal TMR Mixer
A 5 m³ three-wheel horizontal TMR mixer for crushing, blending, transporting and distributing cattle, horse and sheep rations. Separate vehicle and mixing power systems support mobile feeding without a tractor, while hydraulic discharge meters the finished ration at the bunk.
Technical overview
ModelAN-5M3
Rated capacity5 m³
Overall dimensions5.0 × 1.7 × 2.4 m
Mixer box dimensions2.5 × 1.5 × 1.65 m
Machine weight2,500 kg
Vehicle engine25 HP
Mixing / crushing engine32 HP

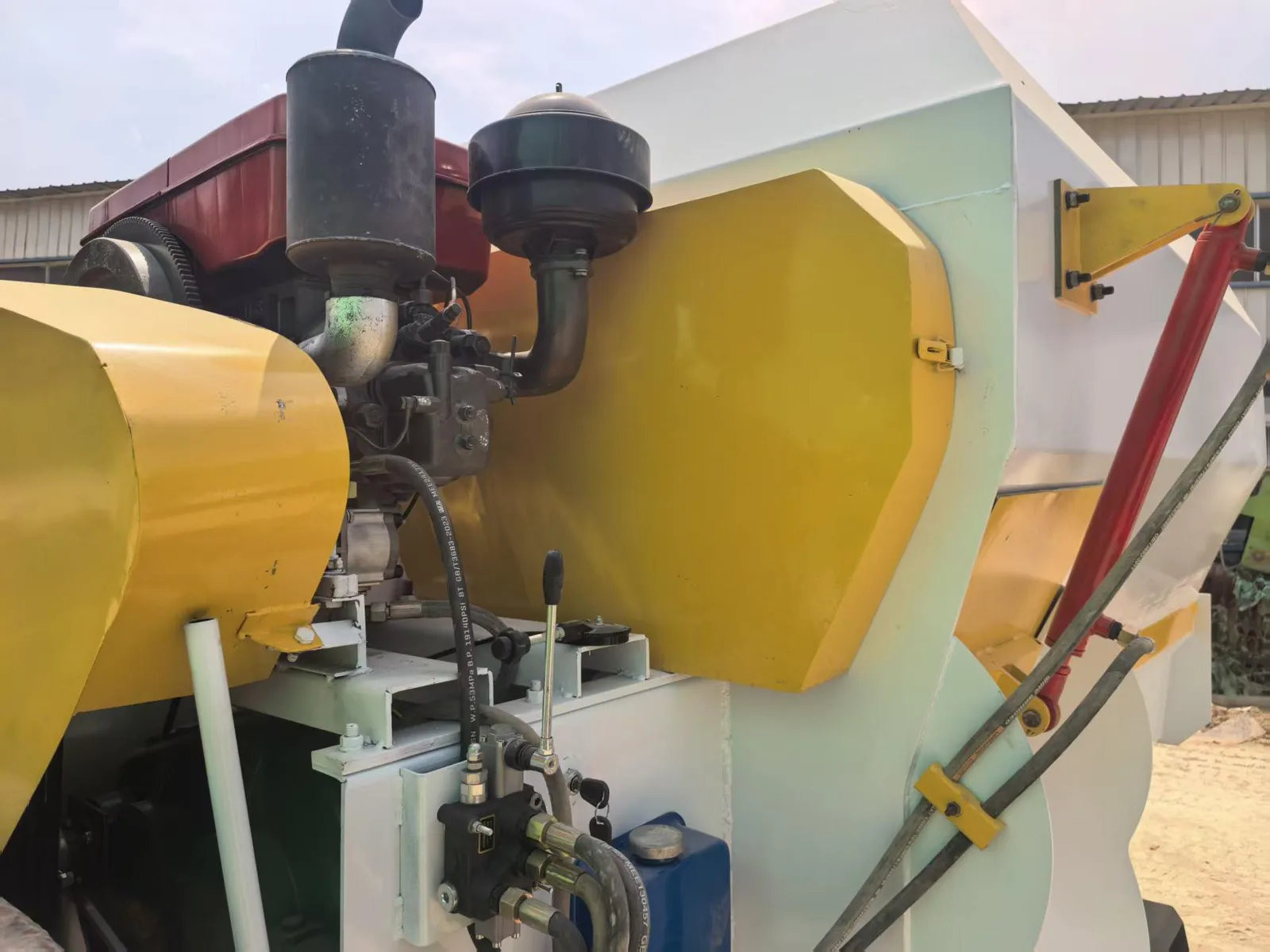

DischargeHydraulic
Starting systemElectric start
Engineering advantages
Practical machine advantages

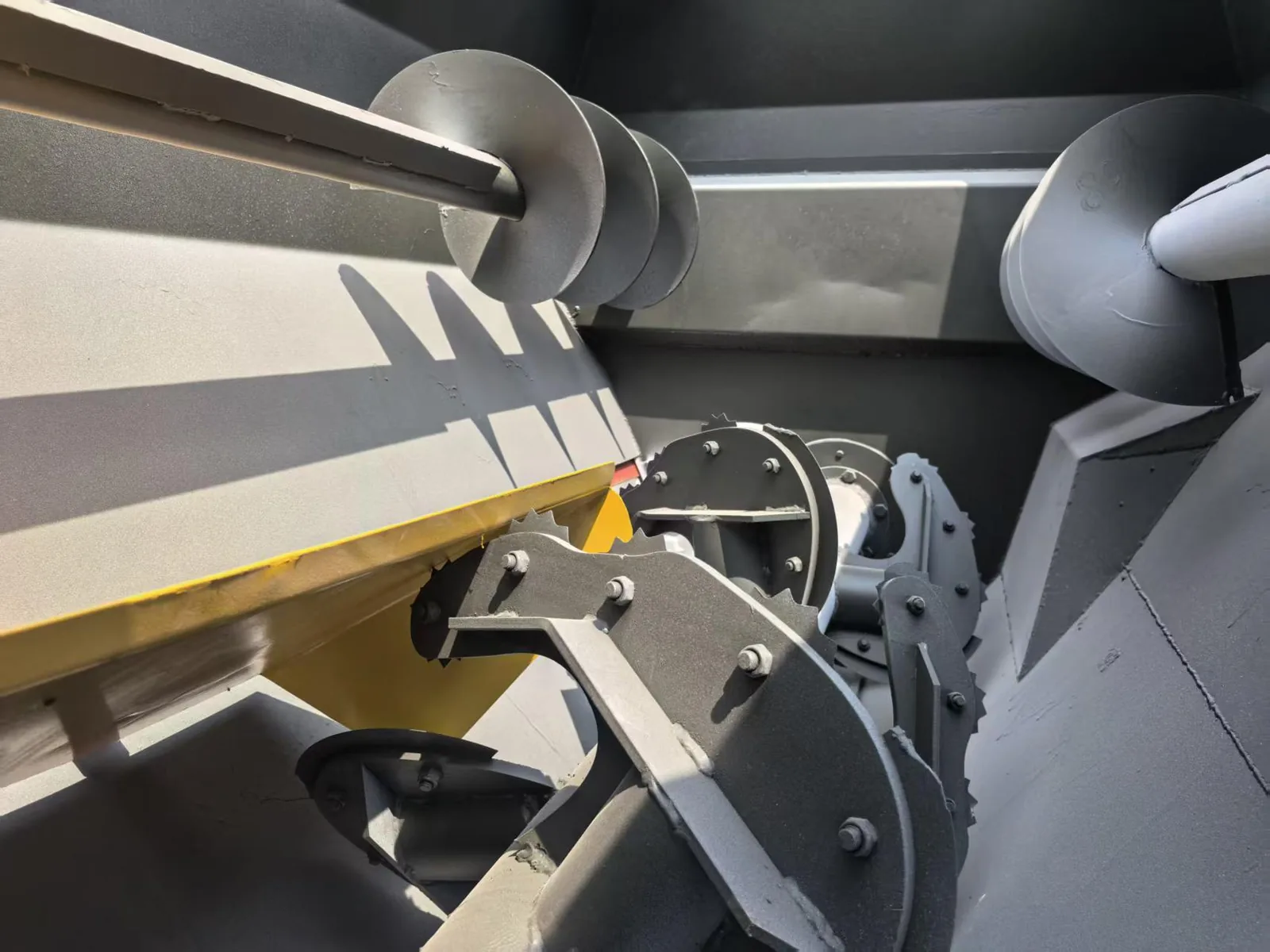

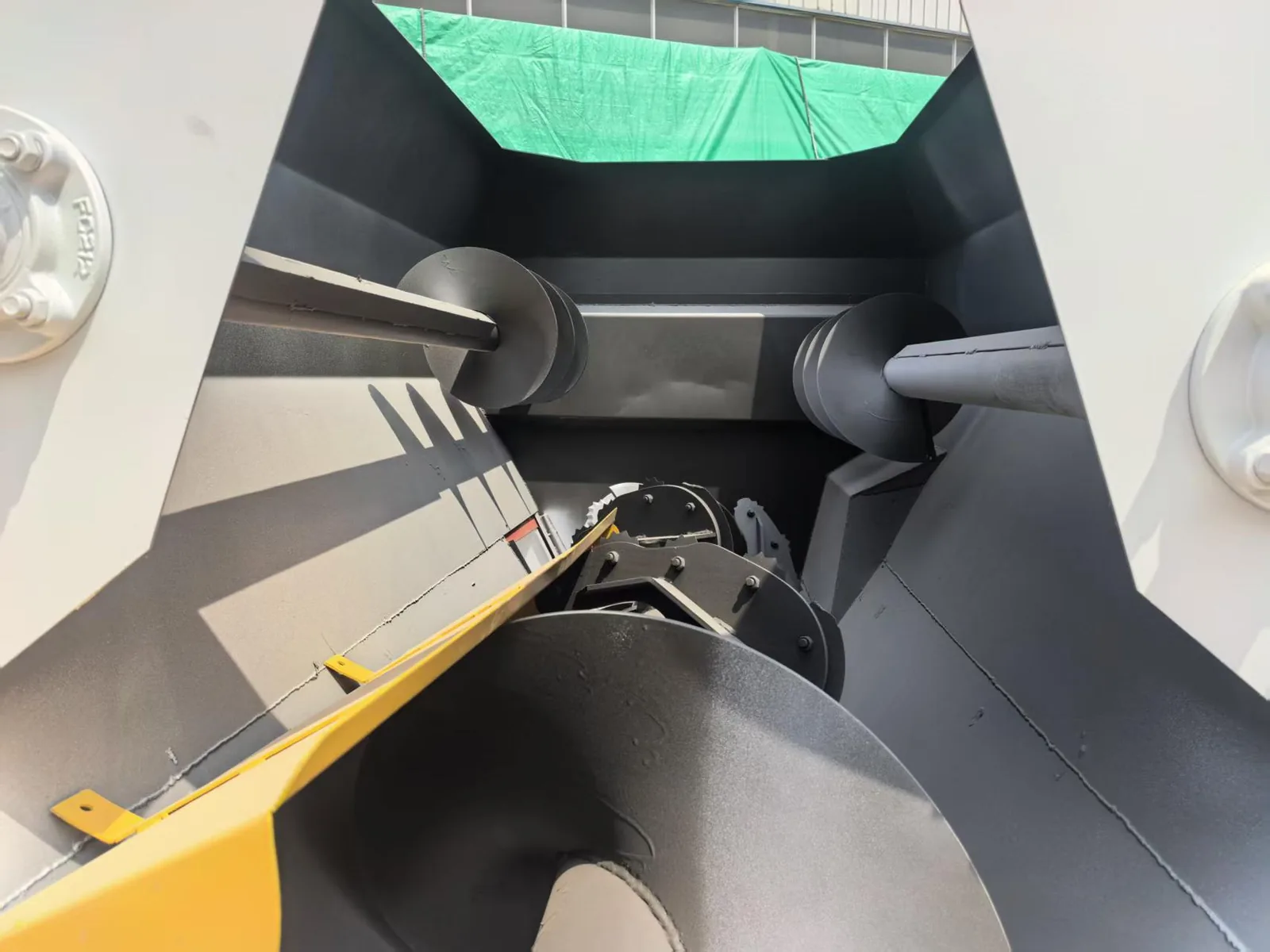

Horizontal mixing and crushing functions prepare forage-based rations on the machine.
Independent 25 HP travel and 32 HP processing power supports mobile farm feeding.
Three-wheel chassis provides a compact turning circle.

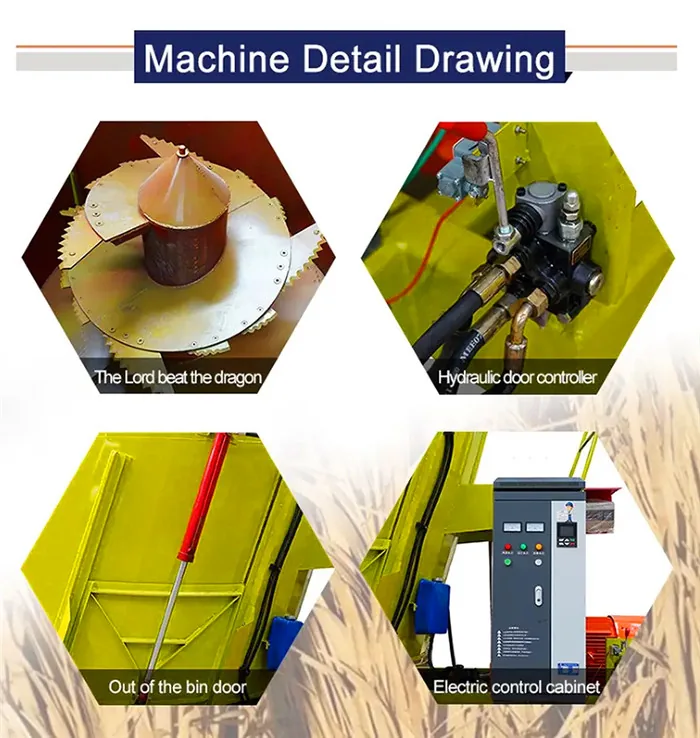

Hydraulic discharge controls ration placement at the feed bunk.
5 m³ mixer box serves routine cattle, sheep and horse feeding.
Electric start simplifies daily operation.
Operating instructions
Recommended operating flow
Follow the supplied machine manual and your farm safety rules. Confirm the ordered configuration before operation.
Load ingredients
Add forage and concentrates according to the required ration sequence.
Crush and mix
Run the processing system until particle size and ingredient distribution are uniform.
Travel and discharge
Drive steadily along the bunk and use the hydraulic discharge to place the ration evenly.
Before starting
- Inspect guards, fasteners and working components.
- Confirm fuel, power or tractor connection as applicable.
- Clear people and obstacles from the work area.
Safety essentials
- Only trained personnel should operate the machine.
- Stop and isolate power before clearing a blockage.
- Keep bystanders away from moving and discharge parts.
Daily maintenance
- Remove residual material after each shift.
- Inspect wear parts, hoses and fasteners regularly.
- Lubricate and service the machine according to the manual.
Before ordering
Information needed to match your configuration
Rated capacity
Overall dimensions
Working requirement
Destination country
Specification
| Parameter | Value |
|---|---|
| Model | AN-5M3 |
| Rated capacity | 5 m³ |
| Overall dimensions | 5.0 × 1.7 × 2.4 m |
| Mixer box dimensions | 2.5 × 1.5 × 1.65 m |
| Machine weight | 2,500 kg |
| Vehicle engine | 25 HP |
| Mixing / crushing engine | 32 HP |
| Discharge | Hydraulic |
| Starting system | Electric start |
Full product gallery

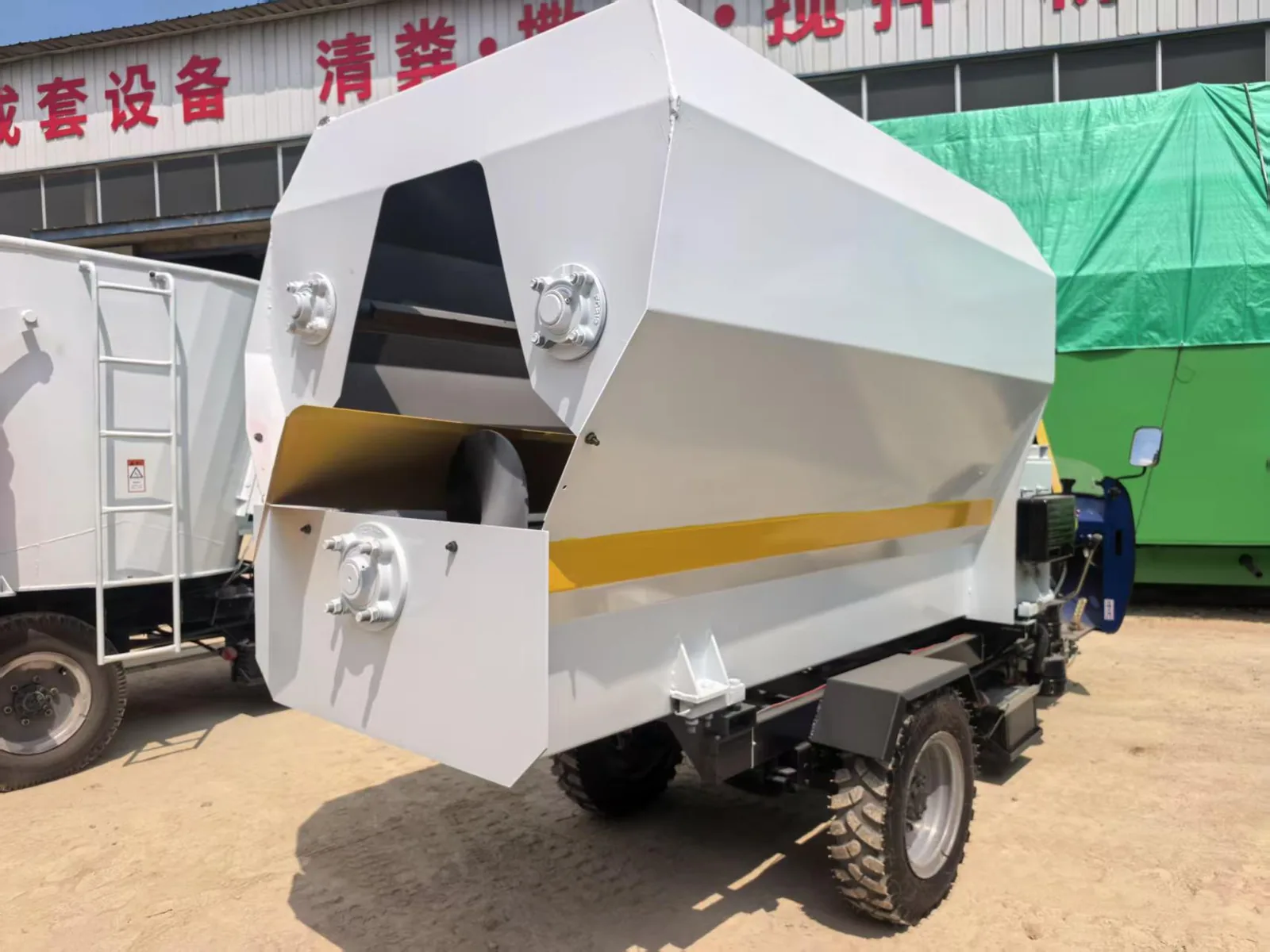

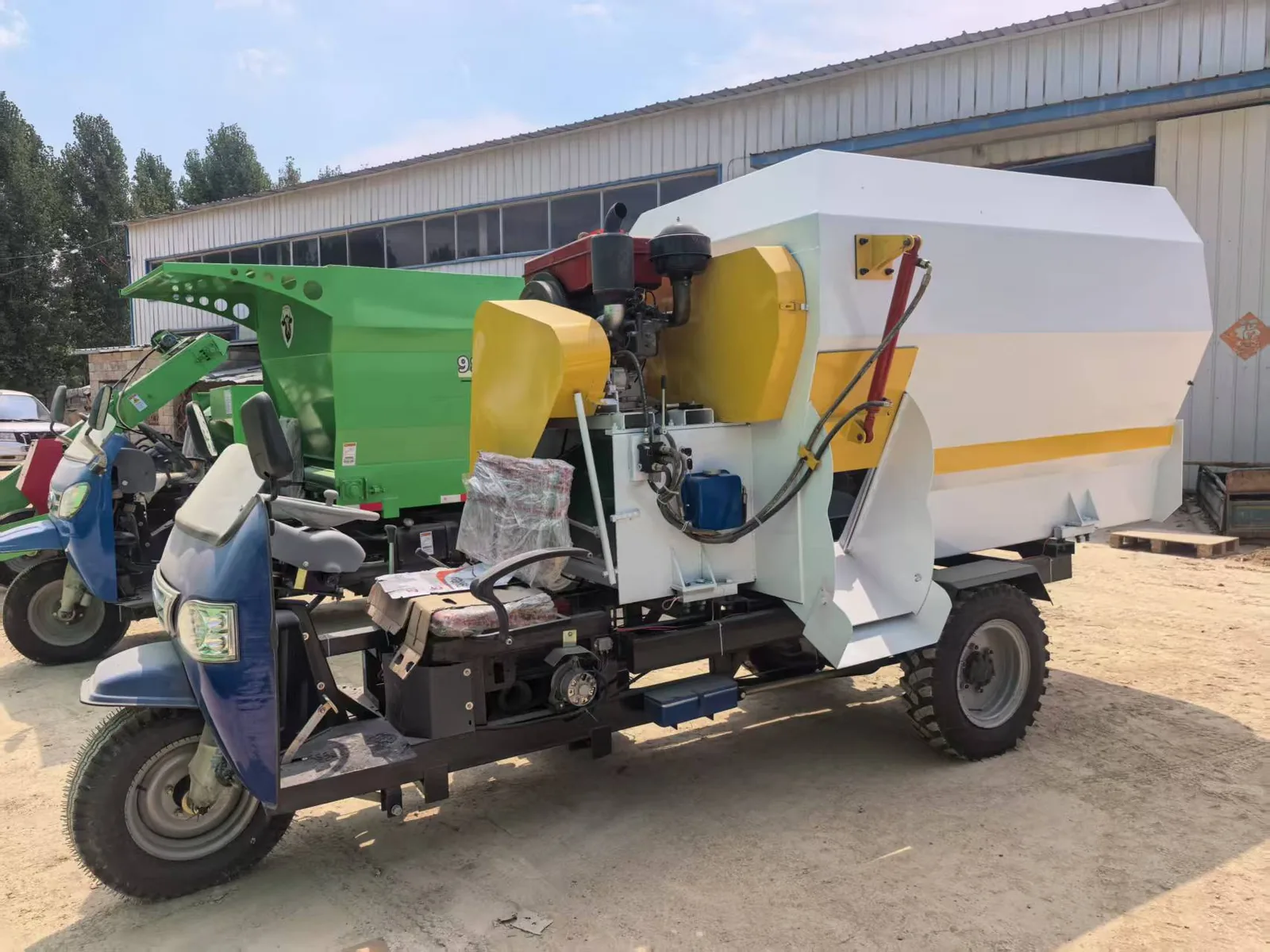

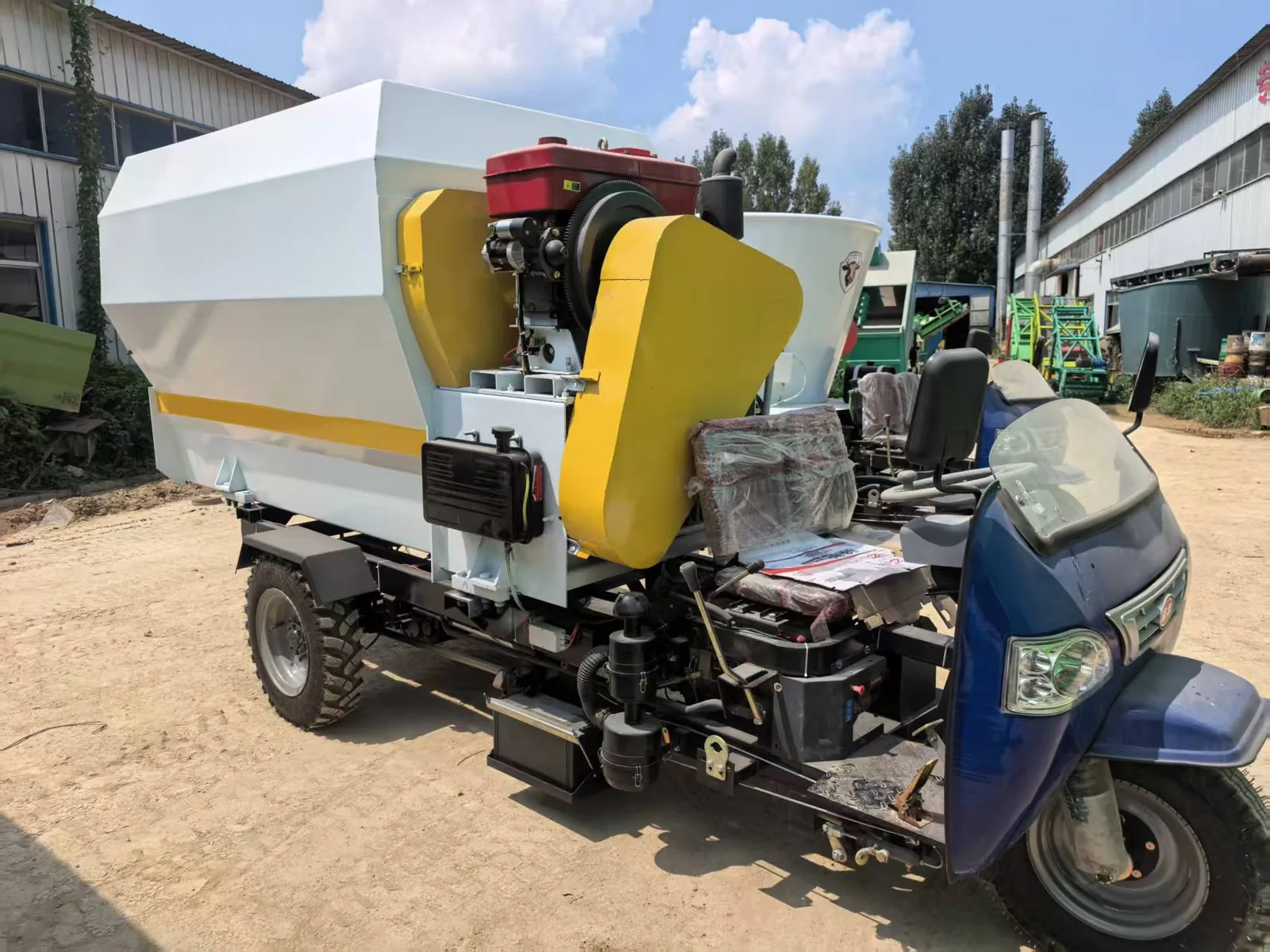

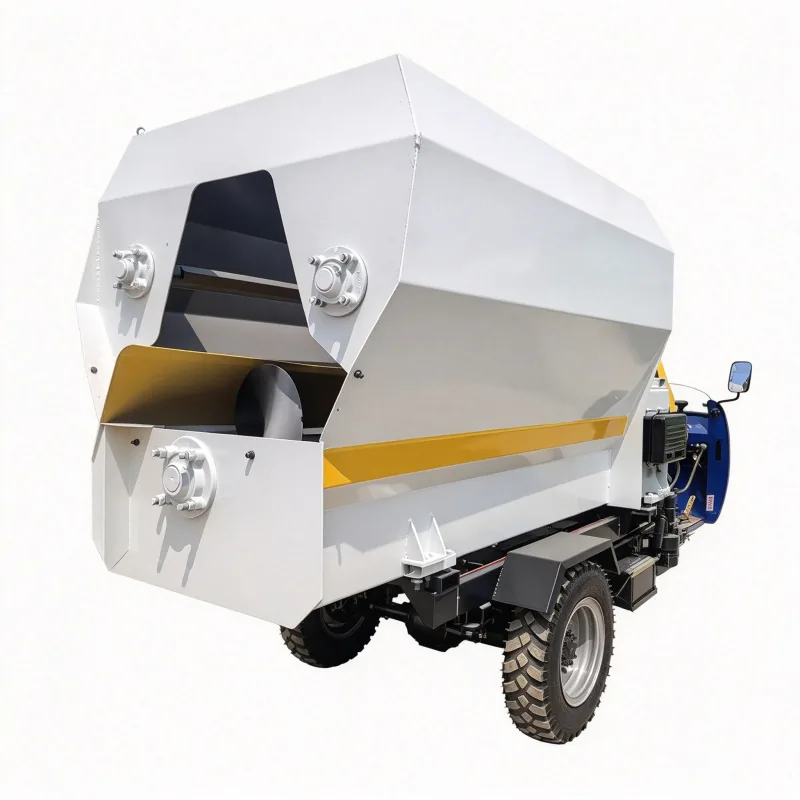

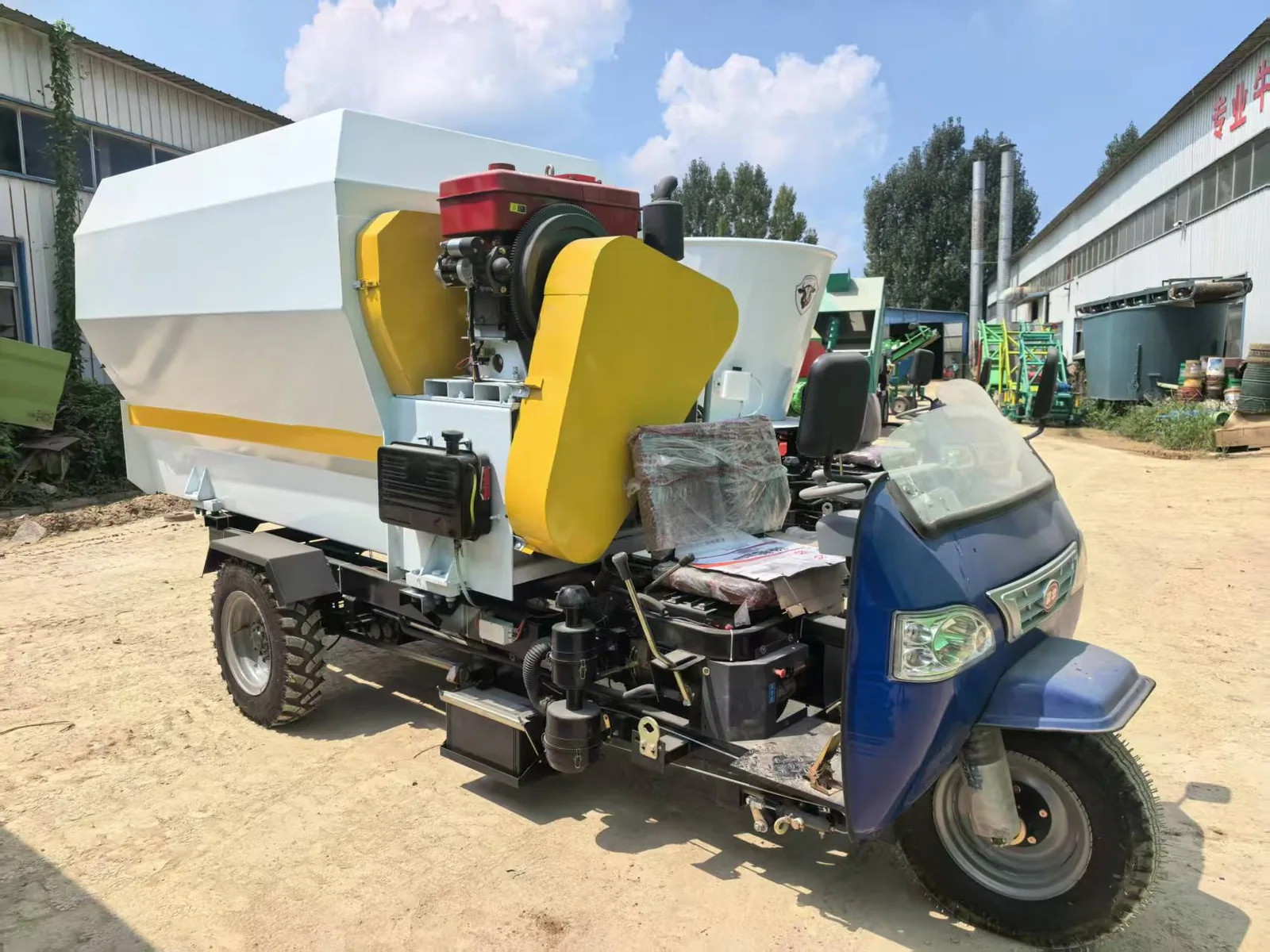

Machine details, loading & working views
Select any image to open a larger view.
Factory to destination
Prepared for export, backed by our factory.
Packing, documentation and export preparation are coordinated before dispatch so your team receives the ordered machine ready for the job.
Export packing
Protective crating and organised loading for international shipment.
Factory production
Assembly and configuration support from the Anlan production base.
Product enquiry
Get a configuration and export quote.
Tell us where the machine will work, your target capacity and destination country. We will confirm the configuration and shipping details.
