Connect the tractor
Secure the drawbar and guarded PTO, then connect hydraulic and weighing systems.
TRACTOR-POWERED TMR MIXINGRequest a quote: AN-5 →Chat with Sales EngineerRead Operating Instructions ↓

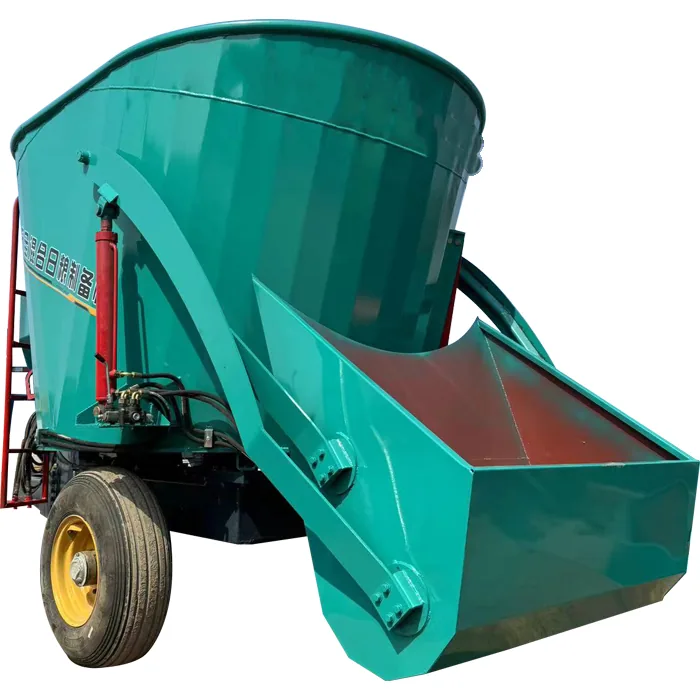

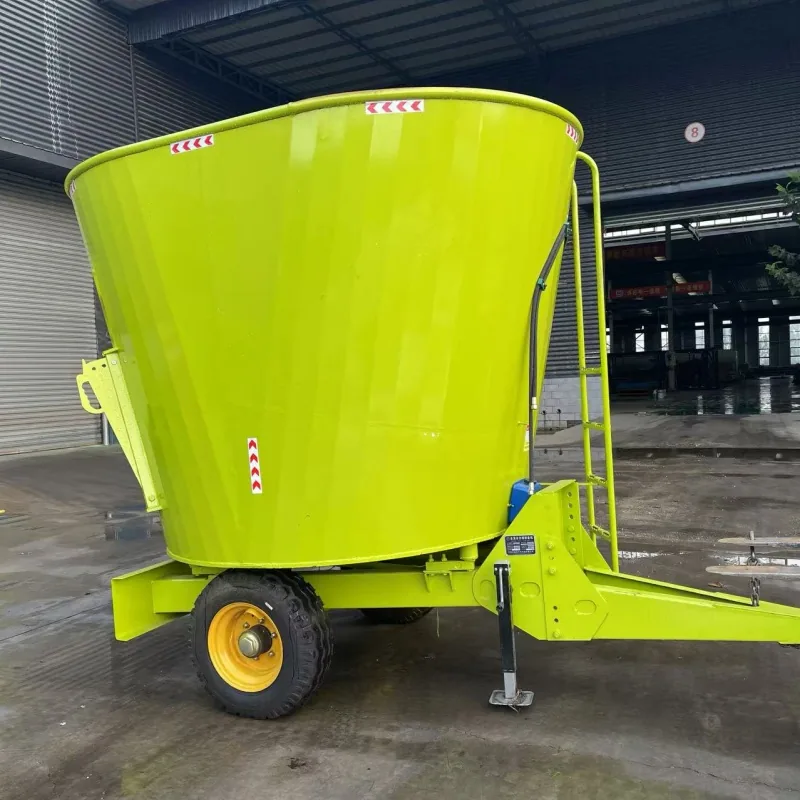

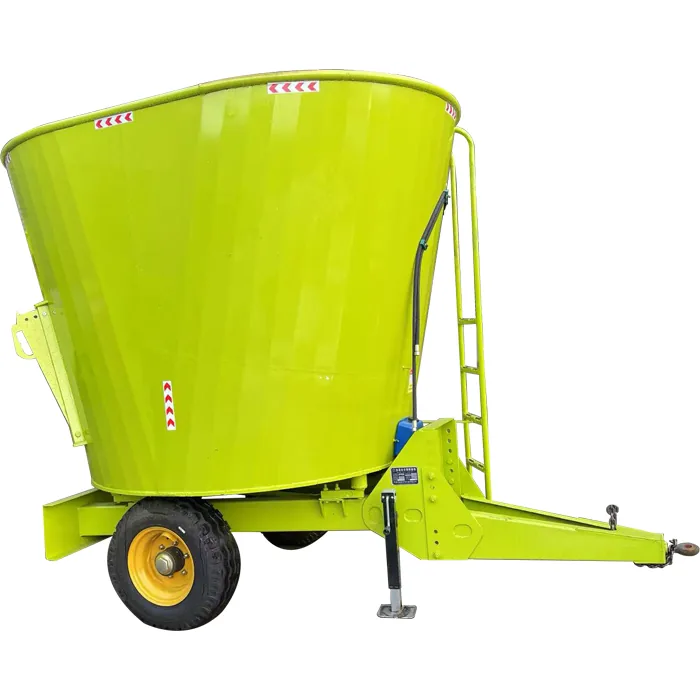

Towed Vertical TMR Feed Mixer
A 5 m³ tractor-towed vertical TMR mixer with integrated weighing for forage, silage and concentrate rations. It offers a straightforward mixing and feeding solution for farms with an available 40 HP tractor and a preference for vertical-auger processing.
Technical overview
ModelAN-5
Rated capacity5 m³
Required tractor power40 HP
ProductivityApprox. 2,000 kg/h
Overall dimensions3.5 × 2.0 × 2.4 m
Shipping dimensions4.2 × 2.2 × 2.6 m
Machine weight1,800 kg
Weighing systemIncluded
Engineering advantages
Practical machine advantages

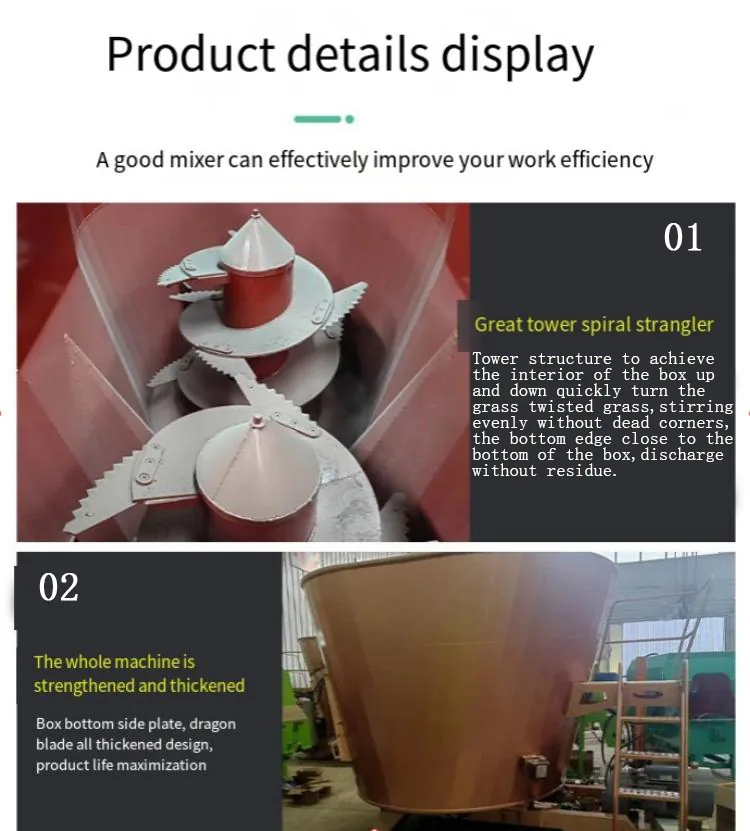

Vertical auger mixes long forage, silage and concentrates in one hopper.
Integrated weighing helps operators repeat the feed formula.
5 m³ capacity supports small and medium herd batches.
40 HP tractor requirement suits common farm power units.
Towed design keeps travel and mixing power on the farm tractor.

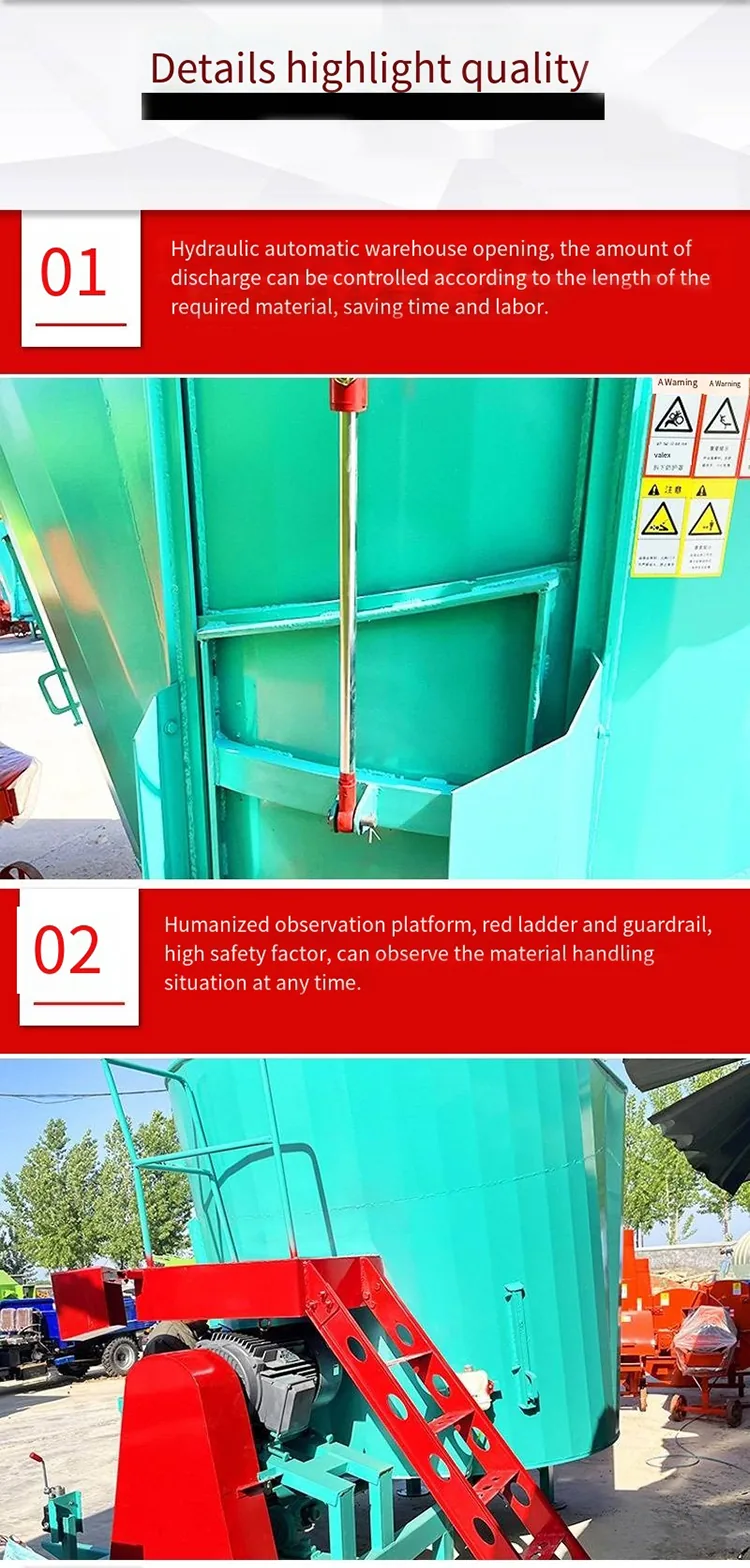

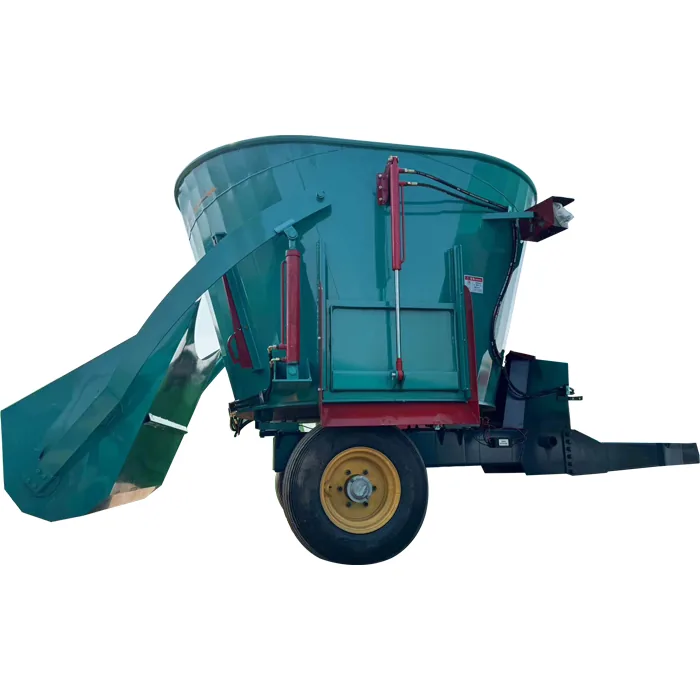

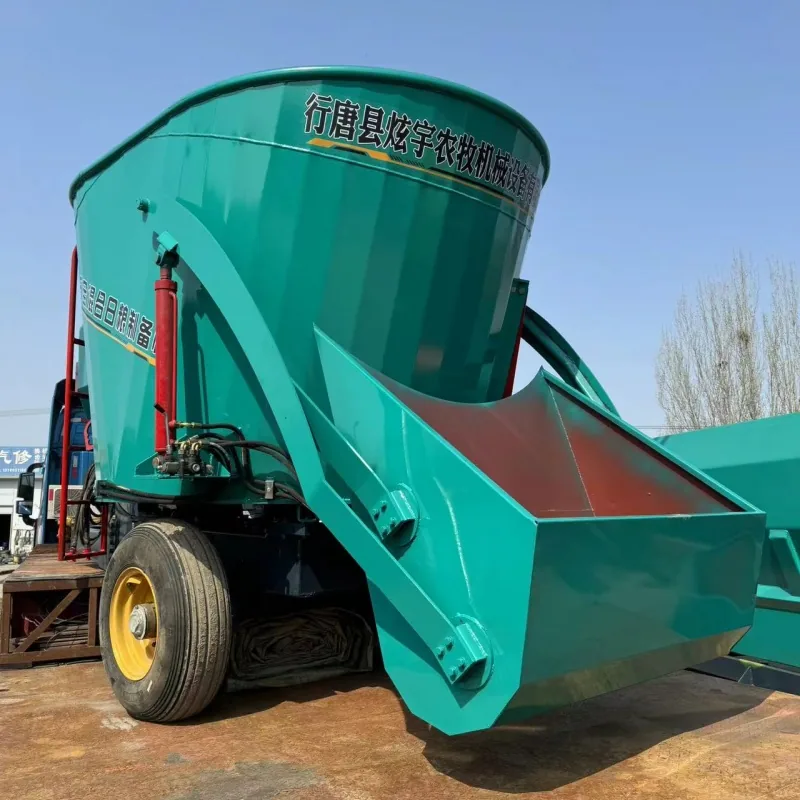

Side discharge places the ration directly along the bunk.
Operating instructions
Recommended operating flow
Follow the supplied machine manual and your farm safety rules. Confirm the ordered configuration before operation.
Load ingredients
Add ingredients in the sequence required by the ration formula.
Mix the batch
Operate at the specified PTO speed until the ration is uniform.
Feed and clean
Discharge at low travel speed, then isolate the PTO and clean the hopper.
Before starting
- Inspect guards, fasteners and working components.
- Confirm fuel, power or tractor connection as applicable.
- Clear people and obstacles from the work area.
Safety essentials
- Only trained personnel should operate the machine.
- Stop and isolate power before clearing a blockage.
- Keep bystanders away from moving and discharge parts.
Daily maintenance
- Remove residual material after each shift.
- Inspect wear parts, hoses and fasteners regularly.
- Lubricate and service the machine according to the manual.
Before ordering
Information needed to match your configuration
Rated capacity
Required tractor power
Working requirement
Destination country
Specification
| Parameter | Value |
|---|---|
| Model | AN-5 |
| Rated capacity | 5 m³ |
| Required tractor power | 40 HP |
| Productivity | Approx. 2,000 kg/h |
| Overall dimensions | 3.5 × 2.0 × 2.4 m |
| Shipping dimensions | 4.2 × 2.2 × 2.6 m |
| Machine weight | 1,800 kg |
| Weighing system | Included |

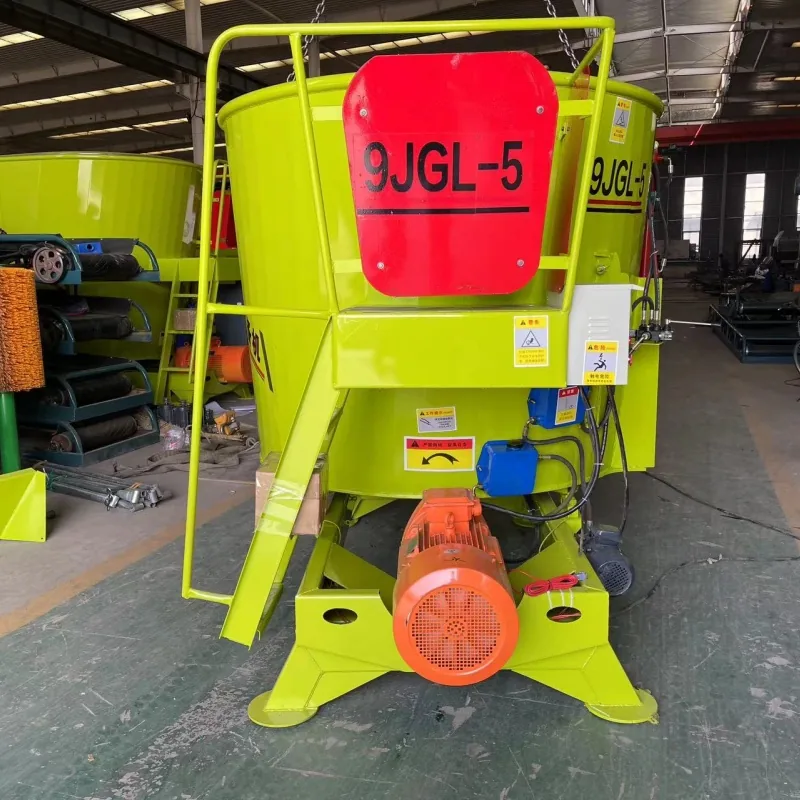

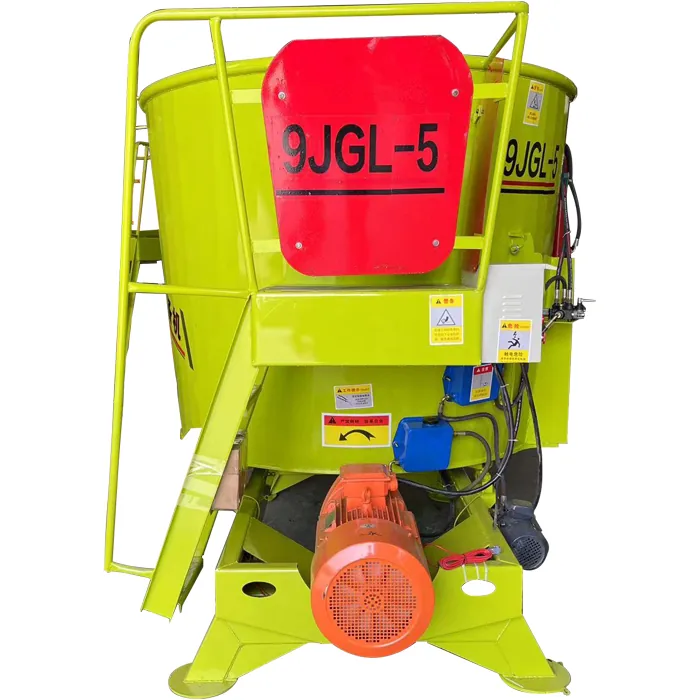

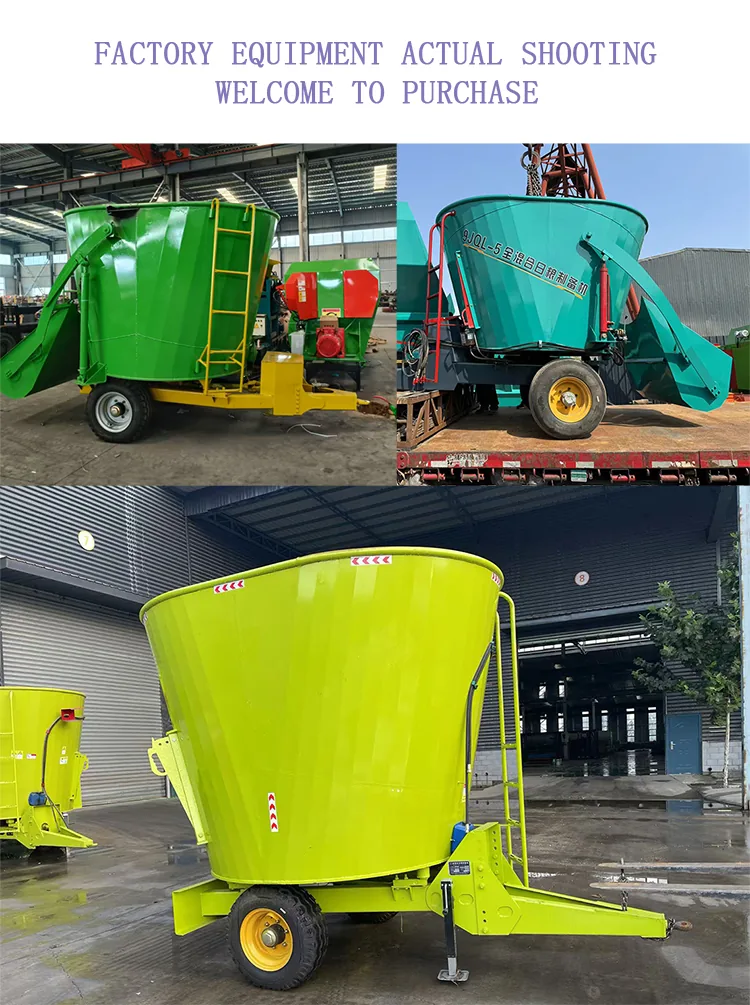

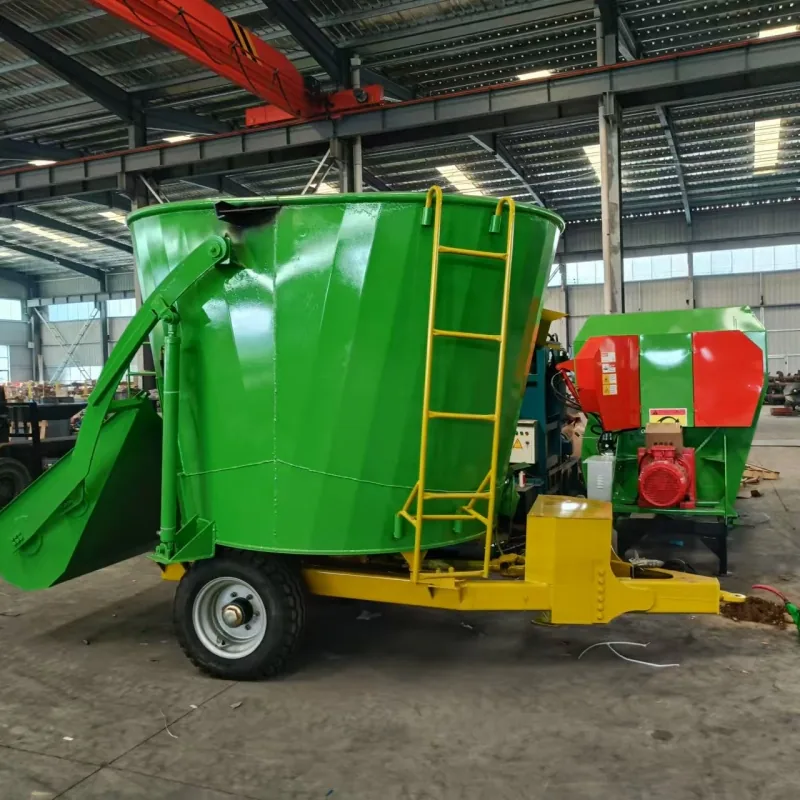

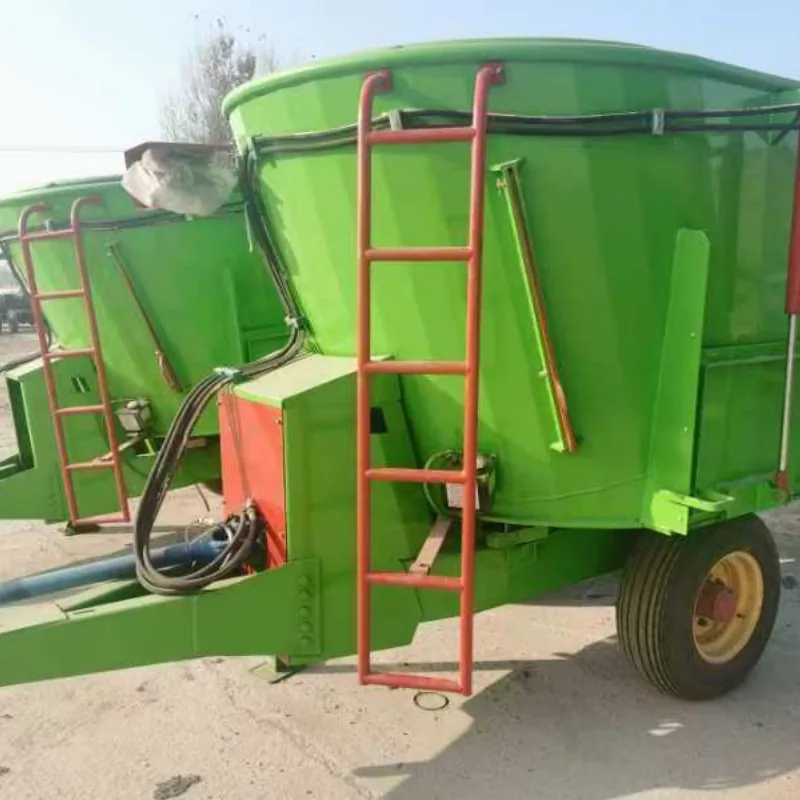

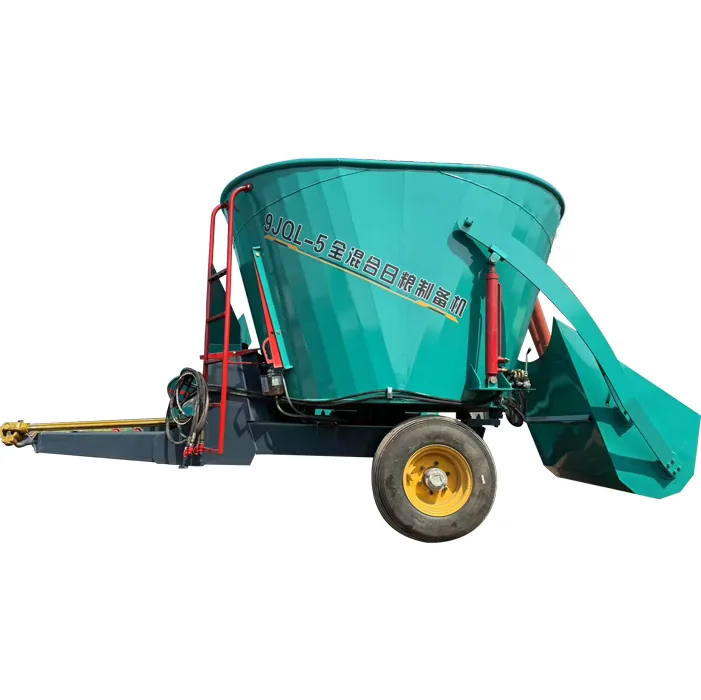

Full product gallery
Machine details, loading & working views
Select any image to open a larger view.
Factory to destination
Prepared for export, backed by our factory.
Packing, documentation and export preparation are coordinated before dispatch so your team receives the ordered machine ready for the job.

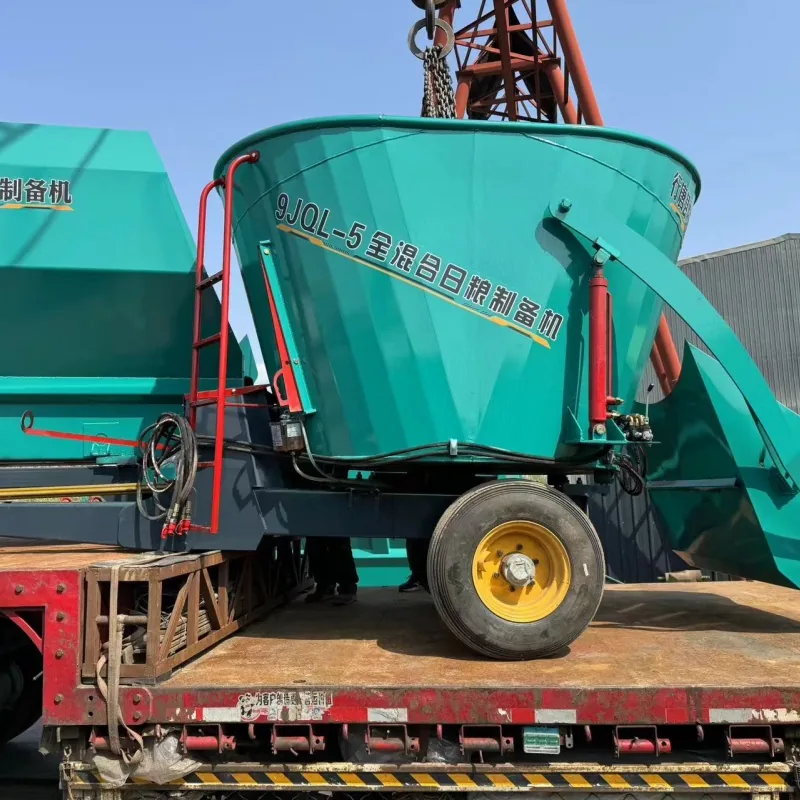

Export packing
Protective crating and organised loading for international shipment.
Factory production
Assembly and configuration support from the Anlan production base.
Product enquiry
Get a configuration and export quote.
Tell us where the machine will work, your target capacity and destination country. We will confirm the configuration and shipping details.
