Connect and inspect

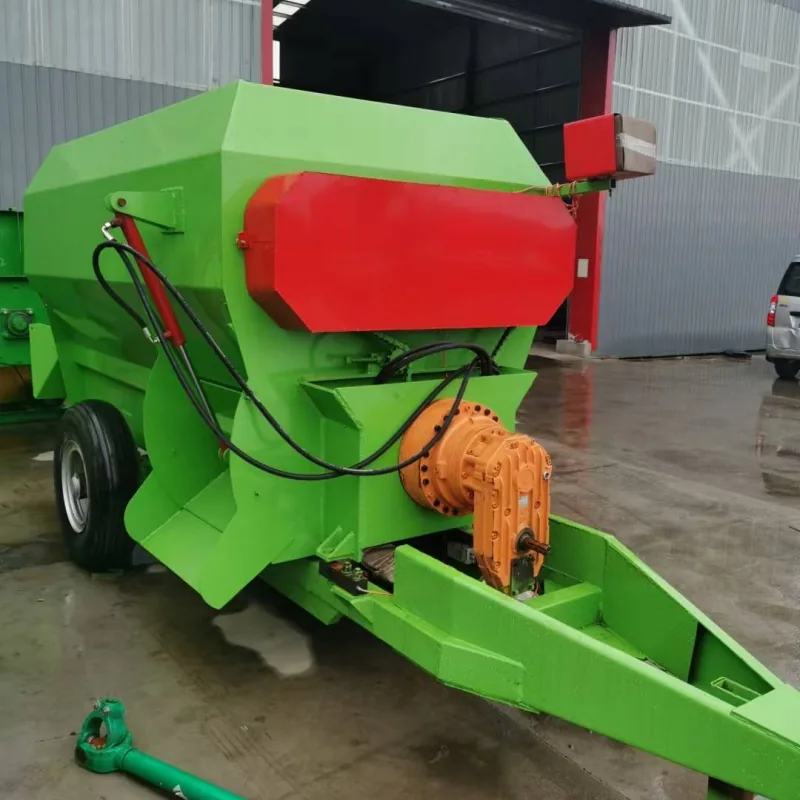

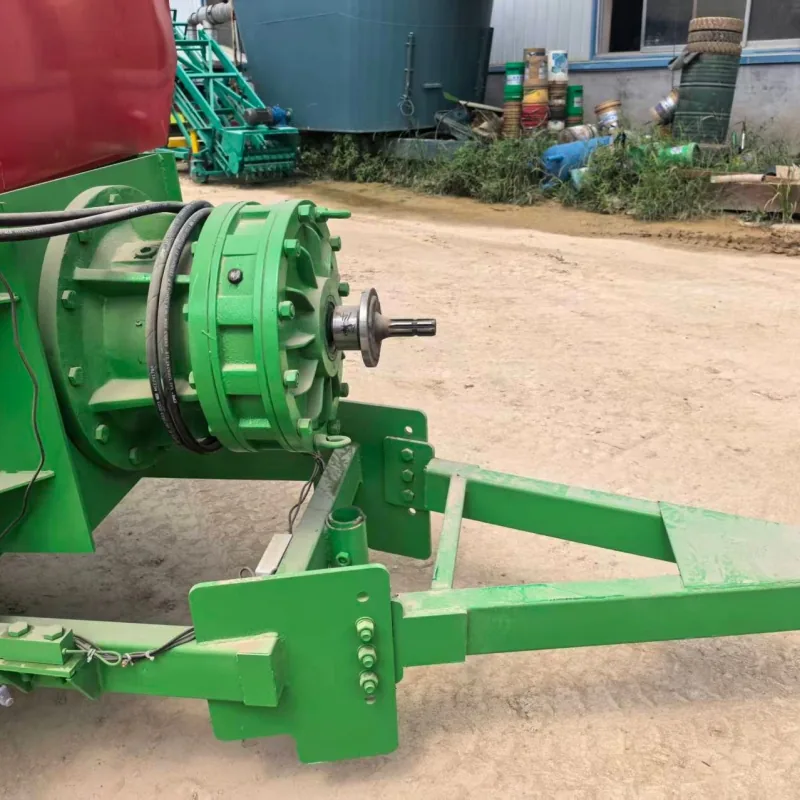

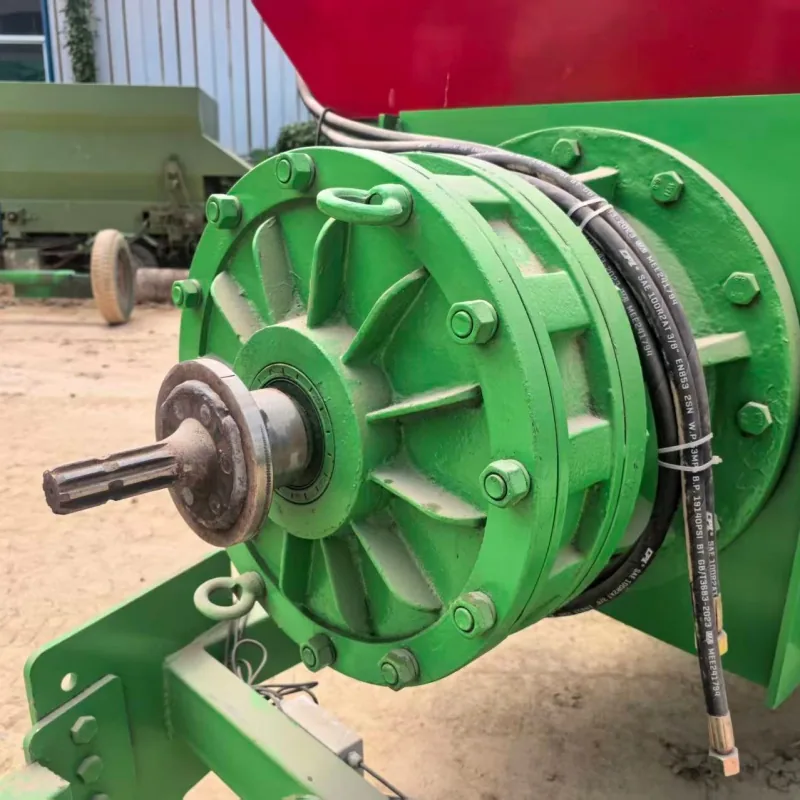

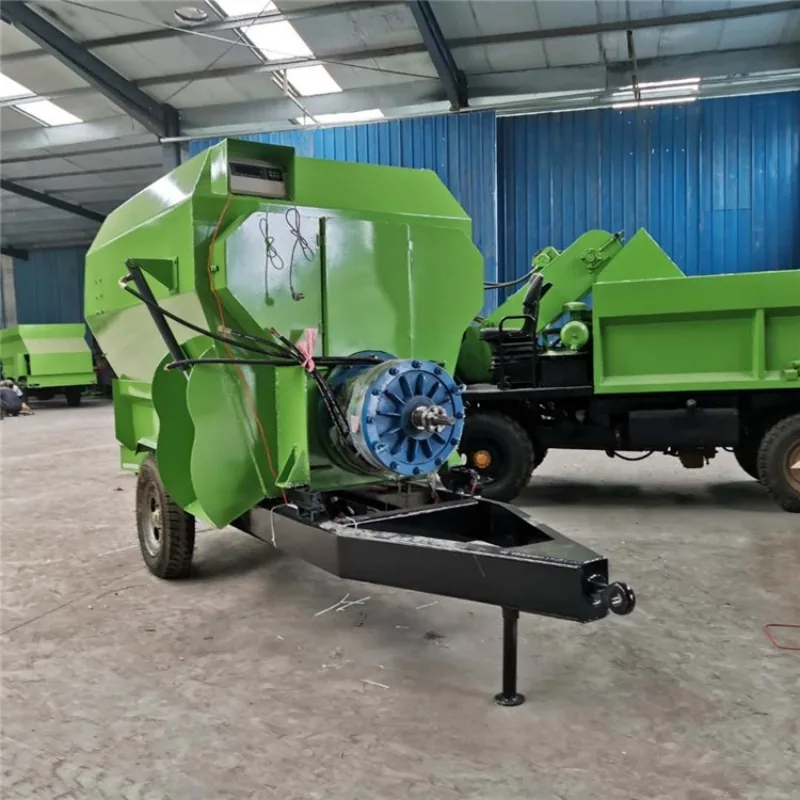

Attach the drawbar and guarded PTO correctly.
TRACTOR-POWERED TMR MIXINGRequest a quote: AN-9JGW-5 →Chat with Sales EngineerRead Operating Instructions ↓

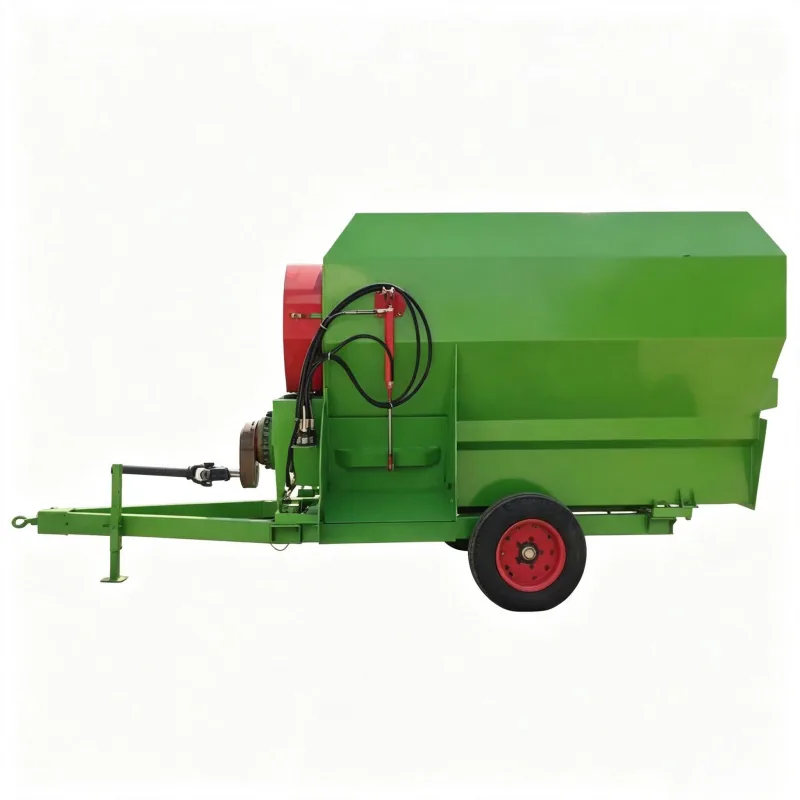

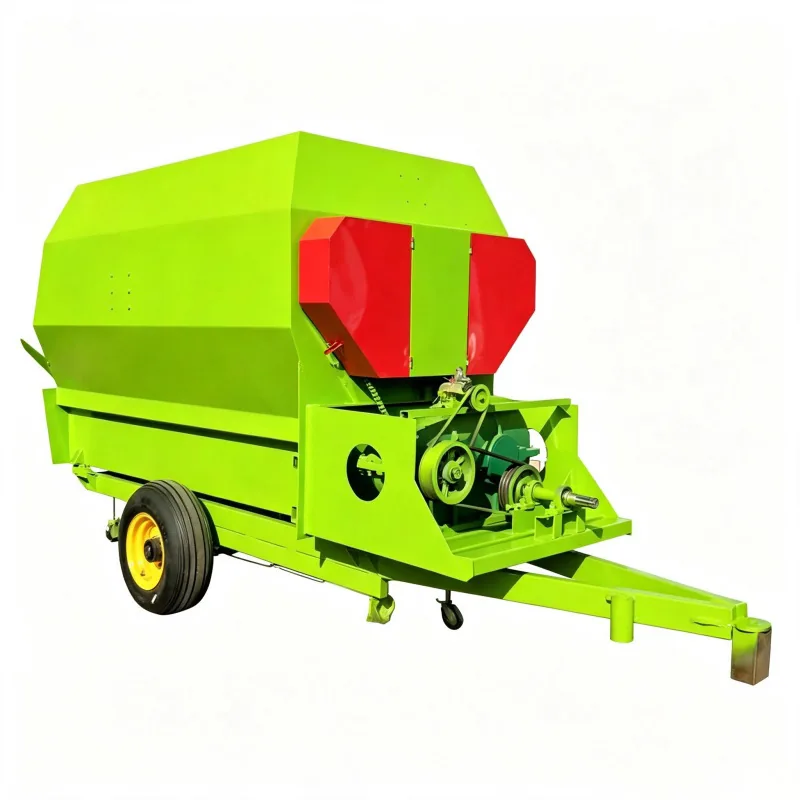

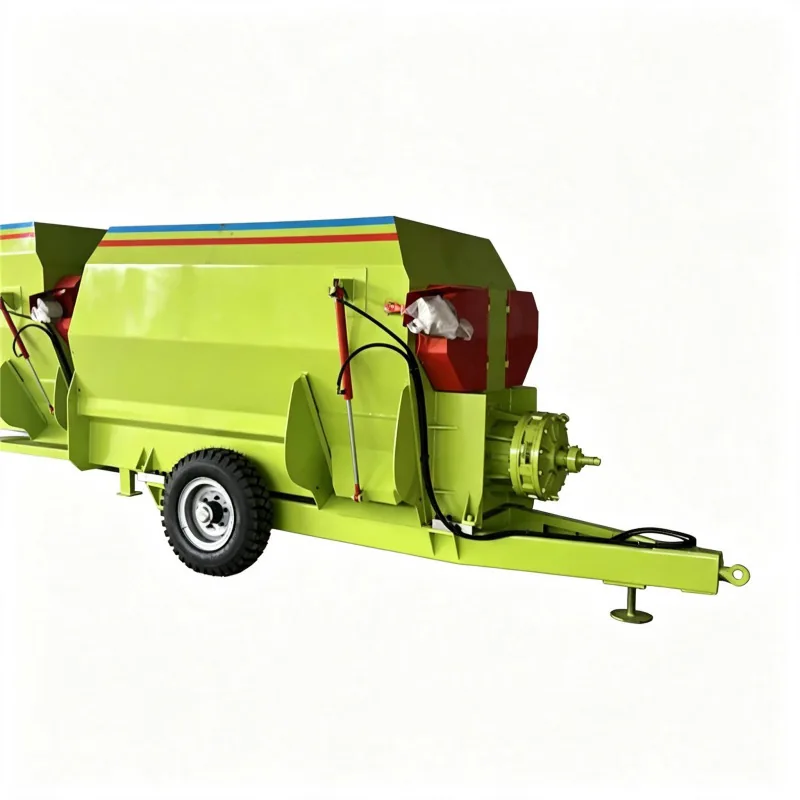

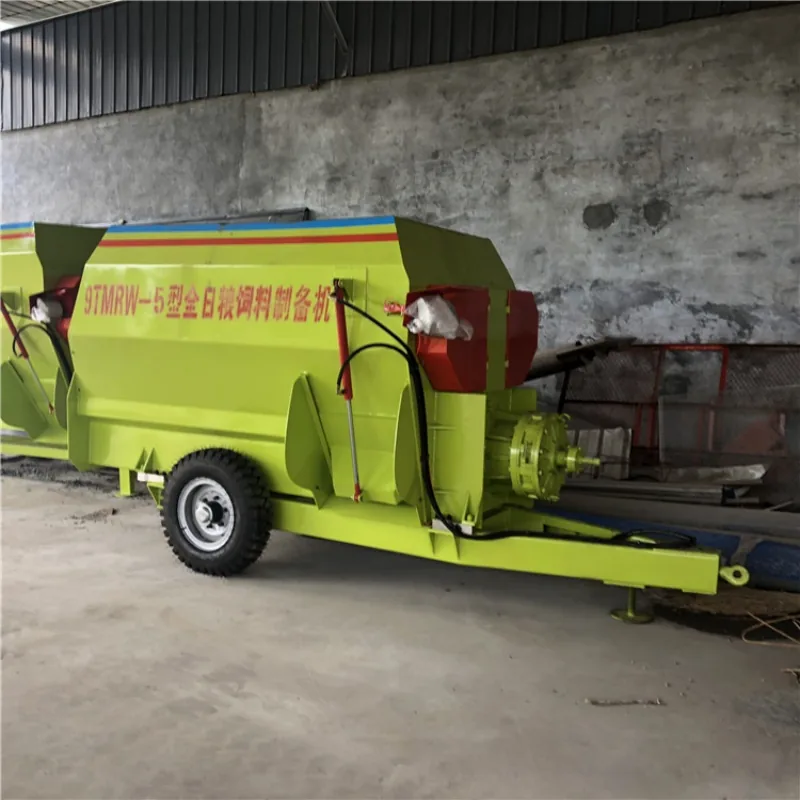

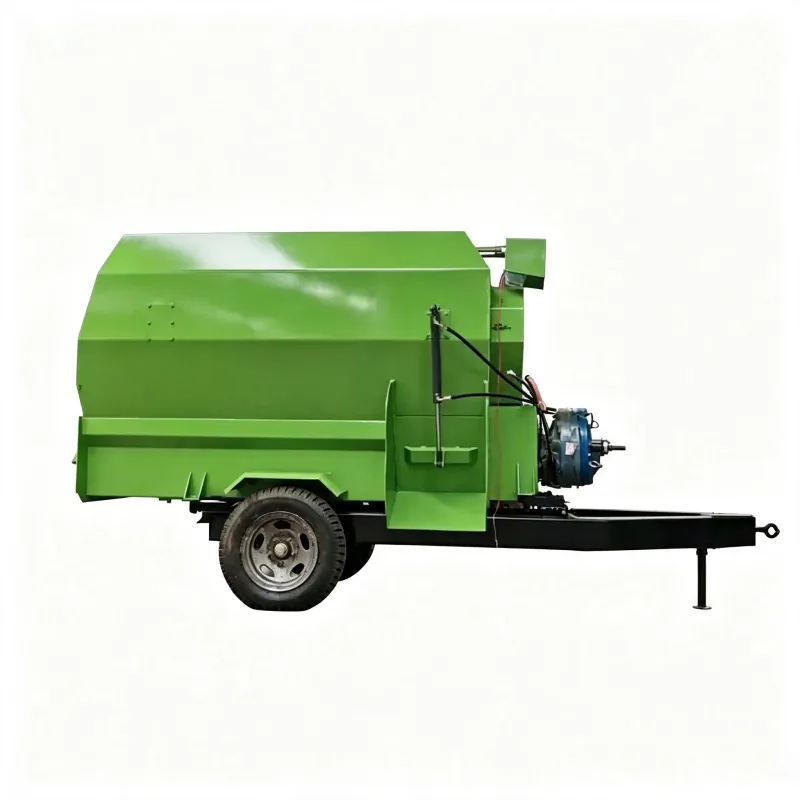

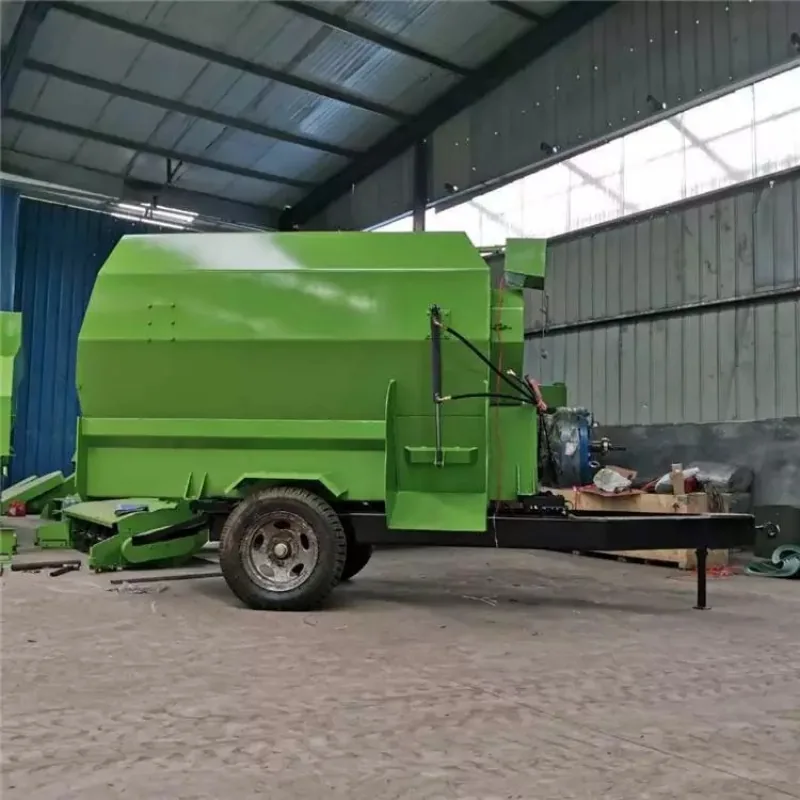

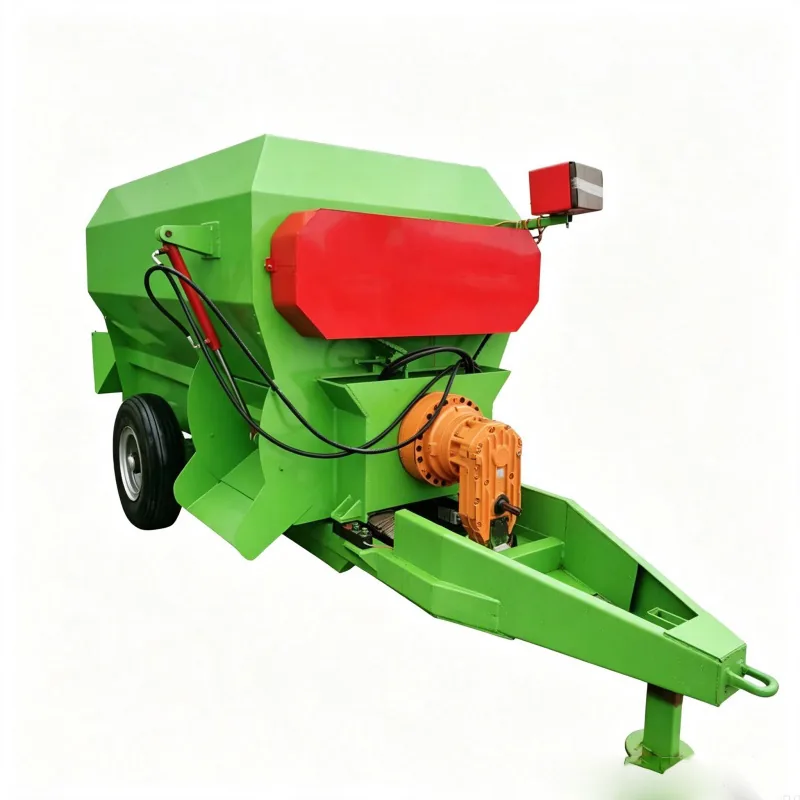

Trailed Horizontal TMR Feed Mixer
A 5 m³ tractor-towed horizontal mixer for chopping, blending, weighing and distributing forage-based rations. It suits cattle and sheep farms with an available 40 HP tractor.
Technical overview
ModelAN-9JGW-5
Rated capacity5 m³
Required tractor power40 HP
ProductivityApprox. 2,000 kg/h
Overall dimensions3.8 × 1.7 × 2.0 m
Machine weight1,600 kg
Weighing systemIncluded
Engineering advantages
Practical machine advantages

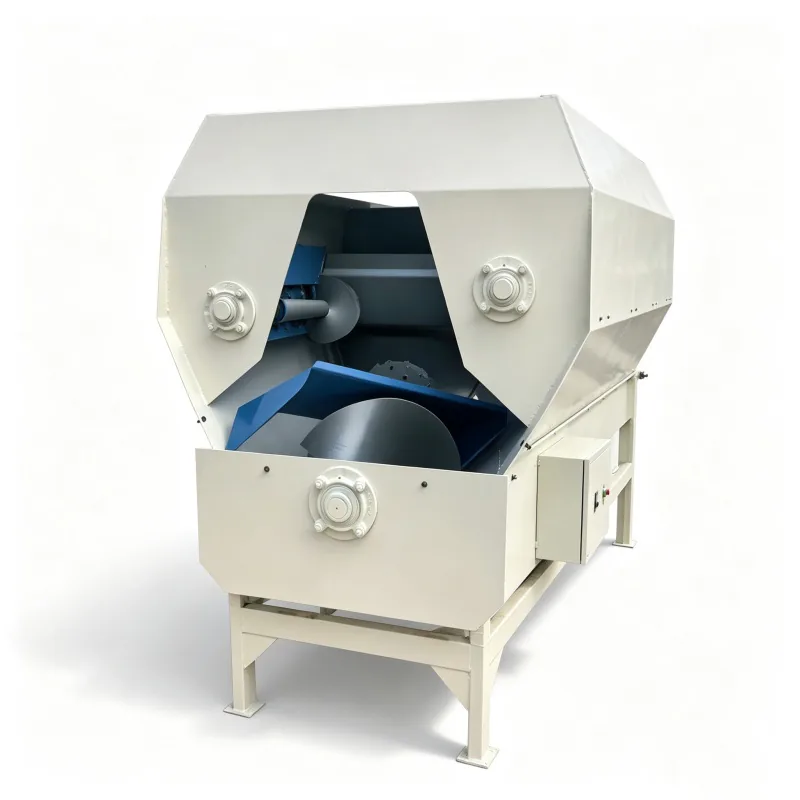

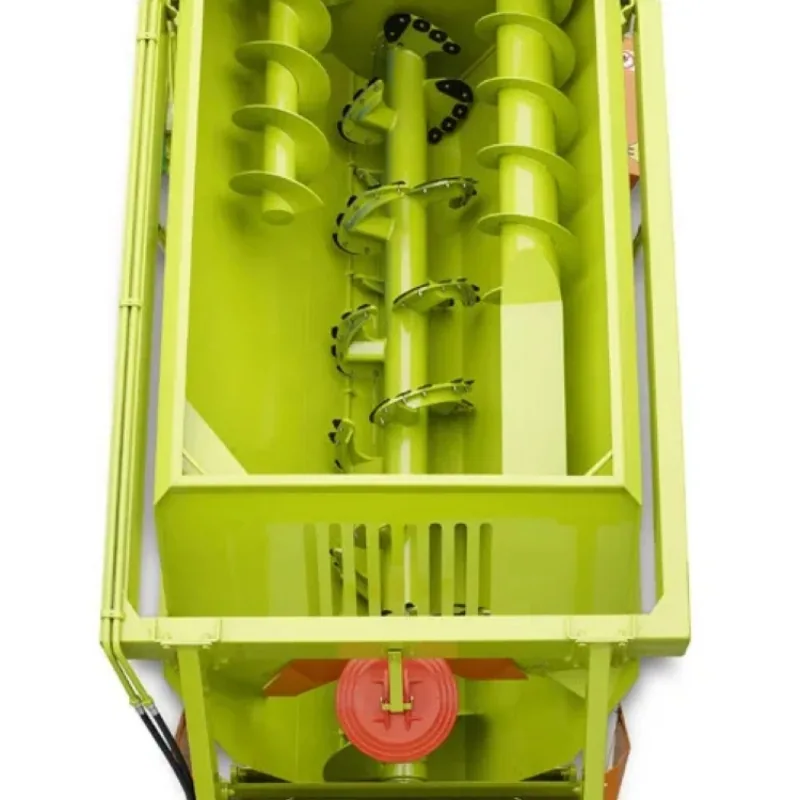

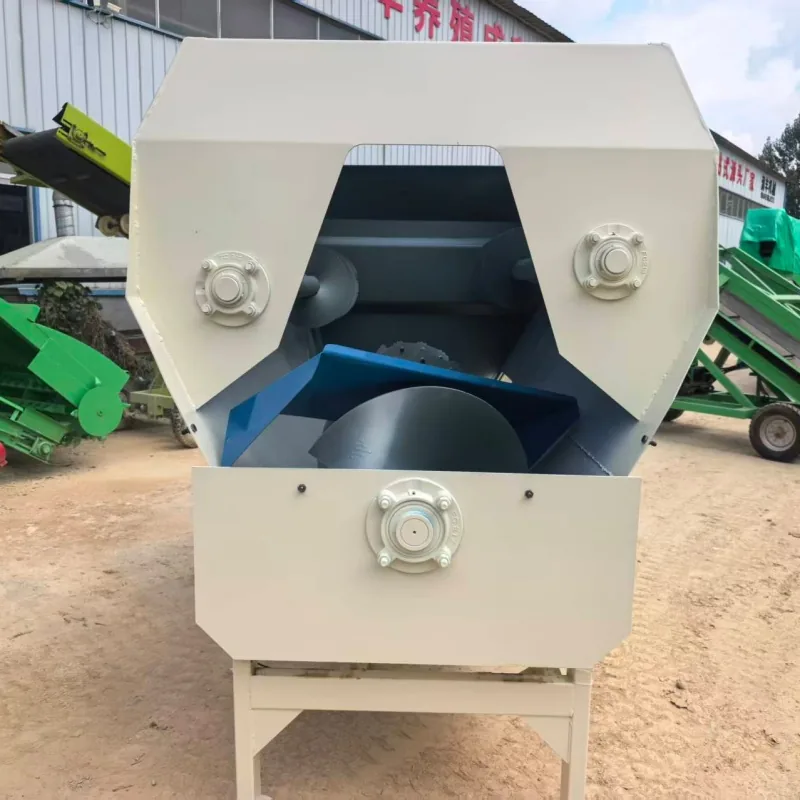

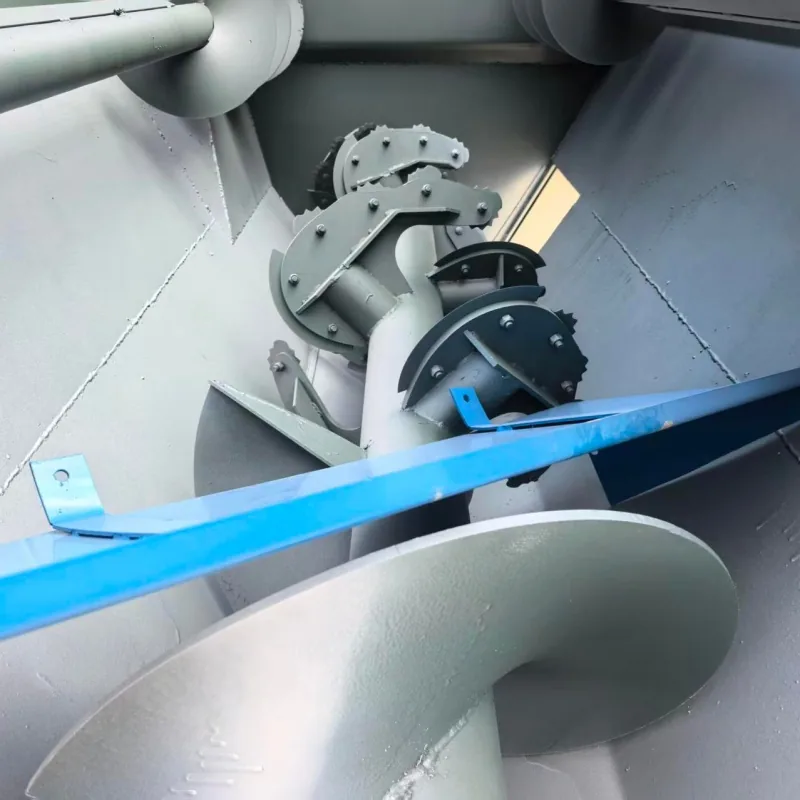

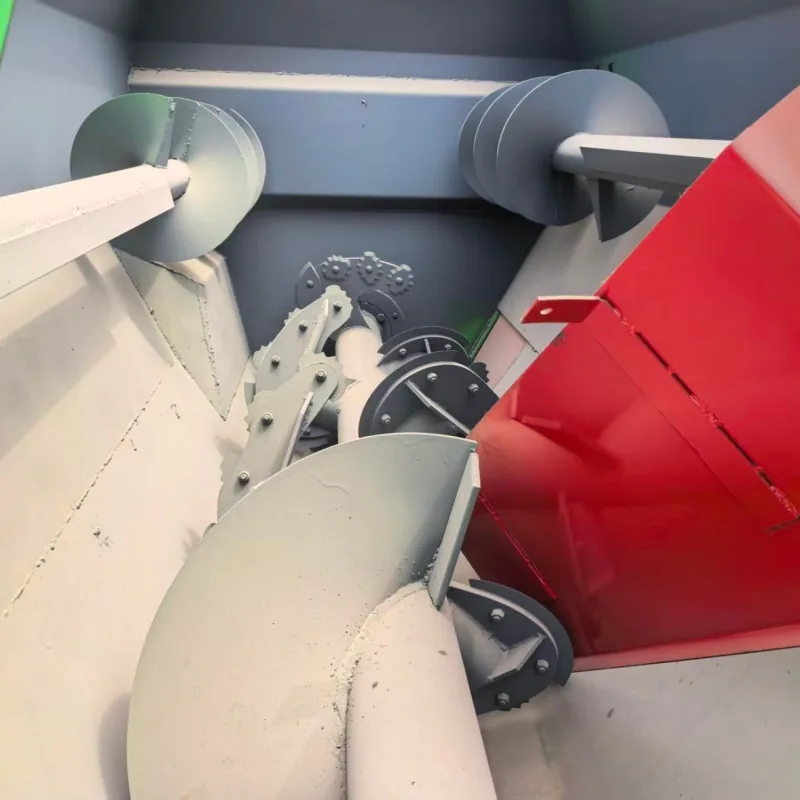

Horizontal auger blends forage, concentrate and additives.

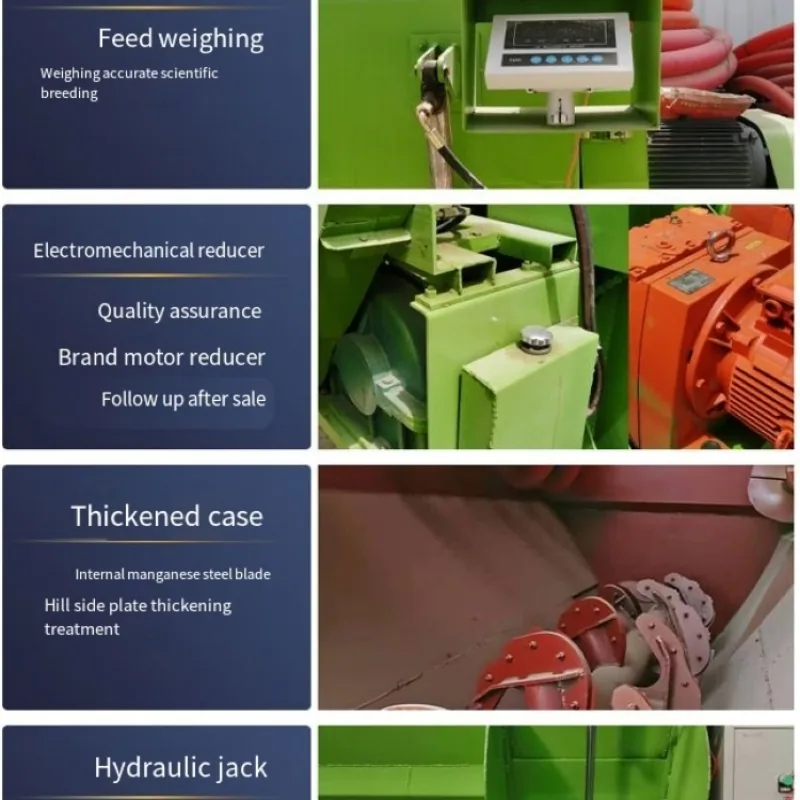

Integrated weighing supports repeatable batches.
40 HP tractor requirement suits common farm fleets.
Controlled discharge places the ration along the feed bunk.
Operating instructions
Recommended operating flow
Follow the supplied machine manual and your farm safety rules. Confirm the ordered configuration before operation.
Load ingredients
Follow the sequence in the ration plan.
Mix the ration
Run until particle and ingredient distribution are uniform.
Distribute and clean
Feed at low travel speed and remove residue after use.
Before starting
- Inspect guards, fasteners and working components.
- Confirm fuel, power or tractor connection as applicable.
- Clear people and obstacles from the work area.
Safety essentials
- Only trained personnel should operate the machine.
- Stop and isolate power before clearing a blockage.
- Keep bystanders away from moving and discharge parts.
Daily maintenance
- Remove residual material after each shift.
- Inspect wear parts, hoses and fasteners regularly.
- Lubricate and service the machine according to the manual.
Working videos
See the machine in action
Review the product footage to understand the machine layout and operating process. Confirm the exact configuration shown before ordering.
Watch on YouTube →Trailed Horizontal TMR Feed Mixer
Before ordering
Information needed to match your configuration
Rated capacity
Required tractor power
Working requirement
Destination country
Specification
| Parameter | Value |
|---|---|
| Model | AN-9JGW-5 |
| Rated capacity | 5 m³ |
| Required tractor power | 40 HP |
| Productivity | Approx. 2,000 kg/h |
| Overall dimensions | 3.8 × 1.7 × 2.0 m |
| Machine weight | 1,600 kg |
| Weighing system | Included |

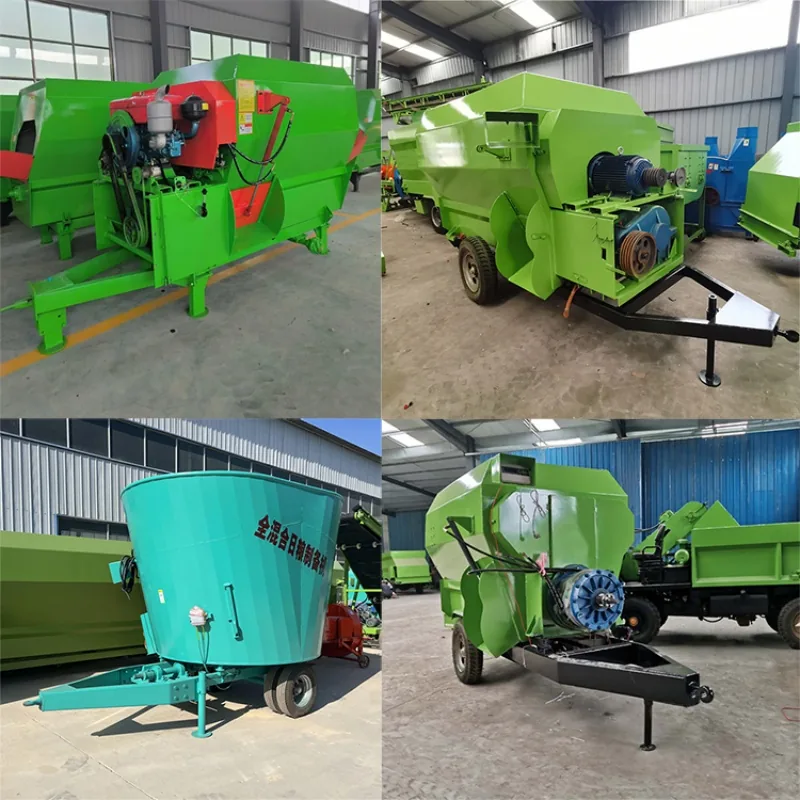

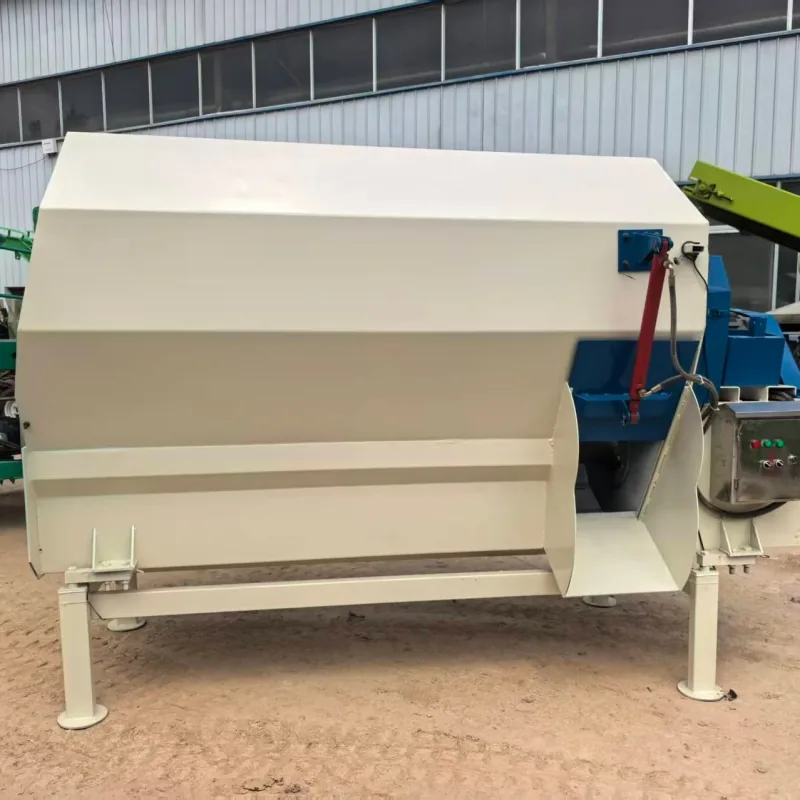

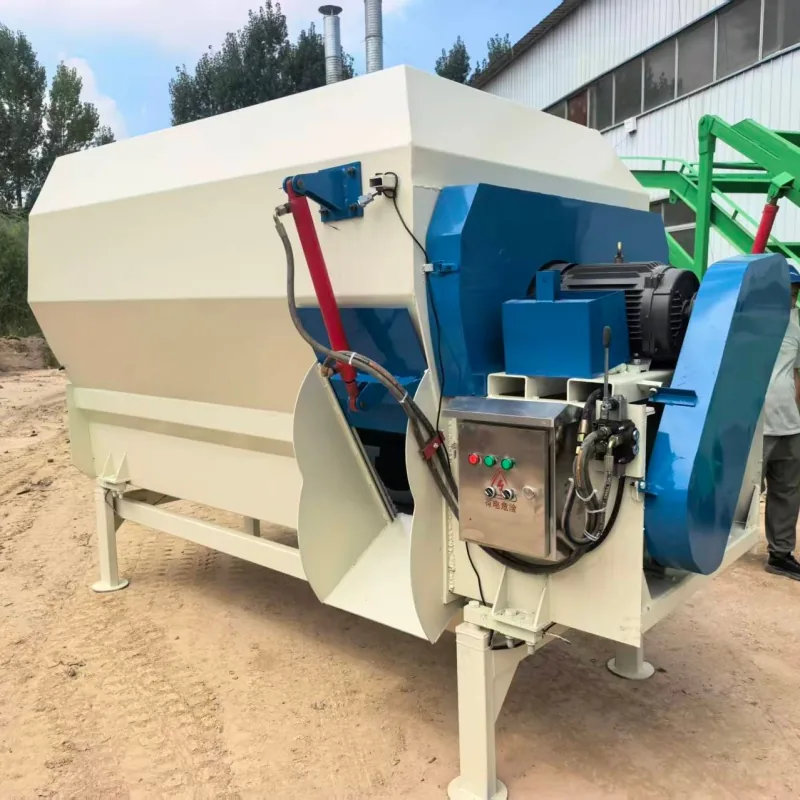

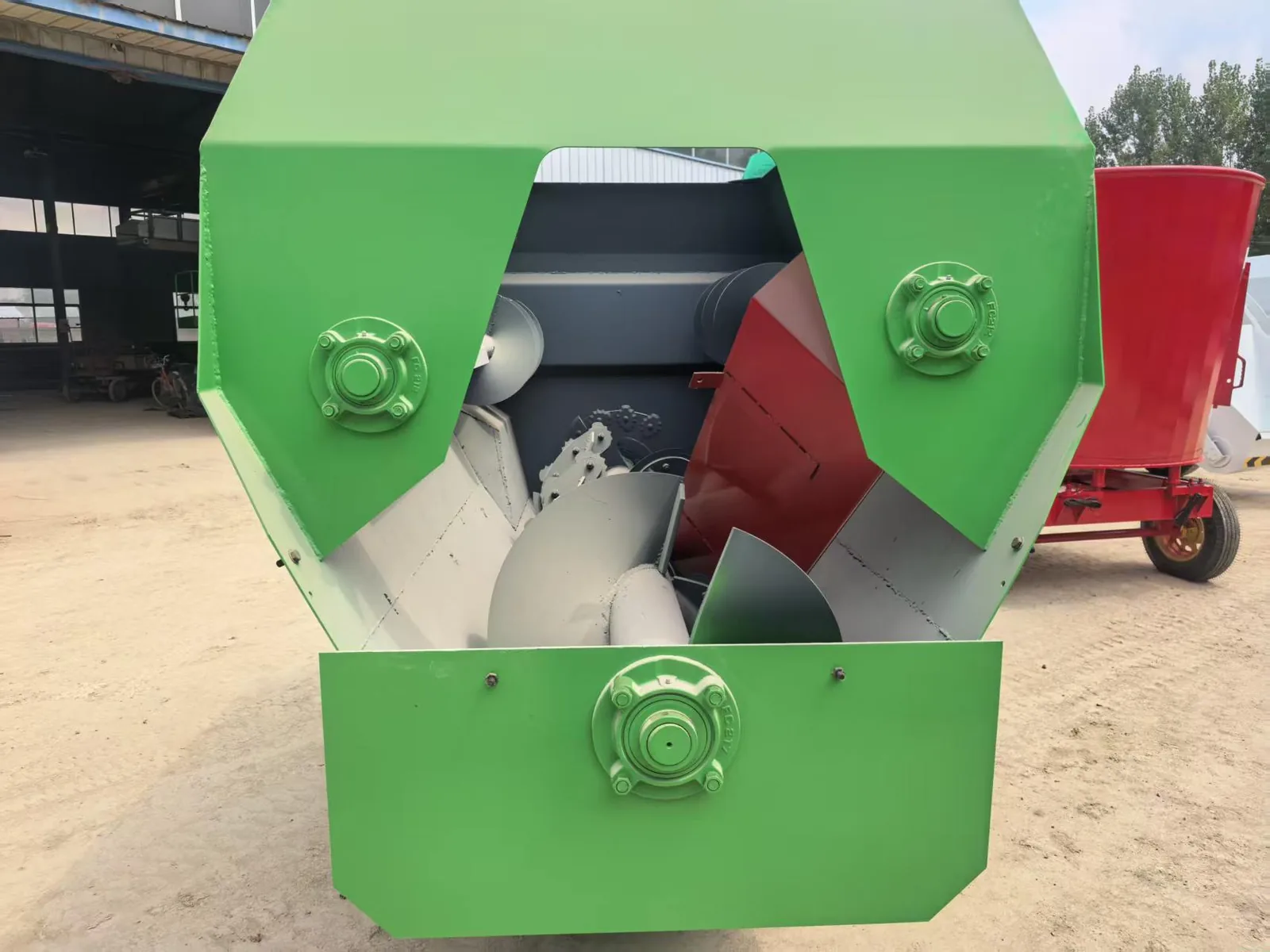

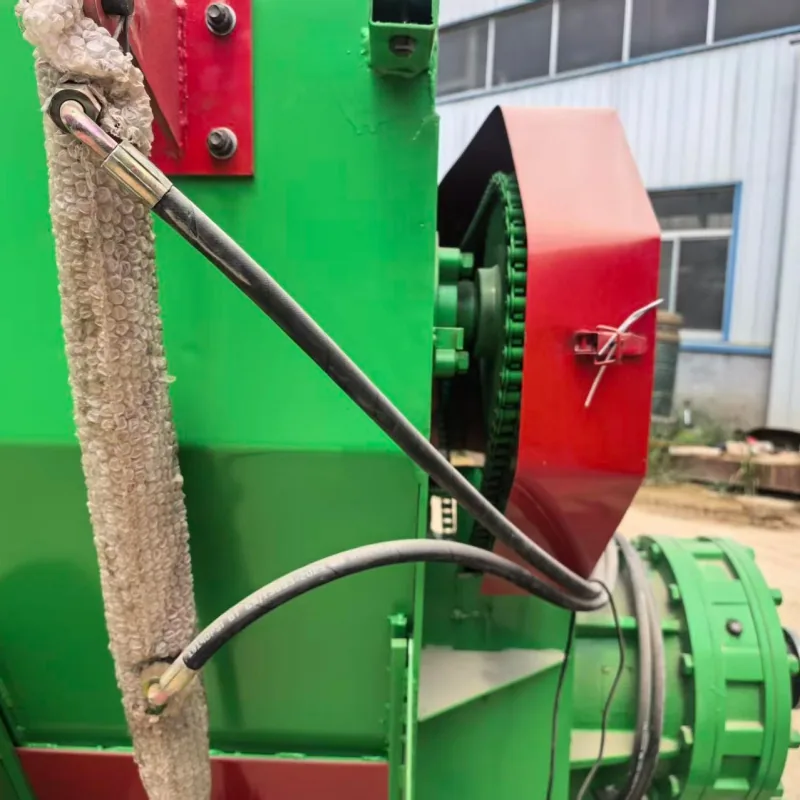

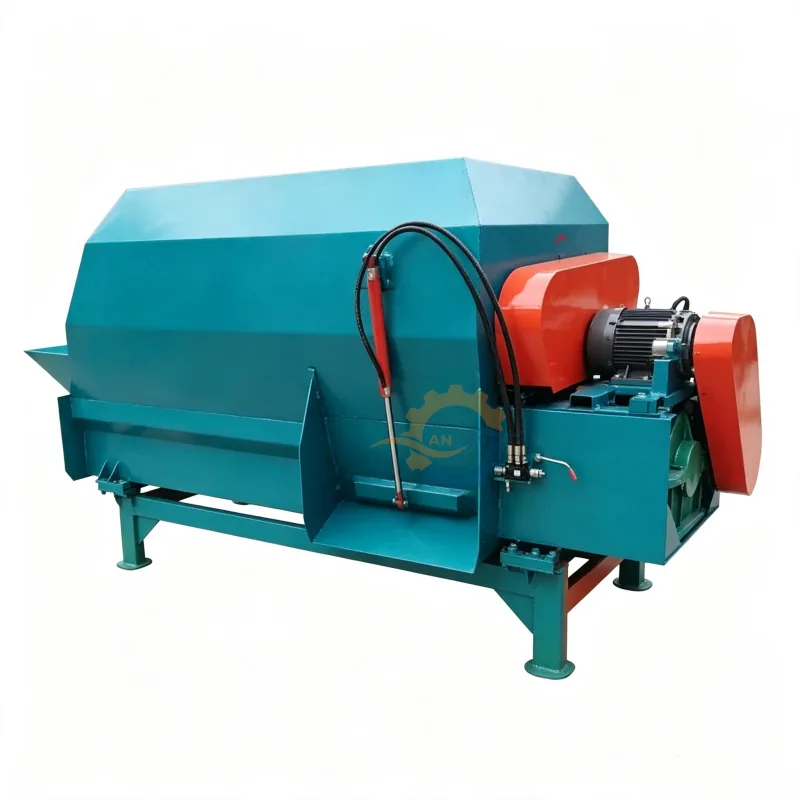

Full product gallery
Machine details, loading & working views
Select any image to open a larger view.
Factory to destination
Prepared for export, backed by our factory.
Packing, documentation and export preparation are coordinated before dispatch so your team receives the ordered machine ready for the job.
Export packing
Protective crating and organised loading for international shipment.
Factory production
Assembly and configuration support from the Anlan production base.
Product enquiry
Get a configuration and export quote.
Tell us where the machine will work, your target capacity and destination country. We will confirm the configuration and shipping details.
